Sony TA-S2 - SECTION 4 EXPLODED VIEWS; FRONT PANEL AND CASE SECTION

SECTION 4
EXPLODED VIEWS
NOTE:
e Items marked “ * ” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
¢ -XX, -X mean standardized parts, so they may
have some difference from the original one.
¢ The mechanical parts with no reference number
in the exploded views are not supplied.
_© Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
e Abbreviation
G_ : German model

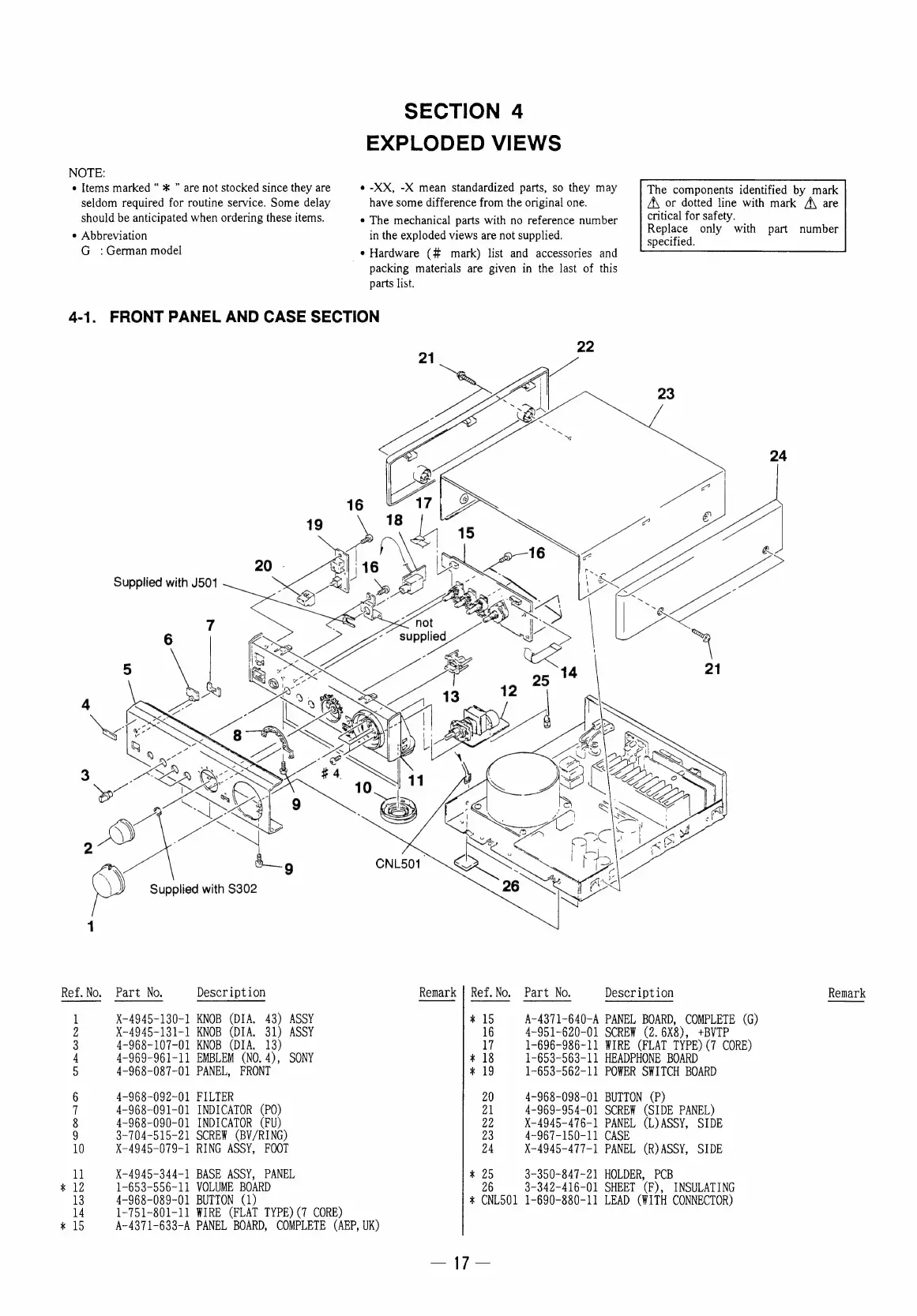

4-1. FRONT PANEL AND CASE SECTION
Supplied with J501
sunbed
#
3 «+12
oh,
Ref.No. Part No. Description Remark | Ref. No. Part No. Description Remark
1 X-4945-130-1 KNOB (DIA. 43) ASSY * 15 A-4371-640-A PANEL BOARD, COMPLETE (G)
2 X-4945-131-1 KNOB (DIA. 31) ASSY 16 4~951-620-01 SCREW (2. 6X8), +BVTP
3 4-968-107-01 KNOB (DIA. 13) 17 1-696-986-11 WIRE (FLAT TYPE) (7 CORE)
4 4-969-961-11 EMBLEM (NO. 4), SONY * 18 1-653-563-11 HEADPHONE BOARD
5 4-968-087-01 PANEL, FRONT * 19 1-653-562-11 POWER SWITCH BOARD
6 4-968-092-01 FILTER 20 4~968-098-01 BUTTON (P)
7 4-968-091-01 INDICATOR (PO) 21 4-969-954-01 SCREW (SIDE PANEL)
8 4-~96§8-090-01 INDICATOR (FU) 22 X-4945-476-1 PANEL (L)ASSY, SIDE
9 3~-704-515-21 SCREW (BY/RING) 23 4~967-150-11 CASE
10 X-4945-079-1 RING ASSY, FOOT 24 X-4945-477-1 PANEL (R)ASSY, SIDE
ll X-4945-344-] BASE ASSY, PANEL * 25 3-350-847-21 HOLDER, PCB
k 12 1-653-556-11 VOLUME BOARD 26 3-342-416-01 SHEET (F), INSULATING
13 4-968-089-01 BUTTON (1) * CNL501 1-690-880-11 LEAD (WITH CONNECTOR)
14 1-751-801-11 WIRE (FLAT TYPE) (7 CORE)
* 15 A~4371-633-A PANEL BOARD, COMPLETE (AEP, UK)
