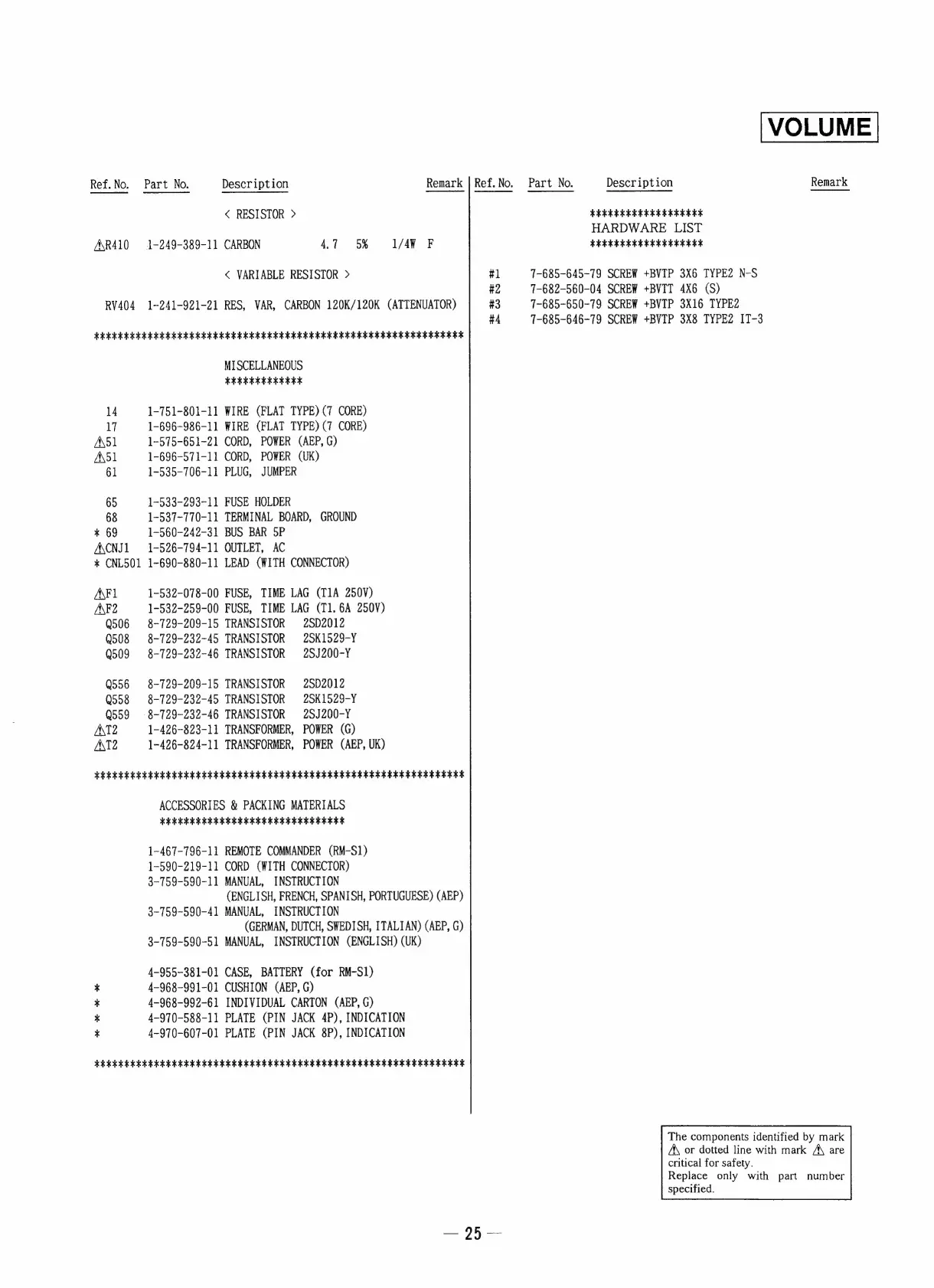

Sony TA-S2 - RESISTORS and VARIABLE RESISTORS; MISCELLANEOUS COMPONENTS; ACCESSORIES AND HARDWARE

Ref. No. Part No. Description Remark Ref. No.
< RESISTOR >
A\R410 =: 1-249-389-11 CARBON 4,7 5% 1/48 F
< VARIABLE RESISTOR > #1
RV404 1-241-921-21 RES, VAR, CARBON 120K/120K (ATTENUATOR) re
ptsterstetestetttttststiissiicestisersssces siete ti ece tt ites tts -
MISCELLANEOUS
St PSS S33 35% $ 5
14 1-751-801-11 WIRE (FLAT TYPE) (7 CORE)
17 1-696-986-11 WIRE (FLAT TYPE) (7 CORE)
AS 1-575-651-21 CORD, POWER (AEP, G)
A51 1-696-571-11 CORD, POWER (UK)
61 1-535-706-11 PLUG, JUMPER
65 1-533-293-11 FUSE HOLDER
68 1-537-770-11 TERMINAL BOARD, GROUND
* 69 1-560-242-31 BUS BAR 5P
A\CNJ1 —1-526-794-11 OUTLET, AC
* CNL501 1-690-880-11 LEAD (WITH CONNECTOR)
AMF1 1-532-078-00 FUSE, TIME LAG (T1A 250V)
AF2 1-532-259-00 FUSE, TIME LAG (T1.6A 250V)
Q506 8-729-209-15 TRANSISTOR 2SD2012
Q508 8-729-232-45 TRANSISTOR 2SK1529-Y
Q509 8-729-232-46 TRANSISTOR 2SJ200-Y
Q556 8-729-209-15 TRANSISTOR 2SD2012
Q558 8-729-232-45 TRANSISTOR 2SK1529-Y
Q559 = 8-729-232-46 TRANSISTOR 2SJ200-Y
ANT2 1-426-823-11 TRANSFORMER, POWER (G)
A\T2 1-426-824-11 TRANSFORMER, POWER (AEP, UK)
bsesttsstieres stress itest tess ssesssstts sists sists sles ess ss se SF
ACCESSORIES & PACKING MATERIALS
KKKKRKKARK EERE KERR ARERR ER EEE
1-467-796-11 REMOTE COMMANDER (RM-S1)
1-590-219-11 CORD (WITH CONNECTOR)
3-759-590-11 MANUAL, INSTRUCTION
(ENGLISH, FRENCH, SPANISH, PORTUGUESE) (AEP)
3-759-590-41 MANUAL, INSTRUCTION
(GERMAN, DUTCH, SWEDISH, ITALIAN) (AEP, G)
3-759-590-51 MANUAL, INSTRUCTION (ENGLISH) (UK)
4-955-381-01 CASE, BATTERY (for RM-S1)
4-968-991-01 CUSHION CAEP, G)
4-968-992-61 INDIVIDUAL CARTON (AEP, G)
4-970-588-11 PLATE (PIN JACK 4P), INDICATION
4~970-607-01 PLATE (PIN JACK 8P), INDICATION
HM MH HM MH
KKKKK KKK RE RA RAR KEK AKA K ER RAK RRR RRR ERR RRA AR RARE RARE EER ERR REE
Part No.
Description Remark
KKKKKAKKKKKAERARERE
HARDWARE LIST
EEKKKAKEKKKKKERK EER
7-685-645-79 SCREW +BVIP 3X6 TYPE2 N-S
7-682-560-04 SCREW +BVIT 4X6 (S)
7-685-650-79 SCREW +BVIP 3X16 TYPEZ
7-685-646-79 SCREW +BVIP 3X8 TYPEZ IT-3
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
