Sony TA-S2 - SECTION 5 ELECTRICAL PARTS LIST; Component Categories Overview

HEADPHONE

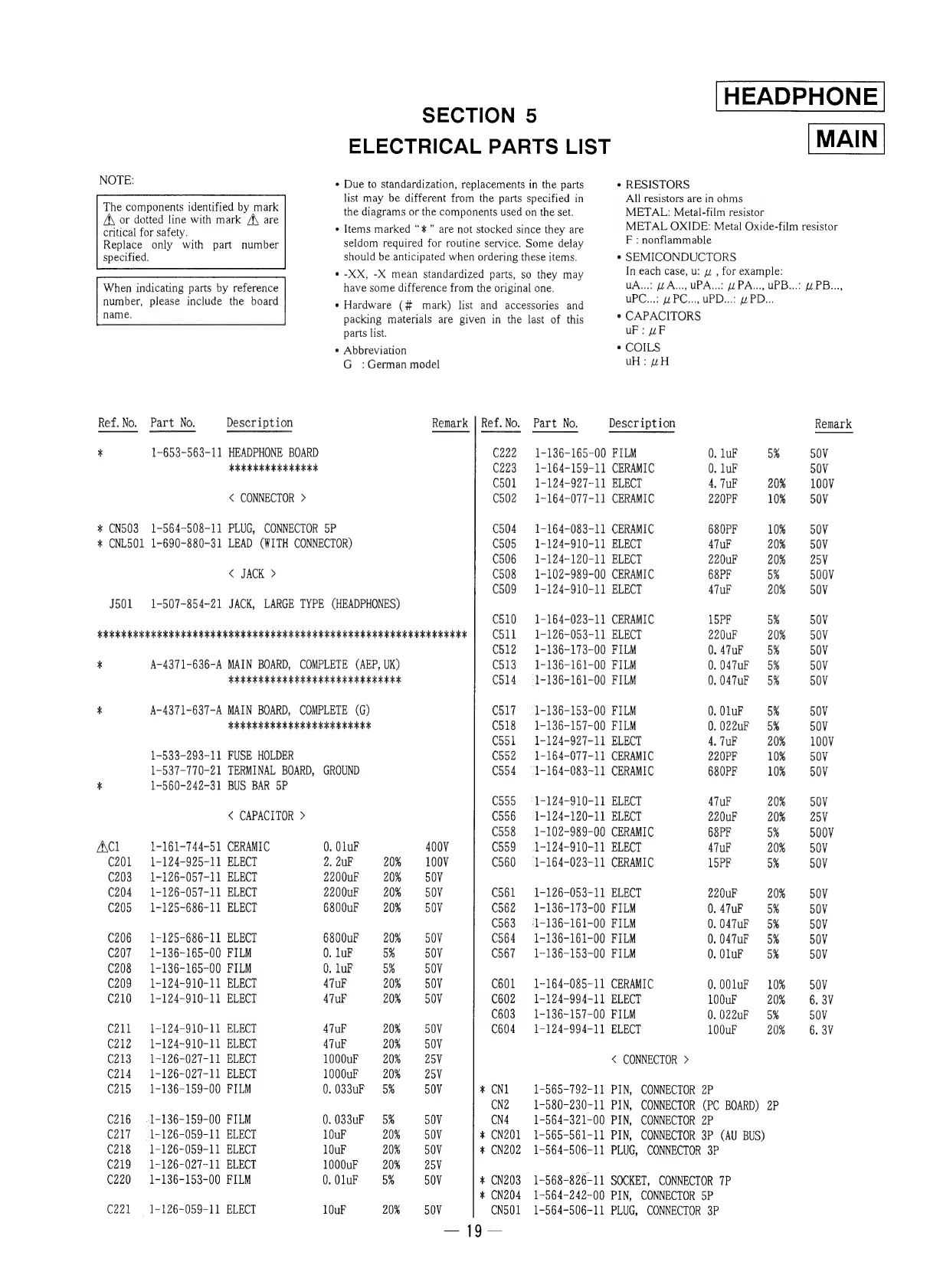

SECTION 5
ELECTRICAL PARTS LIST
NOTE: « Due to standardization, replacements in the parts * RESISTORS
; oe list may be different from the parts specified in All resistors are in ohms
ie £0 aaa ee ie . oe the diagrams or the components used on the set. METAL: Metal-film resistor
rane a ape: ra ° Items marked “*” are not stocked since they are METAL OXIDE: Metal Oxide-film resistor
Replace only with part number seldom required for routine service. Some delay F : nonflammable
specified. should be anticipated when ordering these items. « SEMICONDUCTORS
* -XX, -X mean standardized parts, so they may In each case, u: uw , for example:
When indicating parts by reference have some difference from the original one. UA... A..., UPA...: PA... UPB...: & PB...,
number, please include the board ¢ Hardware (# mark) list and accessories and Er Careless WED BED:
hame. packing materials are given in the last of this * CAPACITORS
parts list. uF: WF
* Abbreviation * COILS
G_ : German model UH: WH
Ref.No. Part No. Description Remark | Ref.No. Part No. Description Remark
* 1-653-563-11 HEADPHONE BOARD C222 =1-136-165-00 FILM 0. luF 5% 50V
PEC SeSeS Sees s ¢ s: C223. =1-164-159-11 CERAMIC 0. luF 50V
C501 1-124-927-11 ELECT 4, TuF 20% 100V
< CONNECTOR > C502 1-164-077-11 CERAMIC 220PF 10% 50V
* CN503 1-564-508-11 PLUG, CONNECTOR 5P C504 =1-164-083-11 CERAMIC 680PF 10% 50V
* CNL501 1-690-880-31 LEAD (WITH CONNECTOR) C505 1-124-910-11 ELECT 47uF 20% 50V
C506. 1=124=120-]1 ELECT 220uF 20% 25V
< JACK > C508 1-102-989-00 CERAMIC 68PF 5% 500V
C509 1~124-910-11 ELECT ATuF 20% 50V
J501 1-507-854-21 JACK, LARGE TYPE (HEADPHONES)
C510 1-164-023-11 CERAMIC 15PF 5% 50V
KKKKK KKK KKK KAKA RAK R RRR R AR RRR KARR ARR RAK REAR AREA KKK A KKK C511 1-126-053-11 ELECT 220uF 20% 50V
C512 = 1-136~173-00 FILM 0. 47uF 5% 50V
k A-4371-636-A MAIN BOARD, COMPLETE (AEP, UK) C513. 1-136-161-00 FILM 0.047uF 5% 50V
PES CeCeCeLeeece eee eee ee eee ssf C514 —- 1-136-161-00 FILM 0.047uF 5% 50V
k A-4371-637-A MAIN BOARD, COMPLETE (G) C517 ~—- 1-136-153-00 FILM 0. OluF 5% 50V
KXKRKKKAKKK KAKA A EKAKKKKKK C518 1-136-157-00 FILM 0.022uF 5% 50V
C551 = =1-124-927-11 ELECT 4, TuF 20% 100V
1-533-293-11 FUSE HOLDER C552 = 1-164-077-11 CERAMIC 220PF 10% 50V
1-537-770-21 TERMINAL BOARD, GROUND C554 =: 1-164-083-11 CERAMIC 680PF 10% 50V
k 1-560-242-31 BUS BAR 5P
C555 = 1-124-910-11 ELECT 4TuF 20% 50V
< CAPACITOR > C556 =: 1-124-120-11 ELECT 220uF 20% 25V
C558 ~=—- 1-102-989-00 CERAMIC 68PF 5% 500V
ACI 1-161-744-51 CERAMIC 0. OluF 400V C559 =: 1-124-910-11 ELECT ATuF 20% 50V
C201 1-124-925-11 ELECT 2. 2UE 20% 100V C560 =: 1-164-023-11 CERAMIC TSEF o% 50V
C203. = 1-126-057-11 ELECT 2200uF 20% 50V
C204 = 1-126-057-11 ELECT 2200uF 20% 50V C561 1-126-053-11 ELECT 220uF 20% 50V
C205 1-125~686-11 ELECT 6800uF 20% 50V C562 1-136-173-00 FILM 0. 47uF 5% o0V
C563 =: 1-1386-161-00 FILM 0.047uF 5% 50V
C206 = 1-125-686-11 ELECT 6800uF 20% o0V C564 1-136-161-00 FILM 0.047uF 5% 50V
C207 1-136-165-00 FILM 0. luF 5% 50V C567 1-136-153-00 FILM 0. QluF 5% 50V
C208 1-136-165-00 FILM 0. luF 5% 50V
C209 = 1-124-910-11 ELECT 47uF 20% 50V C601 1-164-085-11 CERAMIC 0.00luF 10% 50V
C210 1-124-910-11 ELECT ATuF 20% 50V C602 1-124-994-11 ELECT 100uF 20% 6. 3V
C603 =1-136-157-00 FILM 0.022uF 5% 50V
C211 1-124-910-11 ELECT 4TuF 20% 50V C604 1-124-994-11 ELECT 100uF 20% 6. 3V
C212 =1-124~910-11 ELECT 47TuF 20% 50V
C213: 1-126-027-11 ELECT 1000uF 20% 25V < CONNECTOR >
C214 =1-126-027-11 ELECT 1000uF 20% Z5V
C215 =1-136-159-00 FILM 0.033uF 5% 50V * CN1 1-565-792-11 PIN, CONNECTOR 2P
CN2 1-580-230-11 PIN, CONNECTOR (PC BOARD) 2P
C216 =. 1-136-159-00 FILM 0.033uF 5% 50V CN4 1-564-321-00 PIN, CONNECTOR 2P
C217. =: 1-126-059-11 ELECT 10uF 20% 50V * CNZ201 1-565-561-11 PIN, CONNECTOR 3P (AU BUS)
C218 1-126-059-11 ELECT 10uF 20% 50V * (NZ02 1-564-506-11 PLUG, CONNECTOR 3P
C219 =1-126-027-11 ELECT 1000uF 20% 25V ;
C220 ~=1-136-153-00 FILM 0. OluF 5% 50V * (N203 1-568-826-11 SOCKET, CONNECTOR 7P
* CN204 1-564-242-00 PIN, CONNECTOR 5P
C221 = 1-126-059-11 ELECT 10uF 20% 50V CN501 1-564-506-11 PLUG, CONNECTOR 3P
