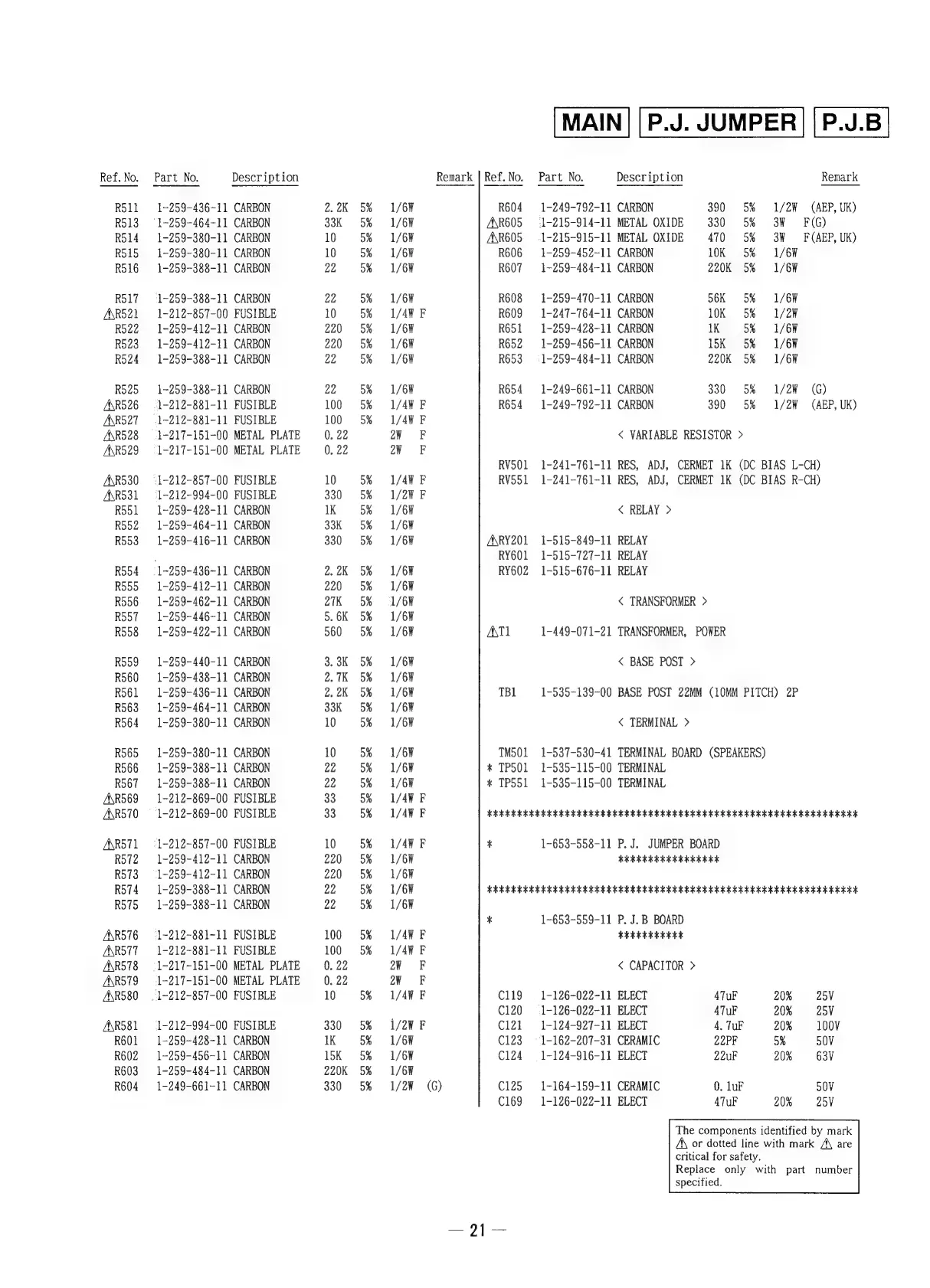

Sony TA-S2 - VARIABLE RESISTORS, RELAYS, and TRANSFORMERS; BASE POSTS and TERMINALS; CAPACITORS

Ref.No. Part No. Description Remark | Ref.No. Part No. Description Remark
R511 =1-259-436-11 CARBON 2.2K 5% 1/6¥ R604 1-249-792-11 CARBON 390 5% 1/2 (AEP, UK)
R513. = 1-259-464-11 CARBON 33K 5% 1/68 A\R605 =: 1-215-914-11 METAL OXIDE 330 5% 3W FG)
R514 1-259-380-11 CARBON 10 5% = «1/68 A\R605 =: 1-215-915-11 METAL OXIDE 470 5% 38 FCAEP, UK)
R515 1-259-380-11 CARBON 10 5% ~=«1/68 R606 1-259-452-11 CARBON 10K 5% 1/6F
R516 =1-259-388-11 CARBON 22 5% ~=—«1/68 R607 1-259-484-11 CARBON 220K 5% 1/68
R517. =: 1-259-388-11 CARBON 22 5% = /68 R608 1-259-470-11 CARBON 56K 5% 1/6F
A\R521 = -1-212-857-00 FUSIBLE 10 5% I1/4¥ F R609 1-247-764-11 CARBON 10K 5% 1/2¥
R522 1-259-412-11 CARBON 220 5% 1/68 R651 1-259-428-11 CARBON 1K 5% =1/6F
R523 1-259-412-11 CARBON 220 5% 1/6W R652 1-259-456-11 CARBON 15K 5% = 1/6F
R524 1-259-388-11 CARBON 22 5% 1/68 R653 = 1-259-484-11 CARBON 220K 5% 41/68
R525 1-259-388-11 CARBON 22 5% = /6W R654 1-249-661-11 CARBON 330 5% 1/2W (G)
AXR526 =: 1-212-881-11 FUSIBLE 100 «5% = =1/4¥ F R654 1-249-792-11 CARBON 390 5% 1/2W (AEP, UK)
A\R527 =: 1-212-881-11 FUSIBLE 100 «5% 1/44 F
A\R528 =: 1-217-151-00 METAL PLATE 0. 22 ay F < VARIABLE RESISTOR >
A\R529 =: 1-217-151-00 METAL PLATE 0. 22 2W.s*F
RV501 1-241-761-11 RES, ADJ, CERMET 1K (DC BIAS L-CH)
A\R530 =: 1-212-857-00 FUSIBLE 10 5% 1/4 F RV551 1-241-761-11 RES, ADJ, CERMET 1K (DC BIAS R-CH)
A\R531 =: 1-212-994-00 FUSIBLE 330 5% 1/2H F
R551 =1-259-428-11 CARBON 1K 5% ~=—s«1/6W « RELAY >
R552 = 1-259-464-11 CARBON 33K 5% 1/68
R553 = 1-259-416-11 CARBON 330 5% 1/6¥ A\RY201 1-515-849-11 RELAY
RY601 1-515-727-11 RELAY
R554 = 1-259-436-11 CARBON 2.2K 5% 1/6¥ RY602 1-515-676-11 RELAY
R555 1-259-412-11 CARBON 220 5% 1/6W
R556 1-259-462-11 CARBON 27K 865% = /68 < TRANSFORMER >
R557 ~=1-259-446~11 CARBON 5.6K 5% 1/68
R558 1-259-422-11 CARBON 560 5% 1/68 AT1 1-449-071-21 TRANSFORMER, POWER
R559 =1-259-440-11 CARBON 3.3K 5% 1/64 < BASE POST >
R560 1-259-438-11 CARBON 2.7K 5% 1/64
R561 1-259-436-11 CARBON 2.2K 5% 41/68 TBl 1-535-139-00 BASE POST 22MM (10MM PITCH) 2P
R563 1-259-464-11 CARBON 33K 5% 1/68
R564 1-259-380~11 CARBON 10 5% 1/68 <« TERMINAL >
R565 1-259-380-11 CARBON 10 5% 1/6¥ TM501 1-537-530-41 TERMINAL BOARD (SPEAKERS)
R566 1-259-388-11 CARBON 22 5% =1/6F * TP501 1-535-115-00 TERMINAL
R567 =1-259-388~-11 CARBON 22 5% 1/68 * TP551 1-535-115-00 TERMINAL
A\R569 =1-212-869-00 FUSIBLE 33 5% 1/44 F
A\R570 =: 1-212-869-00 FUSIBLE 33 5% 1/4W F pe ees etetetseteetess testes ss ess teeseteseesssteseteseseseses ss 3
A\R571 ~~: 1-212-857-00 FUSIBLE 10 5% ©60L/4W EF * 1-653-558-11 P. J. JUMPER BOARD
R572 =1-259-412-11 CARBON 220 5% 1/68 HHKKARAKERKERAR ER
R573. =: 1-259-412-11 CARBON 220 5% = 1/6¥
R574 = 1-259-388-11 CARBON 22 5% 1/64 tS ese Stsesesetesese sets stsstssssess cesses setts ests sesesserees
R575 = 1-259-388-11 CARBON 22 5% 1/68
x 1-653-559-11 P. J.B BOARD
A\R576 =: 1-212-881-11 FUSIBLE 100 5% 1/4W F HERKEREAERE
A\R577.~—s: 1-212-881-11 FUSIBLE 100 5% 1/4¥ F
A\R578 = 1-217-151-00 METAL PLATE 0. 22 2¥s*#é < CAPACITOR >
A\R579 =: 1-217-151-00 METAL PLATE 0. 22 2¥sU*#é
A\R580 =: 1-212-857-00 FUSIBLE 10 5% 1/49 F C119 = 1-126-022-11 ELECT ATuF 20% 25V
C120 =. 1-126-022-11 ELECT 4TuF 20% 25V
A\R581 =: 1-212-994-00 FUSIBLE 330 5% 1/2 F C121) = 1-124-927-11 ELECT 4, TuF 20% 100V
R601 1-259-428-11 CARBON 1K 5% 1/68 C123 =: 1-162-207-31 CERAMIC 22PF 5% 50V
R602 1-259-456-11 CARBON 15K 65% = 1/68 C124 = 1-124-916-11 ELECT 22uF 20% 63V
R603 1-259-484-11 CARBON 220K 5% 1/68
R604 1-249-661-11 CARBON 330 5% 1/24 (G) C125 ~=1-164-159-11 CERAMIC 0. luF 50V
C169 = =1-126-022-11 ELECT 4TuF 20% 25V
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
