Sony TA-S3 - Control Section PWB

TA-S3
1414
D701 B-11
D702 C-10
D703 C-8
D704 B-8
D705 B-7
D706 B-6
D781 A-6
Q701 C-6
Q702 C-6

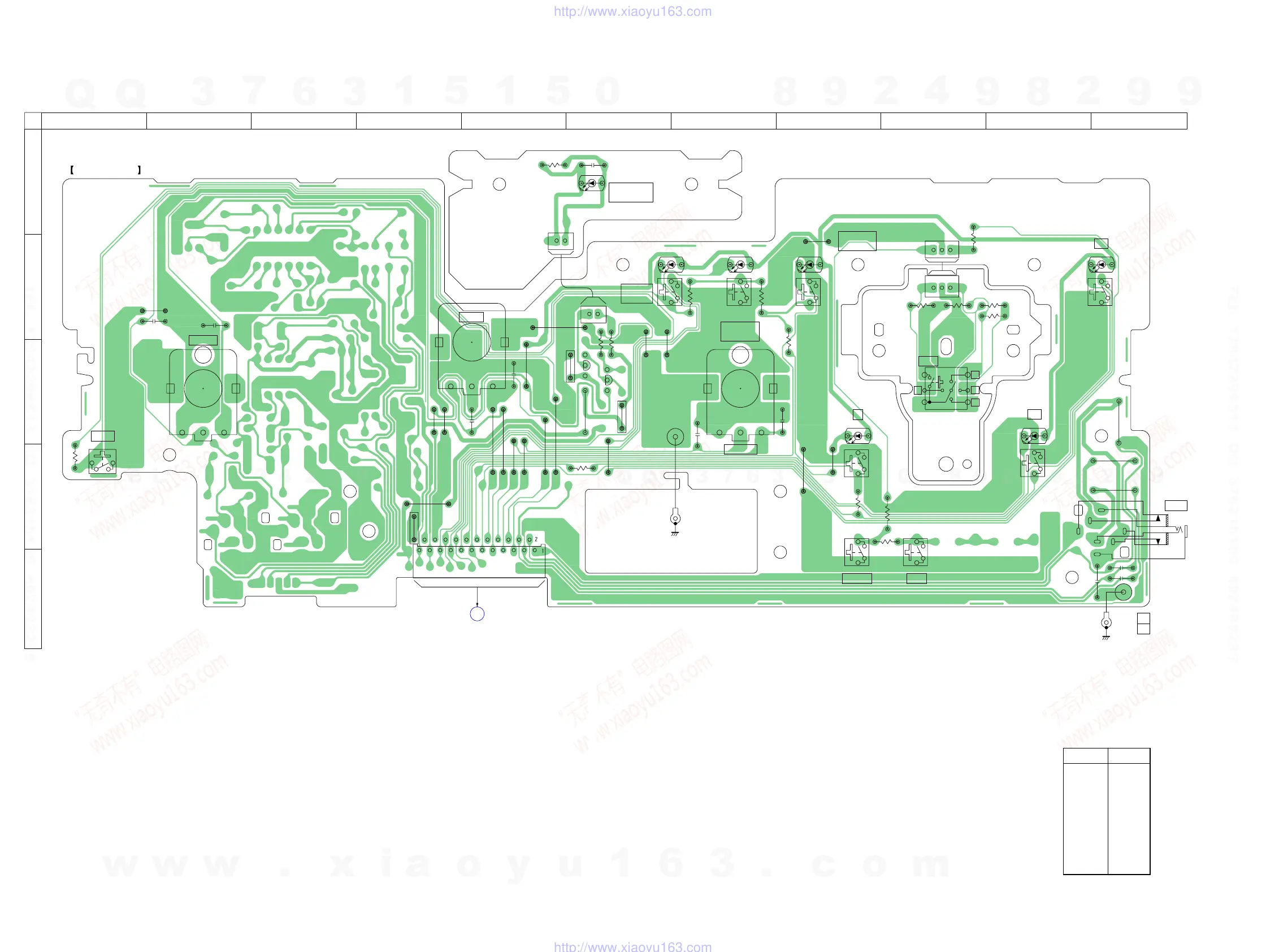

5-5. PRINTED WIRING BOARDS – CONTROL Section – • See page 10 for Circuit Boards Location.
R713
S711
S712
S713
S718
S719
S714
S705
R712
S715
D706
D701
S710
D705
CN700
NO780
NO711
JW522
R710
C710
Q701
R707
R708
FB704
C712
C711
C705
CLP702
JW707
R711
C702
C701
C703
C704
C706
Q702
JW509
23
22
NO710
R715
R709
JW517
R714
R721
R716
R717
R718R719
D704
JW521
R720
JW520
JW524
JW512
JW514
JW515
JW511
FB708
FB705
FB706
D702
JW518
JW507
JW506
JW705
S723
JW513
JW704
JW501
JW525
D703
JW519
JW516
CLP703
D781
R724
NO781
C781
PANEL BOARD
E
21
E
FUNCTION
DIGITAL
S703
ROTARY ENCODER
13
VOLUME
S702
ROTARY ENCODER
13
FILE SELECT
EQ
ENTER
SUR
v
V
b
B
EQ ON/OFF SET UP
S701
ROTARY ENCODER
13
D
FRONT AMP
BOARD
CN104
(CHASSIS)
MOVIE MODE
B
D705, S713
D706, S714
MUSIC MODE
A
D704, S712
D703, S711
13
13
D702, S710
I/1
D701, S705
1-680-754-
11
(21)
(CHASSIS)
PHONES
J703
21
MULTI CHANNEL
DECODING
A
B
C
D
E
1 2 3 4 5 6 7 8 9 10 11
2CH/MULTI
C
• Semiconductor
Location
Ref. No. Location
(Page 11)
