Sony TC-WE525 Service Manual

– 4 –
SECTION 1
GENERAL

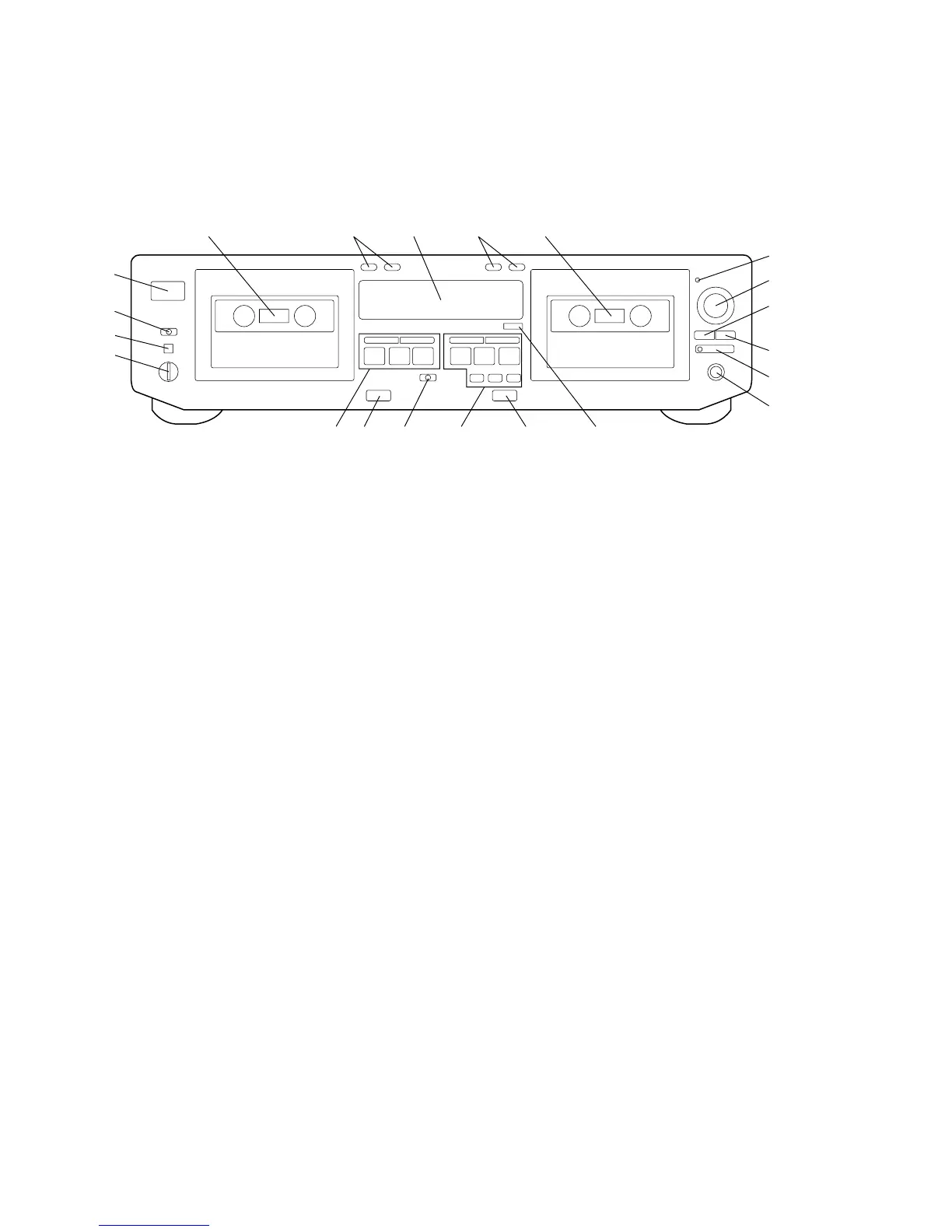

1-1. LOCATION OF CONTROLS
1. 1/u (Power) button (US, Canadian)
U (Power) button (EXCEPT US, Canadian)
2. DIRECTION MODE switch
3. PITCH CONTROL (Ø ON/ø OFF) switch (TC-WE525)
4. PITCH CONTROL knob (TC-WE525)
5. Cassette holder (Deck A)
6. COUNTER A buttons (Deck A)
RESET button
MEMORY button
7. Display window
8. COUNTER B buttons (Deck B)
RESET button
MEMORY button
9. Cassette holder (Deck B)
10. Tape operation buttons (Deck A)
0 (REW) button
) (FF) button
p CLEAR (Stop) button
ª (Reverse play) button
· (Foward play) button
11. § (Eject) button (Deck A)
12. DOLBY NR switch
13. Tape operation buttons (Deck B)
0 (REW) button
) (FF) button
p (Stop) button
ª (Reverse play) button
· (Foward play) button
P PAUSE button
R REC MUTING button
r REC button
14. § (Eject) button (Deck B)
15. START (DECK B P) button
HIGH/NORMAL, DUBBING AnB button
16. PHONES jack (TC-WE425/WE525)
17. SYNCHRO button and indicator (TC-WE425/WE525)
18. ARL button
19. FADER button
20. REC LEVEL knob
21. AUTO indicator
1
2
3
4
567
98
21
20
19
18
17
16
10 1312 1411 15
