– 7 –

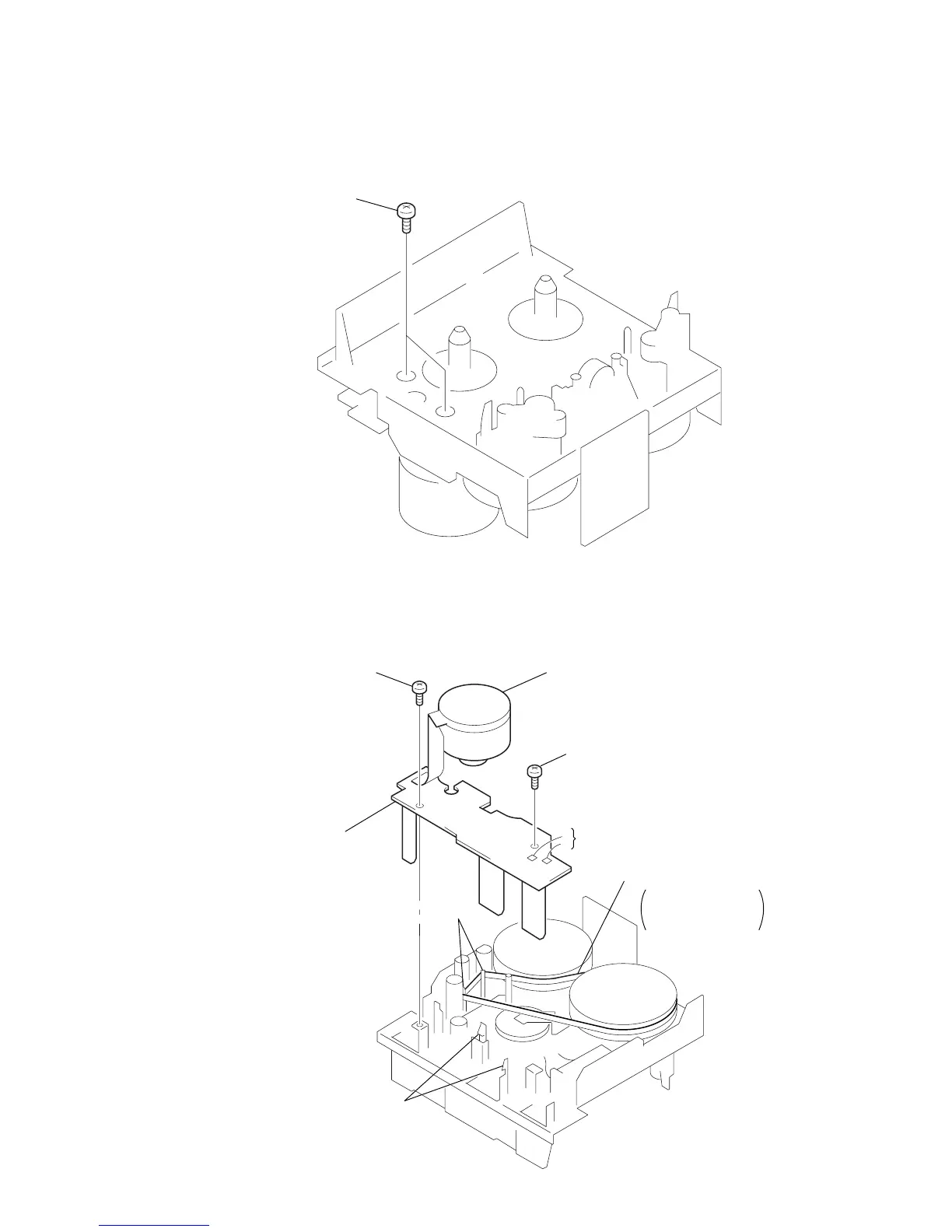

2-5.
LEAF SW (A) BO
ARD (DECK A),
LEAF SW (B) BO
ARD (DECK B)
1
PS 2.6x6
2
capstan motor assy
8
belt (capstan)
3
wires
5
BVTT 2x4
4
BVTT 2x4
6
claws
claws
7
LEAF SW (A) board
(Deck A)
LEAF SW (B) board
(Deck B)
When installing,
pull the belt (capstan)
put around claws.
a
a
b
b
6
8
Table of Contents
Default Chapter
3
Table of Contents
3
1 General
4
Location of Controls
4
2 Disassembly
5
Case
5
Front Panel Assy
5
Cassette Lid Assy (Deck A/B)
6
Mechanism Deck Assy (Deck A/B)
6
Leaf SW (A) Board (Deck A), Leaf SW (B) Board (Deck B)
7
Pinch Lever (FWD)/(REV) Assy (Deck A/B)
8
Flywheel (FWD)/(REV) Assy (Deck A/B)
8
Mechanical Block Assy (Deck A/B)
9
Head Relay (PB) Board (Deck A), Head Relay (REC) Board (Deck B)
9
3 Mechanical Adjustments
10
4 Electrical Adjustments
10
5 Diagrams
14
IC Pin Description
14
Circuit Boards Location
16
Printed Wiring Boards -Main Section
17
Schematic Diagram -Main Section (1/3)
18
Schematic Diagram -Main Section (2/3)
19
Schematic Diagram -Main Section (3/3)
20
Printed Wiring Boards -Panel Section
21
Schematic Diagram -Panel Section
22
Printed Wiring Boards -Power Section
23
Schematic Diagram -Power Section
24
Printed Wiring Board -Deck a Section
25
Schematic Diagram -Deck a Section
25
Printed Wiring Board -Deck B Section
26
Schematic Diagram -Deck B Section
26
6 Exploded Views
27
Case Section
27
Chassis Section
28
Cassette Holder Section
29
Front Panel Section
30
Tape Mechanism Section
31
7 Electrical Parts List
32
