Sony TC-WE525 Service Manual

– 9 –

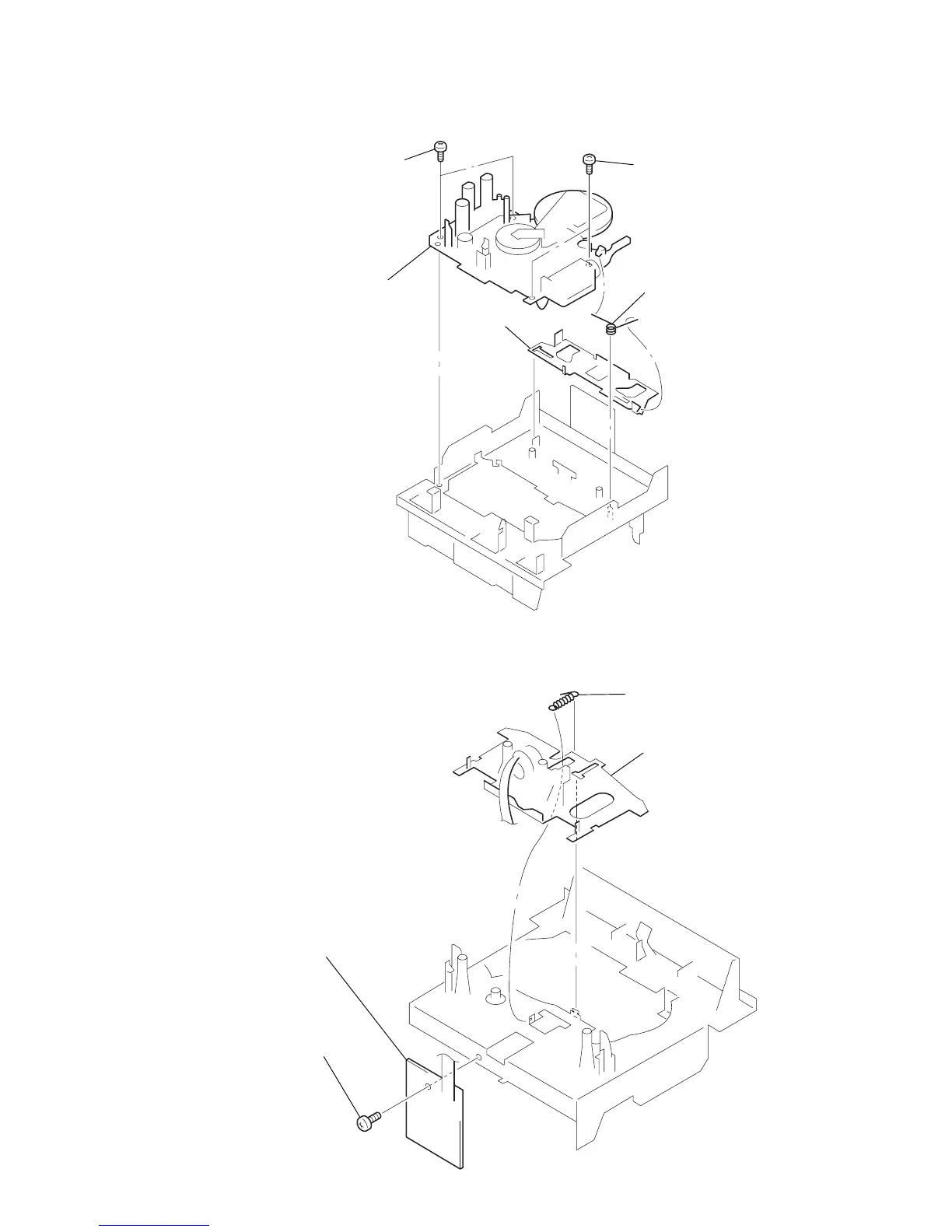

2-8. MECHANICAL BLOCK ASSY (DECK A/B)
2-9. HEAD RELAY (PB) BOARD (DECK A), HEAD RELAY (REC) BOARD (DECK B)
2 BVTT 2x3
1 torsion spring
5 reverse slider
4 mechanical block assy
3 BVTT 2x3
3 tension spring (HEAD
)
2 HEAD RELAY (PB) board
(Deck A)
HEAD RELAY (REC) board
(Deck B)
1 BVTT 2x4
4 head deck assy
