– 8 –

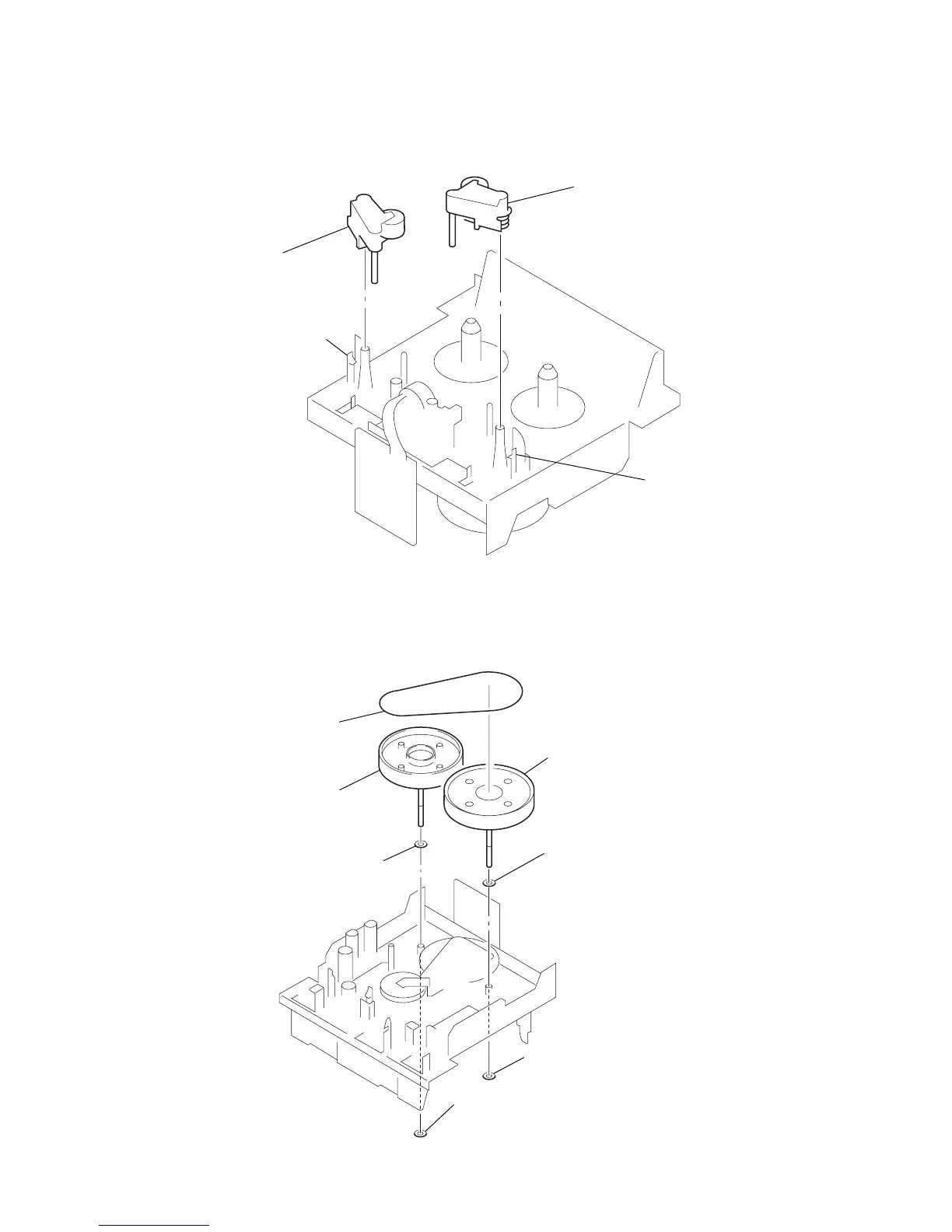

2-6.
PINCH LEVER (FWD) / (REV) ASSY (DECK A/B)
2-7.
FL
YWHEEL (FWD) / (REV) ASSY (DECK A/B)
4
pinch lever (FWD) assy
2
pinch lever (REV) assy
1
claw
3
claw
1
belt (FR2)
3
flywheel (FWD) ass
y
6
flywheel (REV) assy
4
washer
7
washer
2
stopper washer
5
stopper washer
7
9
