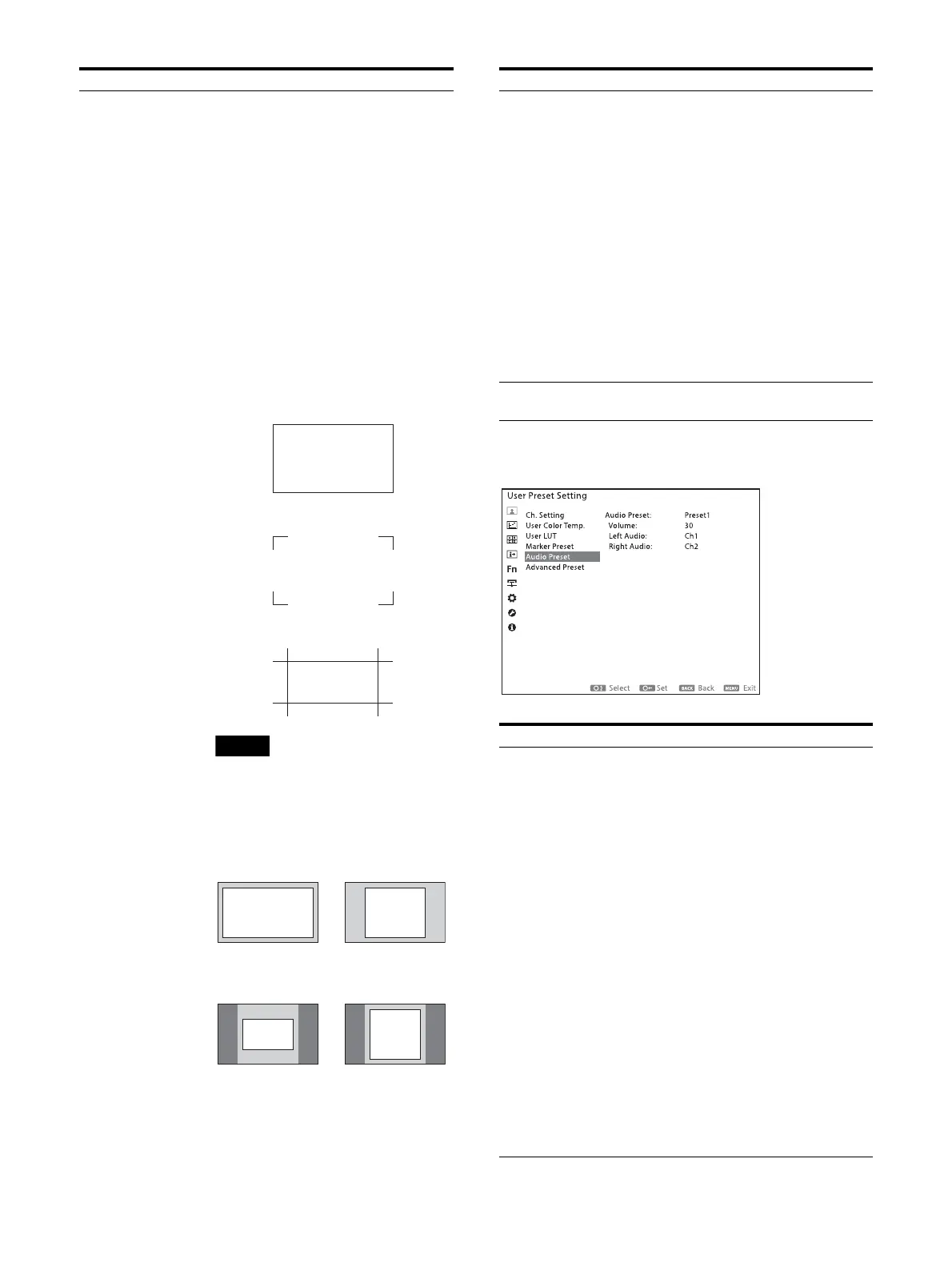

27
Audio Preset
V Position: Sets the vertical position
of the marker at the top left
corner of the image display
area as the starting point when
“Flexible Area” is selected in
“Area Mode.” You can set to a
position from 0 to 2159.
Width: Sets the width of the marker
when “Flexible Area” is selected
in “Area Mode.” You can set to a
position from 1 to 4096.
Height: Sets the height of the
marker when “Flexible Area” is
selected in “Area Mode.” You
can set to a position from 1 to
2160.
Shape: Sets the shape of area
marker 1/2.
Shape A
Shape B
Shape C
When “Safe Area” is selected in “Area
Mode,” the size of the area differs
depending on the “Aspect Mode”
setting.
Submenu Setting
16:9 Video
display
80%
Aspect Mode is
set to 16:9
80%
Aspect Mode is
set to 4:3
4:3 Video
display
80%
Aspect Mode is
set to 16:9
80%
Aspect Mode is
set to 4:3
Thickness: Sets the thickness of the
line of the area marker 1/2. You
can set a thickness between “1
dot” and “5 dots.”
Color: Sets the color of the area
marker 1/2.
White (white)
Red (red)
Green (green)
Blue (blue)
Yellow (yellow)
Cyan (cyan)
Magenta (magenta)
Intensity: Sets the luminance of the
area marker 1/2.
High (bright)
Low (dark)
Copy From Copy another marker’s preset data to
the selected marker preset.
Submenu Setting
Audio Preset Select the audio preset data to be
configured.
Volume Adjusts the volume of the selected
audio preset.
Left Audio Sets the audio channel when SDI
signal is input.
Select from channels “CH1” to “CH16.”
You cannot select when HDMI is input
as “CH1” is selected for Left Audio.
Right Audio Sets the audio channel when SDI
signal is input.
Select from channels “CH1” to “CH16.”
When a channel from “CH1” to “CH8” is
selected in “Left Audio,” you cannot
select a channel other than a channel
from “CH1” to “CH8” (e.g.: CH9) in
“Right Audio.”
When a channel from “CH9” to “CH16”
is selected in “Left Audio,” you cannot
select a channel other than a channel
from “CH9” to “CH16” (e.g.: CH1) in
“Right Audio.”
You cannot select when HDMI is input
as “CH2” is selected for Right Audio.
Submenu Setting
To Next Page
