Sony TRINITRON CPD-520GS - 6 Exploded Views; Chassis

CPD-520GS/520GST/520GST9
• Items marked " * " are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
• Items with no part number and no
description are not stocked because they
are seldom required for routine service.
• The construction parts of an assembled
part are indicated with a collation number
in the remark column.

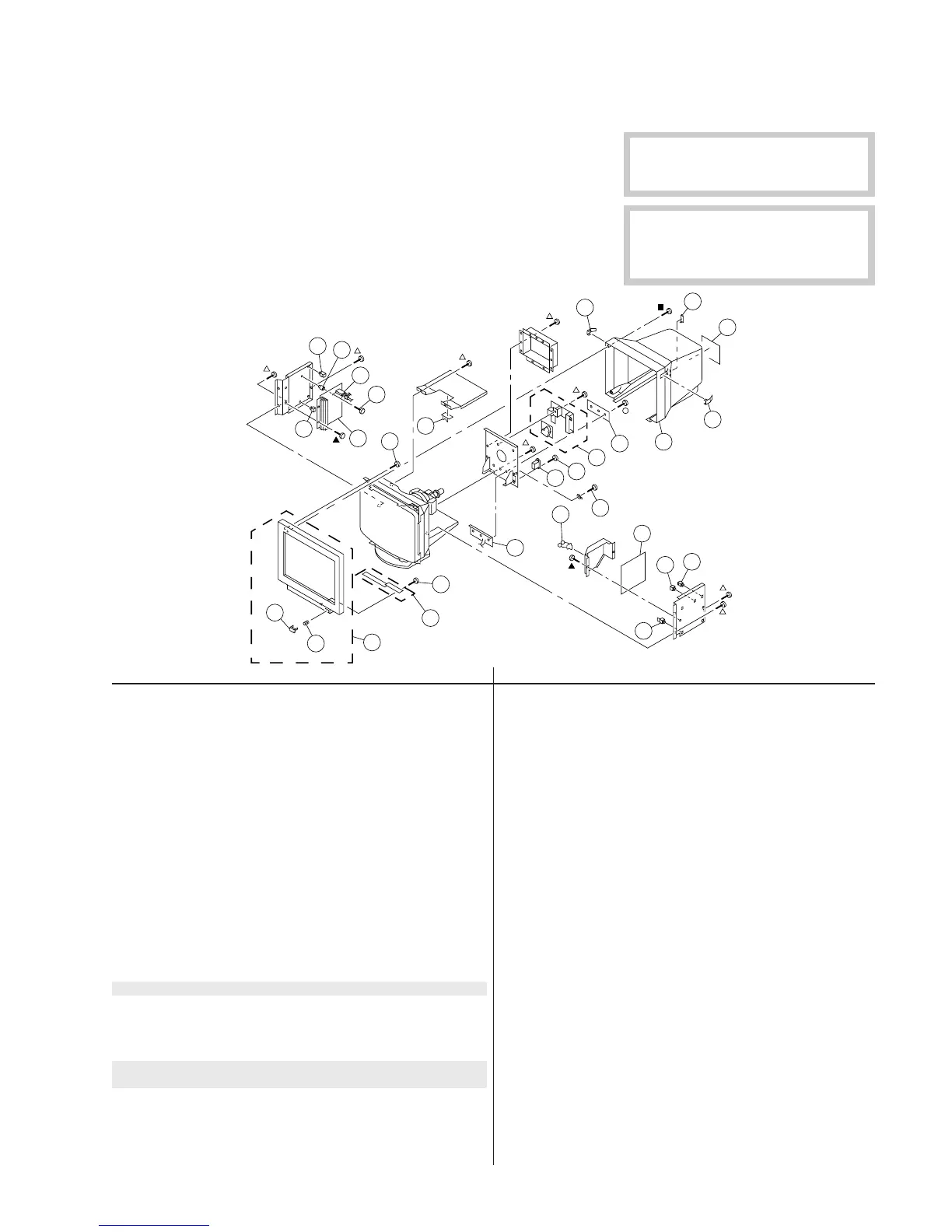

6-1. CHASSIS
4 7-685-647-79 +BVTP 3X10
p 7-685-663-71 +BVTP 4X16
® 7-685-872-09 +BVTT 3X8
¢ 7-685-881-09 +BVTT 4X8
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
6-1
SECTION 6
EXPLODED VIEWS
The components identified by shading
and mark
¡ are critical for safety.
Replace only with part number specified.
Les composants identifiés par un tramé
et une marque
¡ sont critiques pour la
sécurité. Ne les remplacer que par une
pièce portant le numéro spécifié.
10
11
21
1
12
22
2
13
23
3
14
24
15
25
16
6
17
7
18
26
19
9
20
4
17
18
8
23
27
1 X-4035-847-3 BEZEL ASSY
[U/C/AEP for Japan-made set] 2,3
1 X-4036-008-2 BEZEL ASSY
[U/C for USA-made set] 2,3
1 X-4200-450-1 BEZEL ASSY
[UK/AEP for UK-made set] 2,3
2 4-065-356-02 BUTTON, POWER
[U/C/AEP for Japan-made set]
2 4-066-697-01 BUTTON, POWER
[U/C for USA-made set]
2 4-066-700-11 BUTTON, POWER
[UK/AEP for UK-made set]
3 4-061-932-01 SPRING, COMPRESSION
[except U/C for USA-made set]
3 4-061-932-11 SPRING, COMPRESSION
[U/C for USA-made set]
4 * 8-933-332-00 H5 AND H6 BOARDS, COMPLETE
6 4-029-432-01 SCREW (3X12), (+) BVWHTP
7 1-694-461-11 TERMINAL BOARD ASSY, I/O
8 4-389-025-01 SCREW (M4) (EXT TOOTH WASHER)
9 ! 1-251-382-12 INLET, AC 3P (WITH NOISE FILTER)
10 4-052-345-01 SCREW, (3X8) (+K), TAPPING
11 4-060-368-12 SHEET, CONNECTOR
12 * 8-933-334-00 A2 BOARD, COMPLETE
13 * 8-933-330-00 D BOARD, COMPLETE 14
14 ! X-4035-170-1 TRANSFORMER ASSY, FLYBACK
(NX-4142//J1D4)
15 4-062-115-01 SCREW +P 3.5X20 TYPE2
16 * 4-060-359-01 HOLDER, PRINTED CIRCUIT BOARD
17 * 3-701-903-11 HOLDER, PRINTED CIRCUIT BOARD
18 * 4-382-848-01 HOLDER, PRINTED CIRCUIT BOARD
19 * 3-703-141-00 HOLDER, PRINTED CIRCUIT BOARD
20 * 8-933-333-00 G BOARD, COMPLETE
21 4-365-808-01 SCREW (5), TAPPING
[except UK/AEP for UK-made set]
21 4-203-648-01 SCREW (5), SELF TAPPING
[UK/AEP for UK-made set]
22 4-061-604-01 CABINET [U/C/AEP for Japan-made set]
22 4-064-123-01 CABINET [U/C for USA-made set]
22 4-204-317-31 CABINET [UK/AEP for UK-made set]
23 4-061-605-01 COVER, SCREW
[U/C/AEP for Japan-made set]
23 4-064-132-01 COVER, SCREW [U/C for USA-made set]
23 4-204-327-31 COVER, SCREW
[UK/AEP for UK-made set]
24 4-060-358-21 COVER, ECS
[U/C/AEP for Japan-made set]
24 4-061-155-11 COVER, ECS [U/C for USA-made set]
24 4-204-328-31 COVER, ECS [UK/AEP for UK-made set]
25 * 4-065-365-02 LABEL, INFORMATION
[U/C for Japan-made set]
25 * 4-065-365-11 LABEL, INFORMATION
[AEP for Japan-made set]
25 * 4-066-762-01 LABEL, INFORMATION
[U/C for USA-made set]
25 * 4-066-763-01 LABEL, INFORMATION
[UK/AEP for UK-made set]
25 4-070-100-01 LABEL, INFORMATION
[520GST9 AEP for Japan-made set]
25 * 4-204-843-01 LABEL, INFORMATION
[520GST9 AEP for UK-made set]
26 * 4-063-711-01 SUPPORT, HV CABLE
27 2-132-434-01 CLIP, WIRE
