CPD-520GS/520GST/520GST9

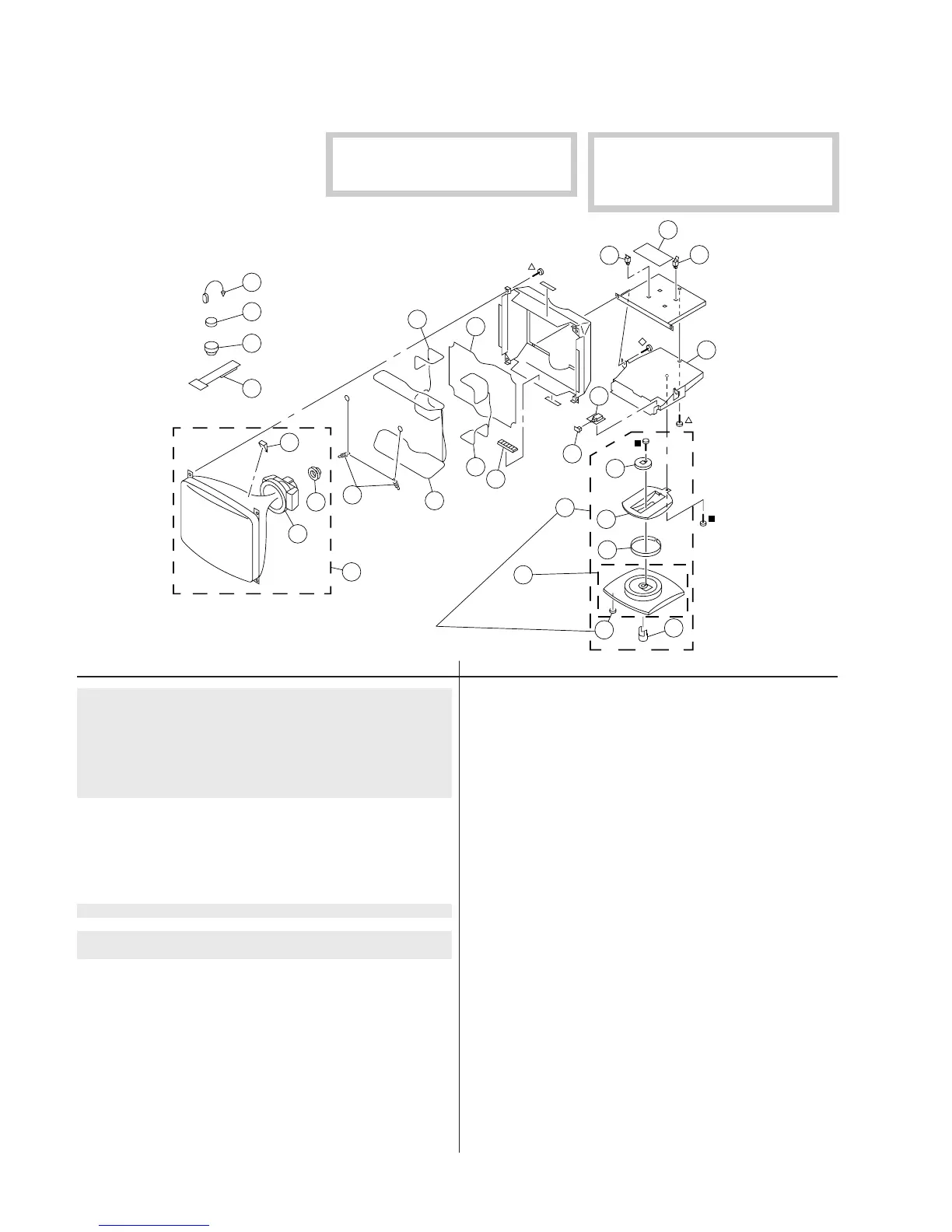

6-2. PICTURE TUBE
p 7-685-663-71 +BVTP 4X16
¢ 7-685-881-09 +BVTT 4X8
7-685-883-01 +BVTT 4X12
π
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
6-2
The components identified by shading
and mark
¡ are critical for safety.
Replace only with part number specified.
Les composants identifiés par un tramé
et une marque
¡ sont critiques pour la
sécurité. Ne les remplacer que par une
pièce portant le numéro spécifié.
51 ! 8-738-806-61 ITC ASSY (21SRG-R5) 52-54
52 ! 1-452-932-21 NECK ASSEMBLY (NA-2916)
53 ! 1-451-479-11 DEFRECTION YOKE (Y21SRL2-T)
[U/C/AEP for Japan-made set]
53 ! 8-451-493-41 DEFRECTION YOKE (Y21SRL-M4)
[UK/AEP for UK-made set]
53 ! 8-451-493-71 DEFRECTION YOKE (Y21SRL-X)
[U/C for USA-made set]
54 4-050-492-01 SPACER, DY
[except U/C for USA-made set]
54 4-040-897-01 SPACER, DY [U/C for USA-made set]
55 * 4-047-316-01 SPRING, EXTENSION
[except U/C for USA-made set]
55 * 4-061-573-01 SPRING, TENSION
[U/C for USA-made set]
56 ! 1-416-437-31 COIL, DEMAGNETIC
57 ! 1-416-140-12 COIL, LANDING CORRECTION
58 ! 1-416-438-31 COIL, LANDING CORRECTION
59 4-062-670-01 SPACER, PICTURE TUBE
60 * 8-933-336-00 L2 BOARD, COMPLETE
61 * 4-321-929-00 HOLDER, PRINTED CIRCUIT BOARD
62 * 3-703-141-00 HOLDER, PRINTED CIRCUIT BOARD
63 4-061-603-01 COVER, BOTTOM
[U/C/AEP for Japan-made set]
63 4-064-124-01 COVER, BOTTOM [U/C for USA-made set]
63 4-204-318-31 COVER, BOTTOM
[UK/AEP for UK-made set]
64 * 8-933-335-00 J BOARD, COMPLETE
65 * 4-394-972-21 CAP, POWER
66 X-4035-224-1 STAND ASSY
[U/C/AEP for Japan-made set] 67-71
66 X-4036-734-1 STAND ASSY
[520GST9 AEP for Japan-made set] 67-71
66 X-4200-492-1 STAND ASSY
[UK/AEP for UK-made set] 67-71
67 4-061-396-01 STOPPER (A)
[U/C/AEP for Japan-made set]
67 4-064-133-01 STOPPER (A) [U/C for USA-made set]
67 4-204-326-01 STOPPER (A) [UK/AEP for UK-made set]
68 4-061-938-01 SLIDER [U/C/AEP for Japan-made set]
68 4-064-125-01 SLIDER [U/C for USA-made set]
68 4-070-626-01 SLIDER
[520GST9 AEP for Japan-made set]
68 * 4-204-319-31 SLIDER [UK/AEP for UK-made set]
69 4-063-397-01 RING, TILT SWIVEL
[U/C/AEP for Japan-made set]
69 4-065-407-01 RING, TILT SWIVEL
[U/C for USA-made set]
69 * 4-204-376-01 RING, TILT SWIVEL
[UK/AEP for UK-made set]
70 4-041-621-01 STOPPER (B)
[except U/C for USA-made set]
70 4-041-621-21 STOPPER (B) [U/C for USA-made set]
71 4-047-474-01 FOOT, RUBBER
[except U/C for USA-made set]
72 4-308-870-00 CLIP, LEAD WIRE
73 1-452-032-00 MAGNET, DISK; 10mmφ
74 1-452-094-00 MAGNET, ROTATABLE DISK; 15mmφ
75 4-051-736-21 PIECE A (90), CONV. CORRECT
76 X-4035-515-1 STAND ASSY [U/C for USA-made set]
60
70
51
61
71
52
62
72
53
63
73
54
64
74
55
65
75
56
66
76
67
58
68
69
57
59
57
U/C for USA-
made set
except U/C for
USA-made set
