Sony TRINITRON KD-27FS170 - Picture Tube

KD-27FS170/32FS170/36FS170
KD-27FS170/32FS170/36FS170 99
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.
4-046-765-12 SCREW, TAPPING 7+CROWN WASHER
7-685-663-79 SCREW +BVTP 4X16 TYPE2 TT(B)
7-685-648-79 SCREW +BVTP 3X12 TYPE2 TT(B)
4-388-477-01 SCREW(3X16),TAPPING,+BV WASHER

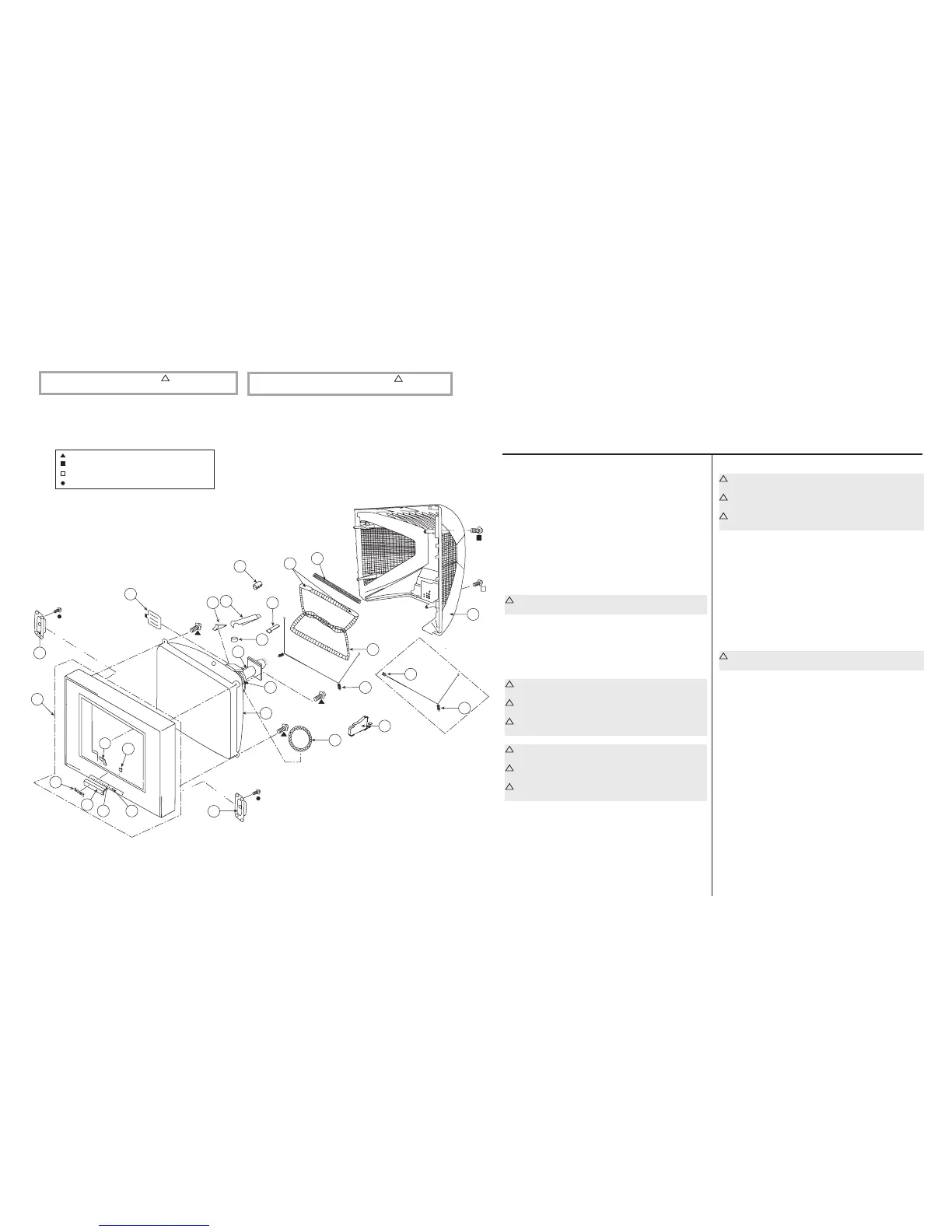

6-2. PICTURE TUBE
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
30 X-2108-755-1 BEZNET ASSY [31-36]
(KD-27FS170 ONLY)
30 X-2108-756-1 BEZNET ASSY [31-36]
(KD-32FS170 ONLY)
30 X-2108-757-1 BEZNET ASSY [31-36]
(KD-36FS170 ONLY)
31 4-046-160-31 EMBLEM, SONY NO.9
32 4-089-056-21 DOOR
33 4-089-016-21 LABEL, DOOR
34 4-089-057-21 BUTTON, POWER
35 4-089-058-01 GUIDE, LED
* 36 4-083-303-01 SPRING, METAL
37 1-825-206-12 LOUDSPEAKER (6X12CM)
!
38 1-452-896-11 COIL, NA ROTATION (RT-200)
(KD-32FS170/36FS170 ONLY)
39 4-089-062-11 SUPPORTER, CRT
(KD-27FS170 ONLY)
39 4-089-063-12 SUPPORTER, CRT
(KD-32FS170 ONLY)
39 4-089-064-03 SUPPORTER, CRT
(KD-36FS170 ONLY)
!
40 8-735-041-05 CRT 29RSN M68LNH010X
(KD-27FS170 ONLY)
!
40 8-735-066-05 CRT 34RSN(SDP) A80LPD50X
(KD-32FS170 ONLY)
!
40 8-735-048-05 CRT 38RSN A90LPW80X
(KD-36FS170 ONLY)
!
41 8-451-494-81 DY Y29RSA-V3
(KD-27FS170 ONLY)
!
41 8-451-499-41 DY Y34RSA-V
(KD-32FS170 ONLY)
!
41 8-451-506-22 DY Y38RSA-V
(KD-36FS170 ONLY)
42 4-036-329-01 SPRING (B), TENSION
(KD-27FS170 ONLY)
42 4-082-641-01 SPRING, 45MM
(KD-32FS170/36FS170 ONLY)
43 4-082-640-01 HOOK, GROUND WIRE
(KD-32FS170/36FS170 ONLY)
!
44 1-419-156-22 COIL, DEGAUSSING
(KD-27FS170 ONLY)
!
44 1-428-988-31 DEGAUSSING COIL (32 INCH 120V)
(KD-32FS170 ONLY)
!
44 1-456-011-21 COIL, DEGAUSSING
(KD-36FS170 ONLY)
45 4-100-433-01 TUBE, DGC (A)
(KD-32FS170 ONLY)
45 4-098-344-01 TUBE, DGC (B)
(KD-36FS170 ONLY)
* 46 4-074-576-01 CUSHION, DGC
47 1-500-586-11 FILTER, CLAMP (FERRITE CORE)
48 4-083-414-01 PIECE A(110), CONV CORRECT
(KD-27FS170/32FS170 ONLY)
48 4-085-128-01 PIECE A (100), CONV. CORRECT
(KD-36FS170 ONLY)
49 1-452-885-11 MAGNET, LANDING
!
50 8-453-020-21 NECK ASSEMBLY NA327-M2
(KD-32FS170/36FS170 ONLY)
* 51 4-062-970-12 CLIP (29RSN), DGC
(KD-27FS170 ONLY)
51 4-102-284-11 CLIP, DGC
(KD-32FS170 ONLY)
51 4-065-895-21 HOLDER, DGC
(KD-36FS170 ONLY)
52 4-046-600-11 SPACER, DY
53 4-081-170-01 PLATE, TLH CORRECTION
(KD-27FS170/32FS170 ONLY)
53 2-163-920-01 PLATE, TLH CORRECTION
(KD-36FS170 ONLY)
54 2-671-472-01 COVER, REAR
(KD-27FS170 ONLY)
54 2-671-474-01 COVER, REAR
(KD-32FS170 ONLY)
54 4-089-052-71 COVER, REAR
(KD-36FS170 ONLY)
54
53
30
51
48
37
39
42
42
43
44
49
37
50
38
40
41
52
32
33
31
35
34
36
45
46
KD-32FS170
KD-36FS170
47
