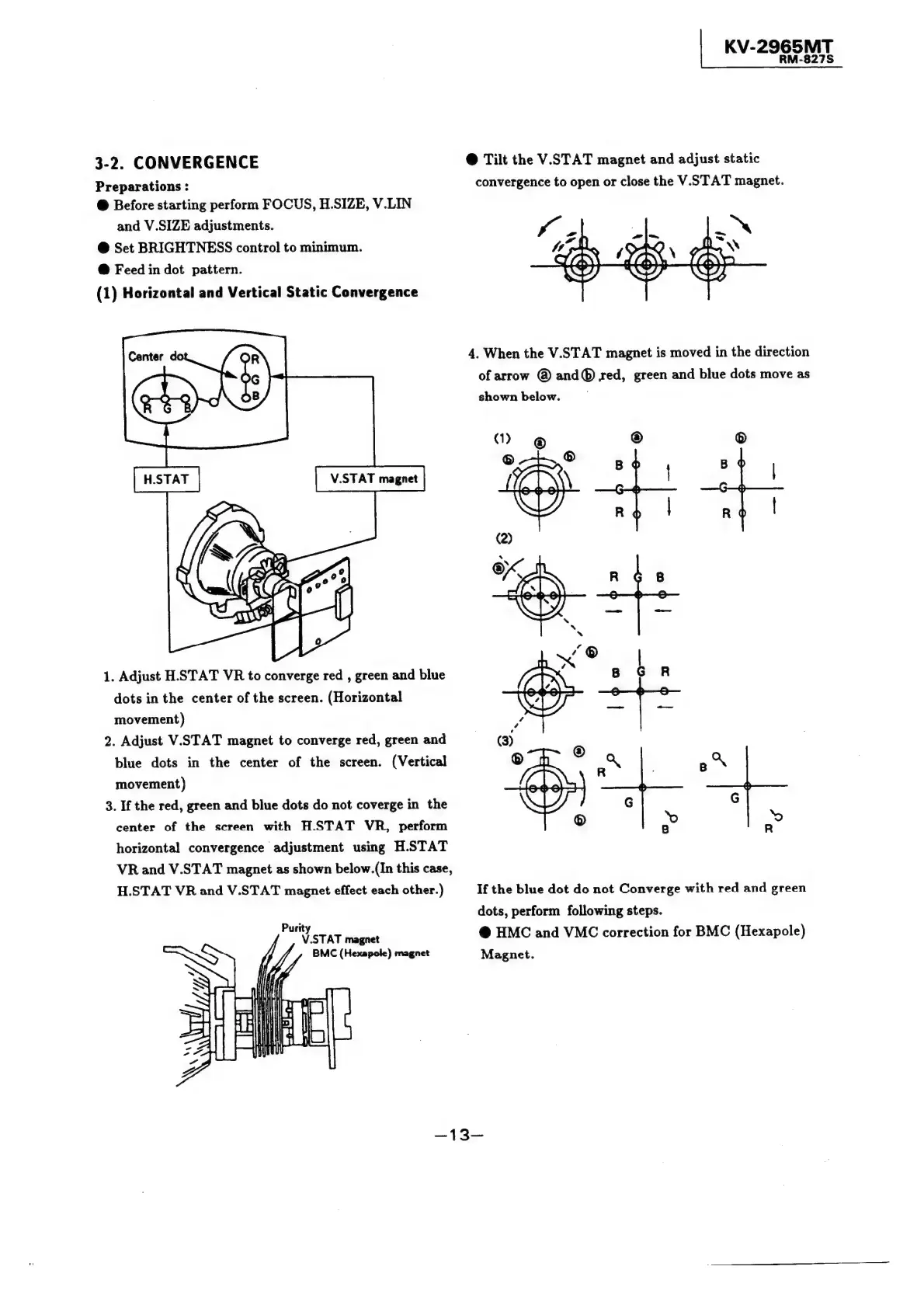

Sony TRINITRON KV-2565MT - Convergence Adjustment; Static Convergence Adjustment; Blue Dot Convergence Correction

| KV-2965MT
RM-827S
3-2.
CONVERGENCE
@
Tilt
the
V.STAT
magnet
and
adjust
static
Preparations
:
convergence
to
open
or
close
the
V.STAT
magnet.
@
Before
starting
perform
FOCUS,
H.SIZE,
V.LIN
and V.SIZE adjustments.
@ Set BRIGHTNESS control to minimum.
@ Feed in dot pattern.
(1) Horizontal and Vertical Static Convergence
4, When the V.STAT magnet is moved in the direction
of arrow @ and@® ,ed, green and blue dots move as
shown below.
®
Lot uk
1. Adjust H.STAT VR to converge red , green and blue
dots in the center of the screen. (Horizontal
movement)
2. Adjust V.STAT magnet to converge red, green and
blue dots in the center of the screen. (Vertical
movement)
3. If the red, green and blue dots do not coverge in the
center of the screen with H.STAT VR, perform
horizontal convergence adjustment using H.STAT
VR and V.STAT magnet as shown below.(In this case,
H.STAT VR and V.STAT magnet effect each other.)
If the blue dot do not Converge with red and green
dots, perform following steps.
Purity
V.STAT
magnet
@
HMC
and
VMC
correction
for
BMC
(Hexapole)
BMC
(Hexapole)
magnet
Magnet.
an ie
