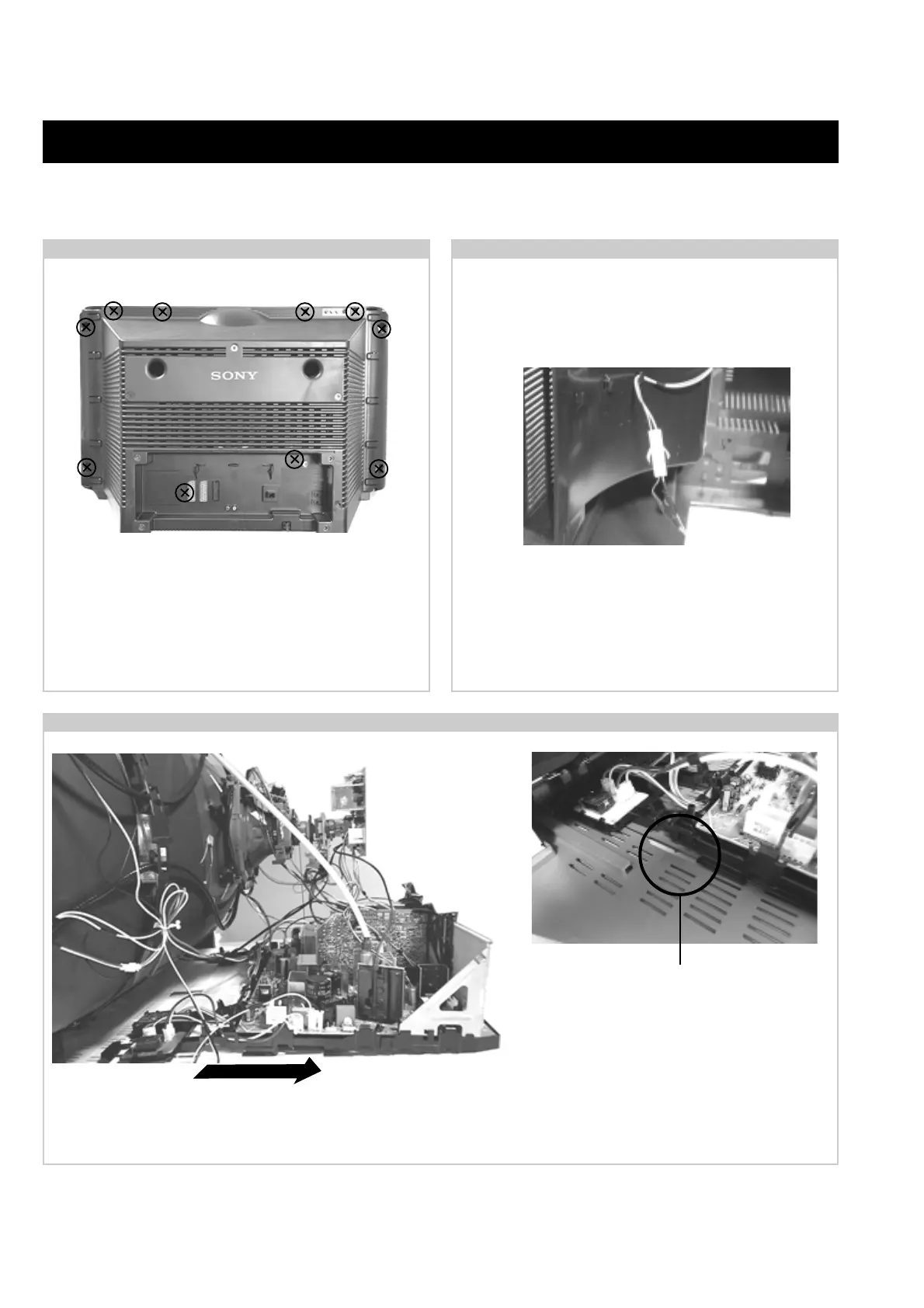

Remove the rear cover fixing screws indicated. Take care
when removing the rear cover not to damage the speaker
cables [Disconnect the speaker connector] as speakers are
fitted inside the rear cover.
SECTION 2 DISASSEMBLY
2-1. Rear Cover Removal
To remove lift the main bracket rear slightly and slide the
chassis away from the beznet. Ensure that the interconnecting
leads are released from their purse locks to prevent damage
being caused.
2-2. Speaker Connector Disconnection
When refitting the chassis ensure that the main
bracket is located in the beznet guide slots before
sliding the chassis forwards. Refit the
interconnecting leads in their respective purse locks.
Before completely removing the rear cover disconnect the
speaker connector.
2-3. Chassis Removal and Refitting
