17

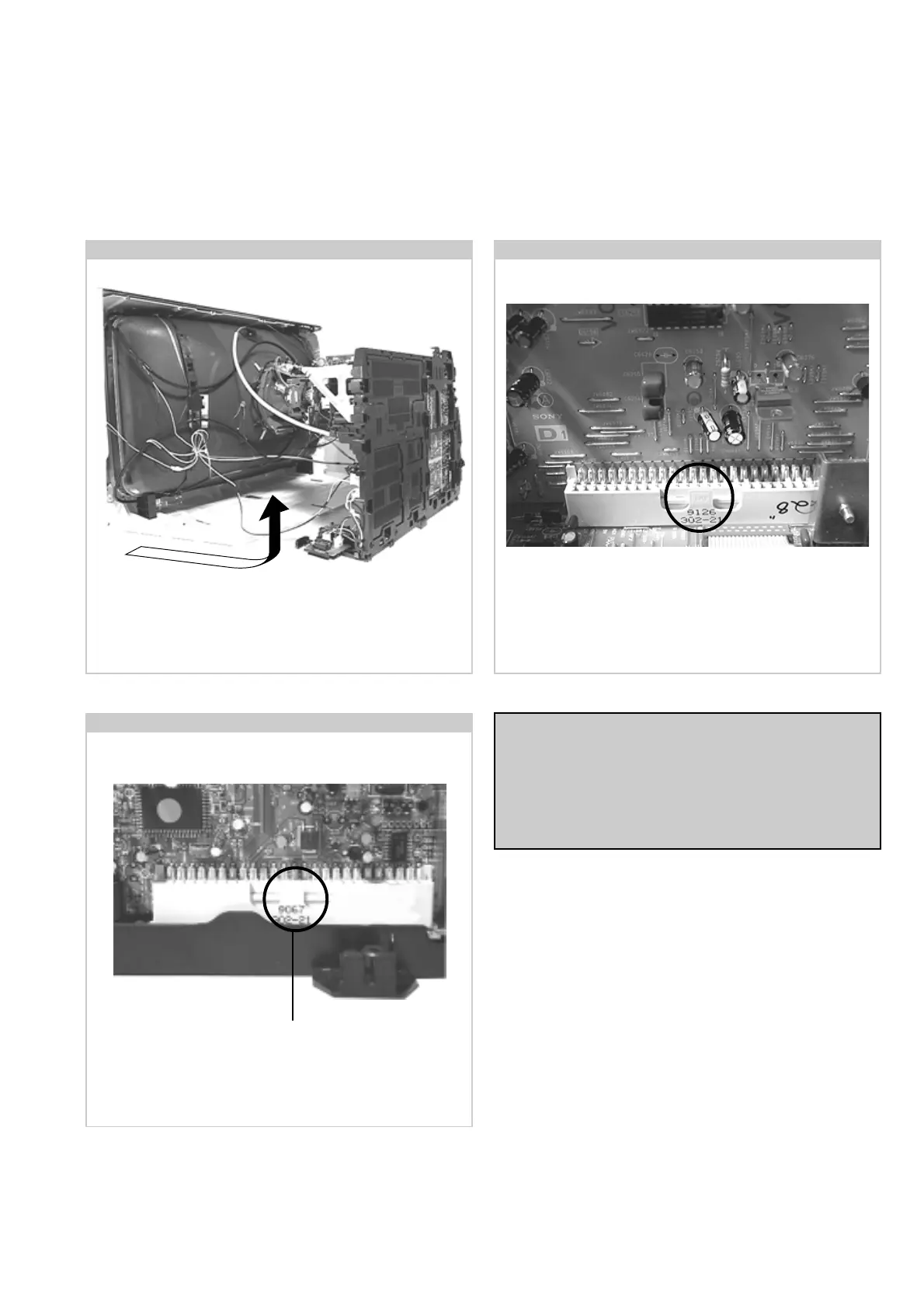

2-4. Service Position 2-5. D1 Board Removal
2-6. J Board Removal
To remove the D1 Board release the clip circled and gently
remove the board in a vertical direction.
Position the PWB as indicated to access the solder side.
To gain access to the D Board follow the instructions on page
19. [Removal and Replacement of the main bracket bottom
plates ].
Release the clip and carefully remove the board in a vertical
direction.
Note :
Removal of the B1, E, M, and U printed circuit boards follows
the same procedure of releasing the securing clips as indicated
in the figs for D1 and J board removal.
Take care not to apply to great a pressure to the clips as this
may cause damage.
