Sony Trinitron KV-28FC60 - Picture Tube

http://cxema.ru
96
REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK
51 X-4200-533-2 BEZNET ASSY (KV-28FC60) 55
X-4200-533-1 BEZNET ASSY (KV-28FC60/Z)
X-4200-513-2 BEZNET ASSY (KV-32FC60)
X-4200-513-1 BEZNET ASSY (KV-32FC60/Z)
52 *X-4200-537-1 SPEAKER COVER ASSY, CLOTH
(KV-28FC60/32FC60)
53 4-205-004-11 BUTTON, POWER
54 *X-4200-534-1 SPEAKER COVER ASSY (L) METAL
(KV-28FC60/Z/32FC60/Z)
*X-4200-535-1 SPEAKER COVER ASSY (R) METAL
(KV-28FC60/Z/32FC60/Z)
55 4-205-003-01 LIGHT GUIDE
56 *4-203-098-01 SUPPORTER, CRT (KV-32FC60/32FC60/Z)
57 4-203-128-41 SHEET, BLOTTING
58 £ 8-737-786-05 PICTURE TUBE (W66LLX060X) (SD-299)
(KV-28FC60/28FC60/Z)
£ 8-735-054-05 PICTURE TUBE (W76LLZ060X) (SD-302)
(KV-32FC60/32FC60/Z)
59 £ 1-451-481-11 DEFLECTION YOKE (Y28RVC2)
(KV-28FC60/32FC60/Z)
£ 1-451-480-11 DEFLECTION YOKE (Y32RVC2)
(KV-32FC60/32FC60/Z)
60 1-452-896-11 COIL, NA ROTATION (RT200)
61 £ 8-453-011-11 NECK ASSY, NA299-M
62 *A-1644-103-A VM BOARD, COMPLETE
63 *A-1638-132-A C BOARD, COMPLETE
60
61
63
67
51
75
76
77
78
79
59
56
62
53
52
64
66
68
73
72
54
57

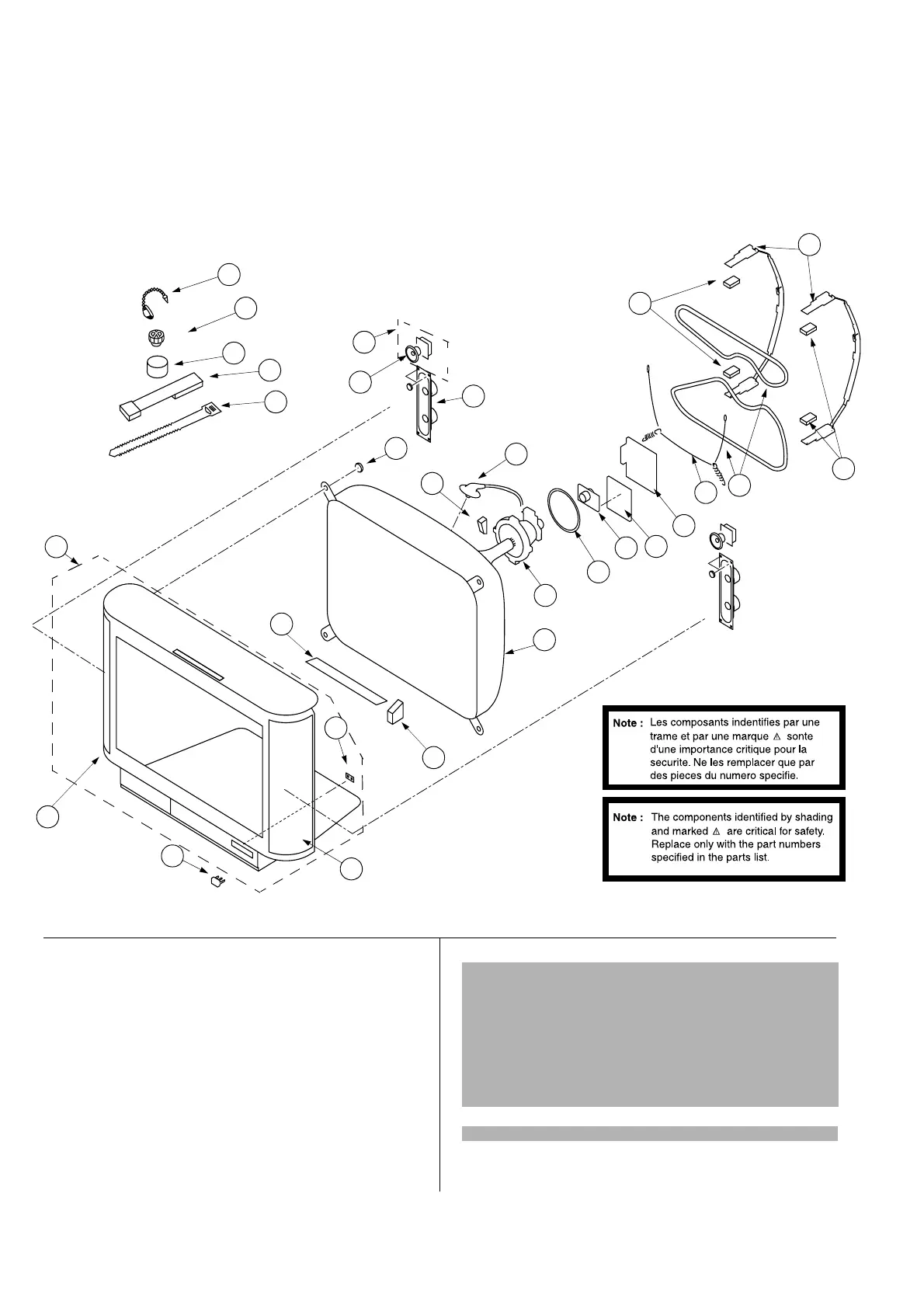

6-2. PICTURE TUBE
