Sony TRINITRON KV-34FV15 - Exploded Views

— 78 —
KV-32FS10/32FV15/32XBR250/34FV10/34FV15/34FV15C/34FX250C/34FV15K
34FV15T/36FS10/36FV15/36XBR250/38FX250/38FX250C/38FX250T/38FV15K
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
7-1. CHASSIS (KV-32FS10/32FV15/32FV15C/32XBR250/34FV10
34FV15/34FV15K/34FV15T/34FX250C)
• Items with no part number and no description are not stocked
because they are seldom required for routine service.
• The component parts of an assembly are indicated by the
reference numbers in the remarks column.
• Items marked with an asterisk " * " are not stocked since they are
seldom required for routine service. Some delay should be
anticipated when ordering these items.
Les composants identifies per un trame et une marque
!
sont
critiques pour la securite. Ne les remplacer que par une piece
portant le numero specifie.
The components identified by shading and "
!
" are critical
for safety. Replace only with specified part number.

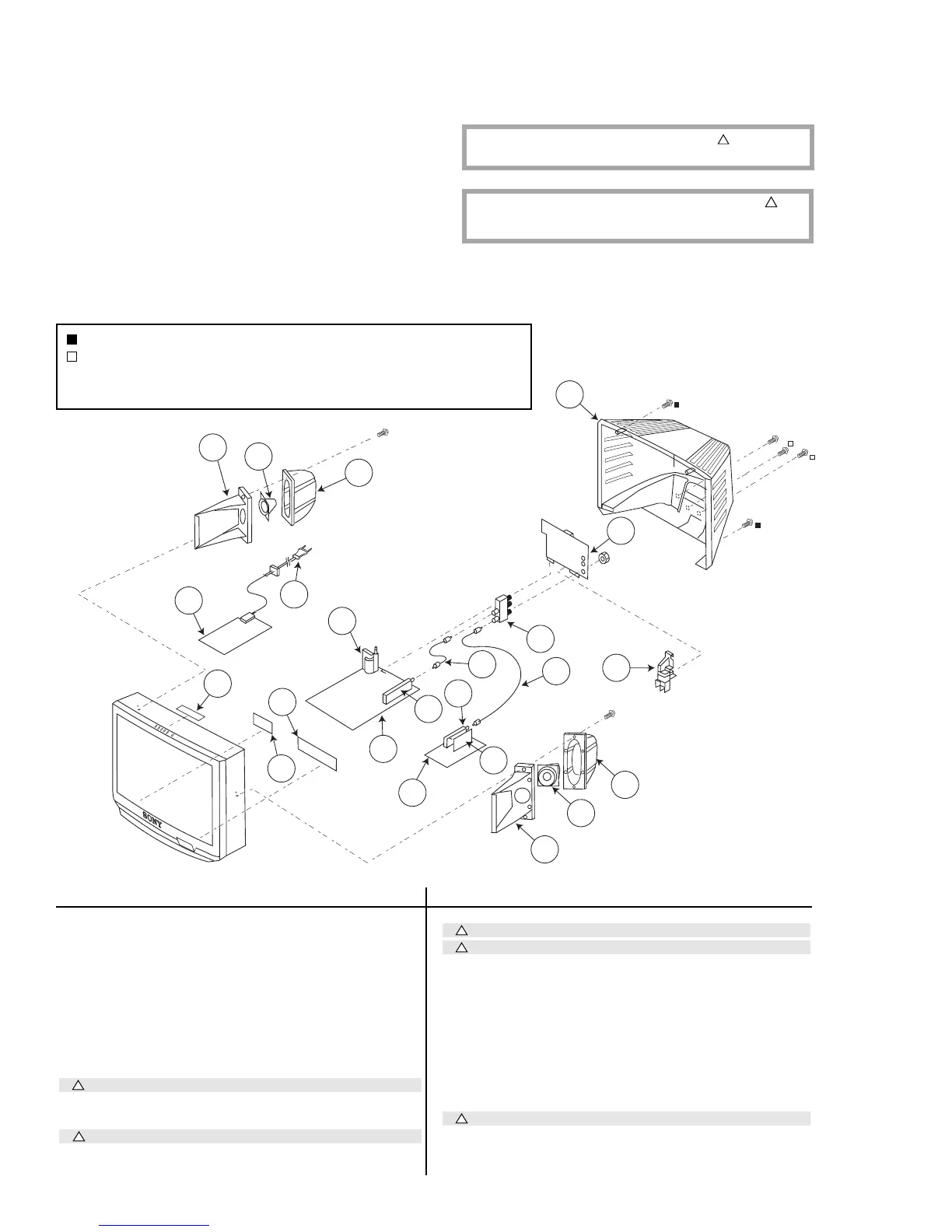

SECTION 7
EXPLODED VIEW
•
••
1 * A-1372-634-A HA BOARD, COMPLETE
2 * A-1372-635-A HB BOARD, COMPLETE
3 * A-1372-636-A HX BOARD, COMPLETE
4 * A-1298-890-A A BOARD, COMPLETE (KV-32FS10/
32FV15/32XBR250/34FV10/34FV15/34FV15C/
34FX250C Only)
4 * A-1298-965-A A BOARD, COMPLETE (KV34FV15T Only)
4 * A-1298-969-A A BOARD, COMPLETE (KV34FV15K Only)
5
!
8-598-431-00 TUNER, FSS BTF-WA411
(KV-32FS10/32FV15/32XBR250/34FV10/
34FV15/34FV15C/34FX250C Only)
5
!
8-598-475-00 TUNER, FSS BTF-WL411
(KV-34FV15K Only)
5
!
8-598-477-00 TUNER, FSS BTF-WG411 (KV-34FV15T Only)
6
!
1-453-286-11 FBT ASSY, NX4600//X4C4
7 * A-1298-956-A AK BOARD, COMPLETE
(KV-32FS10/34FV10 Only)
7 * A-1298-957-A AK BOARD, COMPLETE (KV32FV15/34FV15/
34FV15C/34FV15K/34FV15T Only)
7 * A-1298-980-A AK BOARD, COMPLETE (KV-32XBR250/
34FX250C Only)
8 * A-1394-934-A T BOARD, COMPLETE (KV-32XBR250/
34FX250C Only)
9
!
8-598-430-00 TUNER, BTF-FA401
10 1-557-056-31 CABLE, P-P (KV-32FV15/32XBR250/34FV15/
34FV15C/34FV15K/34FV15T/34FX250C Only)
7-682-566-04 SCREW (M4X20), TAPPING, (+-)(BV) (KV-32FS10, 34FV10 EXCLUDED)
7-685-648-79 SCREW (3X12, TYPE 2)
7-685-663-79 SCREW (4X16, TYPE 2)
7-685-871-01 SCREW (3X6) (S) (KV-32XBR250, 34FX250C ONLY)
1
2
3
4
5
8
6
10
11
12
13
7
15
16
14
18
17
19
19
9
20
18
17
•
•
