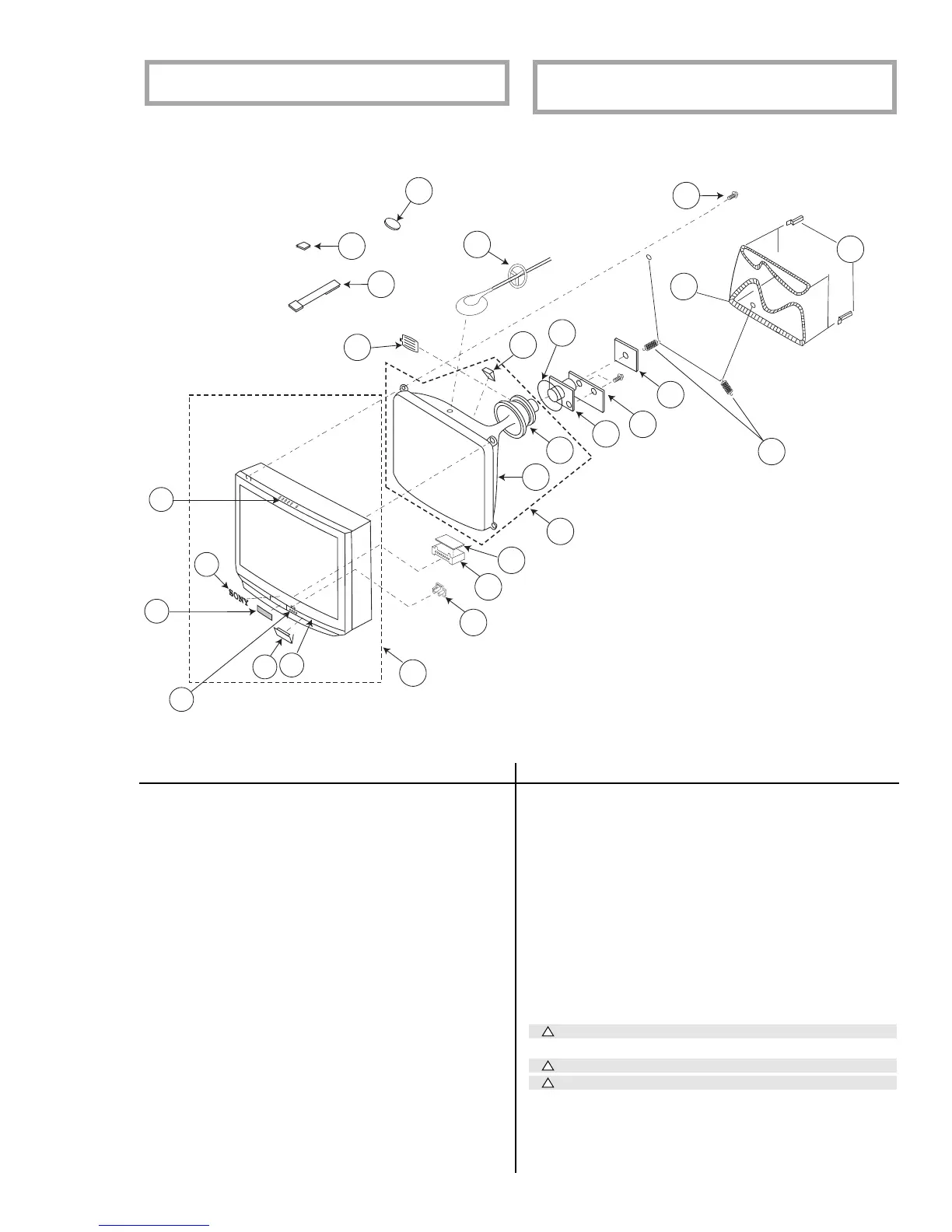

7-3. PICTURE TUBE
Les composants identifies per un trame et une marque
¡¡
¡¡
¡ sont
critiques pour la securite. Ne les remplacer que par une piece
portant le numero specifie.
The components identified by shading and "
¡¡
¡¡
¡" mark are
critical for safety. Replace only with specified part number.
50 X-4036-678-2 BEZNET ASSY 51-53
(KV-32FS10 Only)
50 X-4036-679-1 BEZNET ASSY 51-53
(KV-32FV15/34FV15T Only)
50 X-4036-679-2 BEZNET ASSY 51-53
(KV-34FV10/34FV15/34FV15C/
34FV15K Only)
50 X-4036-680-1 BEZNET ASSY 51-53
(KV-32XBR250/34FX250C Only)
50 X-4036-683-1 BEZNET ASSY 51-53
(KV-36FS10 Only)
50 X-4036-684-1 BEZNET ASSY 51-53
36FV15/38FV15K Only)
50 X-4036-685-1 BEZNET ASSY 51-53
(KV-36XBR250/38FX250/38FX250C,
38FX250T Only)
51 3-704-179-31 EMBLEM (NO. 9), SONY
52 4-068-985-01 DOOR
53 3-703-574-00 RETAINER, DOOR
54 4-068-984-01 MULTI-BUTTON (BOTTOM)
55 4-068-991-01 PANEL, IR
(KV-32XBR250/34FX250C/36XBR250,
38FX250/38FX250C/38FX250T Only)
56 4-068-982-01 MULTI-BUTTON (TOP)
57 * 4-068-986-01 GUIDE, LED
58 4-068-992-01 CASE, IR SHIELD
(KV-32XBR250/34FX250C/36XBR250,
38FX250/38FX250C/38FX250T Only)
59 4-071-399-01 CUSHION, 45MM X 100MM
(KV-36XBR250/38FX250/38FX250C/
38FX250T Only)
60
!
8-735-047-61 ITC 34RSN-A1 61-62
(KV-32FV15/32XBR250 Only)
60
!
8-735-050-61 ITC 34RSN-A1E (KV-34FX250C ONLY) 61-62
60
!
8-735-048-61 ITC 38RSN-A1 61-62
(KV-36FS10/36FV15/36XBR250/38FV15K/
38FX250/38FX250T Only)
