- KV-E2511D

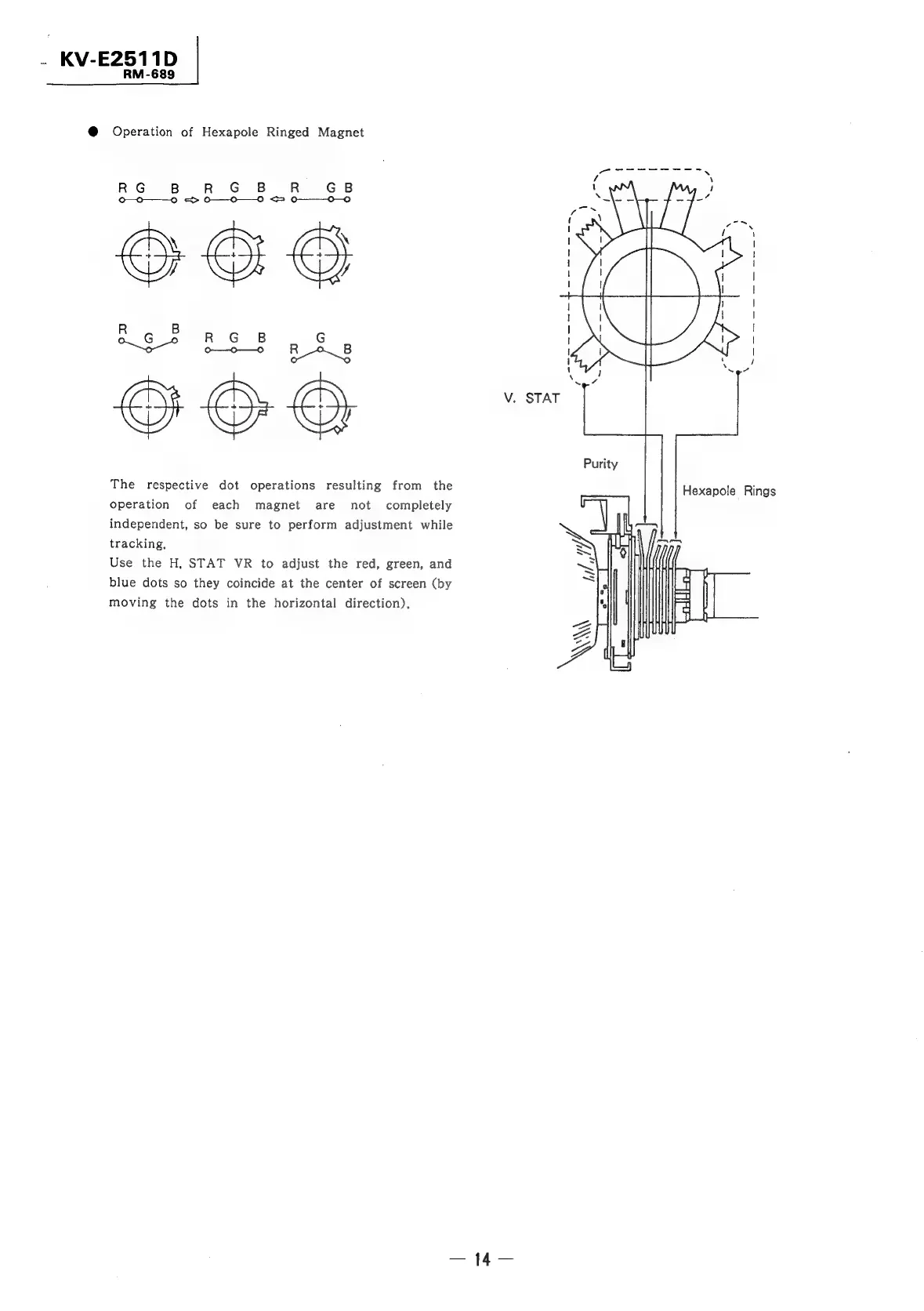

@ Operation of Hexapole Ringed Magnet
RG B R G B R GB
o-0——0 & 0 —0 —0 <> 0-0-0
GOOG @
See ee alee
Cs Cr ©)
The respective dot operations resulting from the
Hexapole Rings
operation of each magnet are not completely
independent, so be sure to perform adjustment while
tracking,
Use the H. STAT VR to adjust the red, green, and
blue dots so they coincide at the center of screen (by
moving the dots in the horizontal direction),
