– 23 –
KV-G21MW3/G21QW3
RM-869

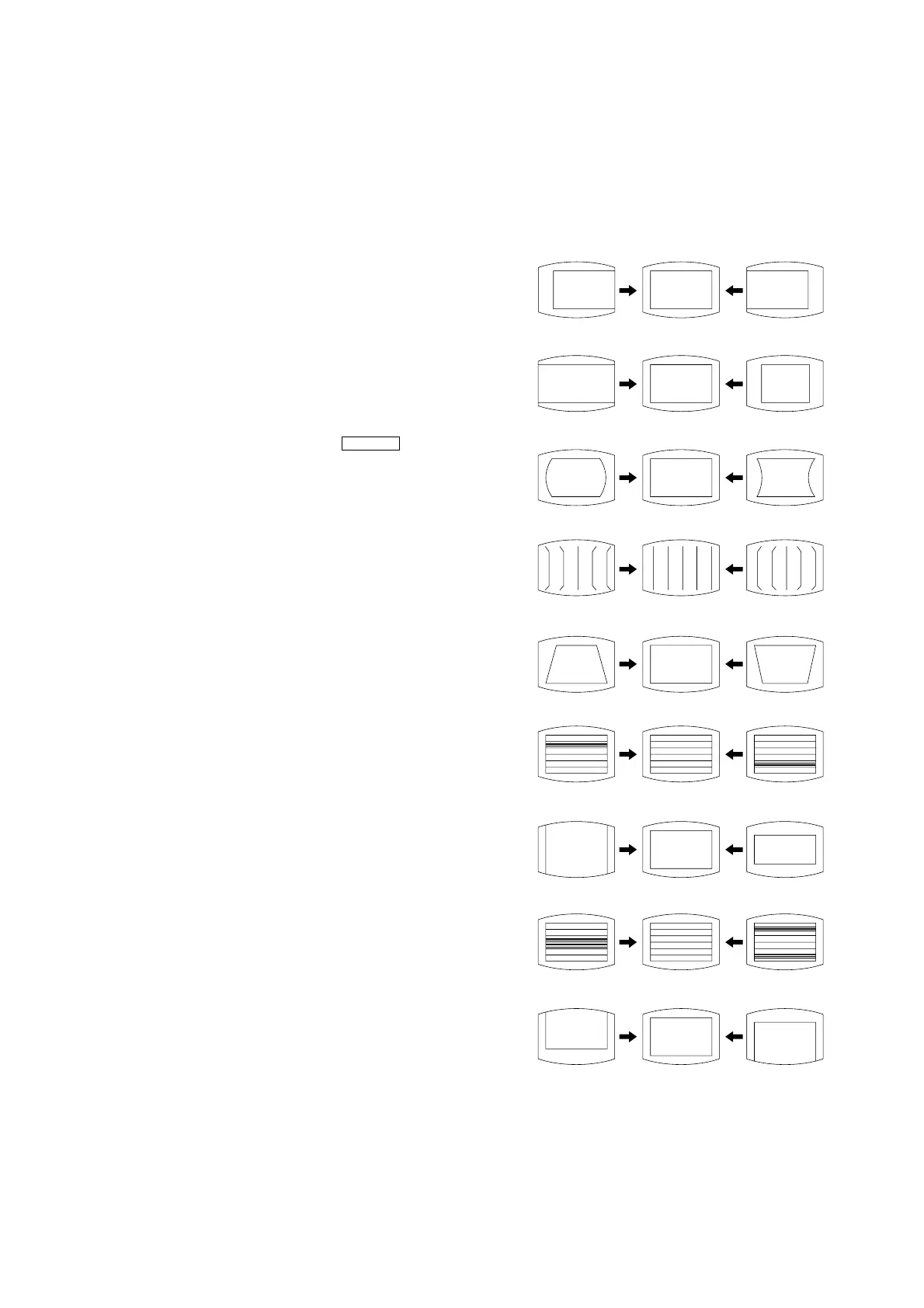

4-4. PICTURE DISTORTION ADJUSTMENT
Item Number 00 – 08
4-3. A BOARD ADJUSTMENT AFTER IC003
(MEMORY) REPLACEMENT
1. Enter to Service Mode.
2. Press commander buttons 5 and - (Data Initialize), and 2
and - (Data Copy) to initialize the data.
3. Call each item number, and check if the respective screen shows
the normal picture.
In case some items are not well-adjusted, give them fine
adjustment.
Write the data per each item number (
MUTING
+ -).
4. Select item numbers “3F” (OP0), “40” (OP1) and “41” (OP2)
and respectively set the bit per model with command buttons
3 and 6.
5. Press commander buttons 8 and - (Test Normal) to return
to the data that was set on shipment from the factory.
(= Cancel Service Mode.)
00 HSF (H SHIFT)
01 HSZ (H SIZE)
02 PAP (PIN AMPLITUDE)
03 CNP (CORNER PIN)
04 TLT (TILT)
05 VSL (V SLOPE)
06 VAP (V AMPLITUDE)
07 SCR (S CORRECTION)
08 VSF (V SHIFT)
To Next Page
