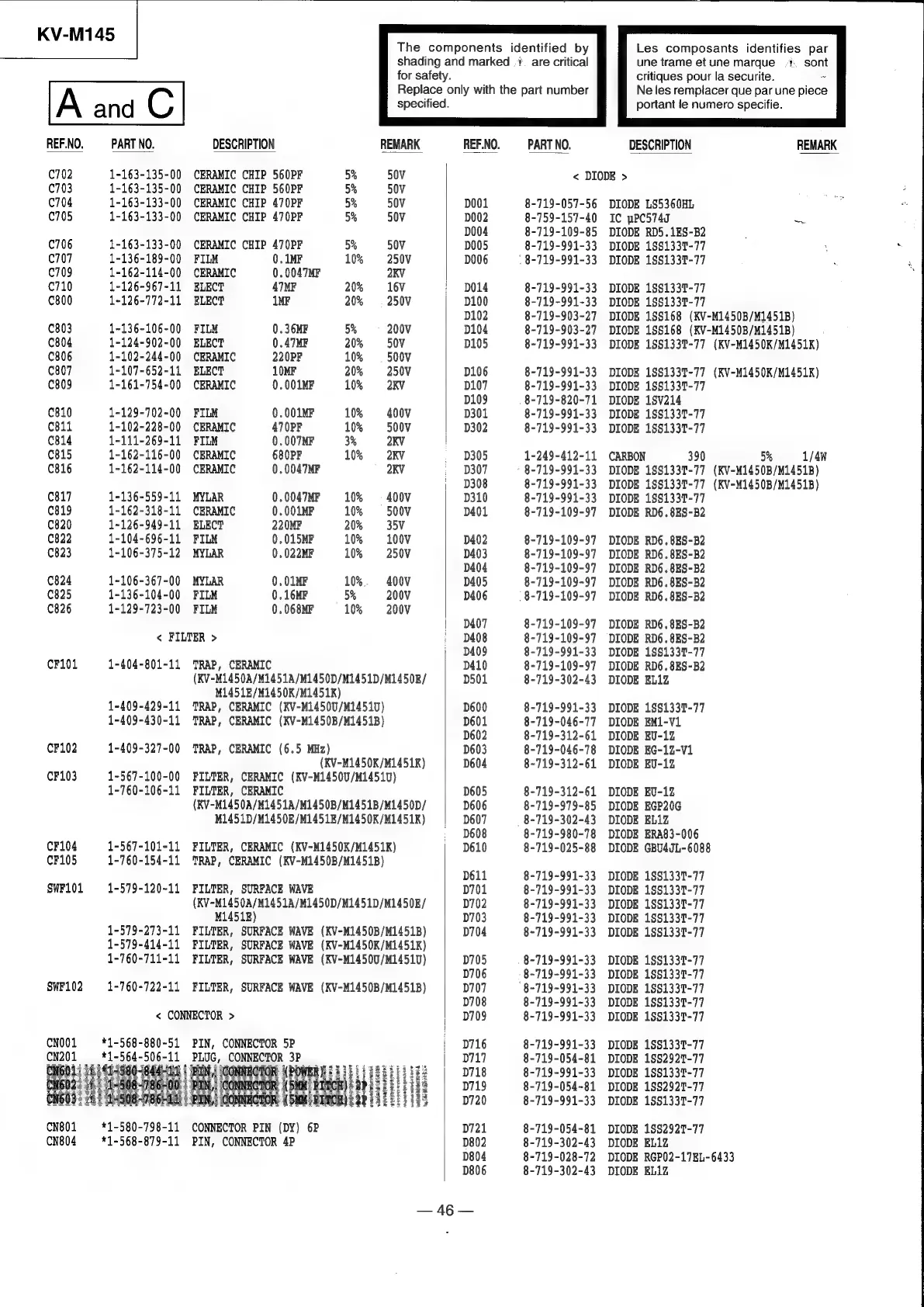

REFNO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
c702 1-163-135-00 CERAMIC CHIP 560PF 5% 50V < DIODE >
C703 1-163-135-00 CERAMIC CHIP 560PF 5% 50V
C704 1-163-133-00 CERAMIC CHIP 470PF 5% «50V D001 ©—»-8-719-057-56 DIODE LS5360HL
C705 1-163-133-00 CERAMIC CHIP 470PF 5% 50V D002 8-759-157-40 IC pPCS74d &
D004 8-719-109-85 DIODE RD5.1ES-B2
C706 1-163-133-00 CERAMIC CHIP 470PF 5% 50V D005 -—»«-8-719-991-33 DIODE 1$$1337-77 ‘ :
C707 1-136-189-00 FILM 0. 1MF 10% 250V D006 «==» 8-719-991-33 DIODE 18$1337-77 : P
C709 1-162-114-00 CERAMIC 0.004 7MF 2KV :
C710 1-126-967-11 ELECT 47M 20% 16V D014 8-719-991-33 DIODE 18$133T-77
800 1-126-772-11 ELECT 1MF 20% — 250V D100 8-719-991-33 DIODE 18$1337-77
D102 -—-»-8-719-903-27 DIODE 1$$168 (KV-M1450B/M1451B)
803 1-136-106-00 FILM 0.36MF 5% — 200V D104 8-719-903-27 DIODE 18S168 (KV-M1450B/M1451B)
C804 1-124-902-00 ELECT 0.47MF = 20% 50V D105 8-719-991-33 DIODE 18S133T-77 (KV-M1450K/M1451K)
C806 1-102-244-00 CERAMIC 220PF 10% 500V
C807 1-107-652-11 ELECT 1OMF 20% — 250V D106 ©—»-8-719-991-33 DIODE 1$$1337-77 (RV-M1450K/M1451K)
809 1-161-754-00 CERAMIC 0.001MF 10% © 2RV D107 8-719-991-33 DIODE 18S133T-77
D109 = 8-719-820-71 DIODE 1sv214
810 1-129-702-00 FILM 0.001MF 10% 400V D301 ©» 8-719-991-33 DIODE 18$1337-77
C811 1-102-228-00 CERAMIC 470PF 10% 500V D302 = 8-719-991-33 DIODE 18$1337-77
C814 1-111-269-11 FILM 0.007MF 3% KV
C815 1-162-116-00 CERAMIC 680PF 10% — 2KV D305 1-249-412-11 CARBON 390 5% L/AW
C816 1-162-114-00 CERAMIC 0.0047MF aKV D307 ==» 8-719-991-33 DIODE 1$$1337-77 (KV-N1450B/M1451B)
D308 ©—»-8-719-991-33 DIODE 19S1337-77 (KV-M1450B/M1451B)
C817 1-136-559-11 MYLAR 0.0047MF 10% © 400V D310 -—S»-8-719-991-33 DIODE 19$1337-77
C819 1-162-318-11 CERAMIC 0.001MF 10% 500V D401 -—»«8-719-109-97 DIODE RDG. 8ES-B2
C820 1-126-949-11 ELECT 220MF 20% 35V
(822 1-104-696-11 FILM 0.015MF 10% 100V D402 8-719-109-97 DIODE RD6.8ES-B2
823 1-106-375-12 MYLAR 0.022MF 10% 250V D403 8-719-109-97 DIODE RD6.8ES-B2
D404 8-719-109-97 DIODE RD6.8ES-B2
C824 1-106-367-00 MYLAR 0.0IMF = 10% + -400V D405» 8-719-109-97 DIODE RD6.8ES-B2
(825 1-136-104-00 FILM O.16MF = 5% =~ .200V D406 =» 8-719-109-97 DIODE RDG. 8ES-B2
(826 1-129-723-00 FILM 0.068MF 10% 200V
D407 8-719-109-97 DIODE RD6.8ES-B2
< FILTER > D408 8-719-109-97 DIODE RD6.8ES-B2
D409 8-719-991-33 DIODE 19$1337-77
CF101 1-404-801-11 TRAP, CERAMIC D410 8-719-109-97 DIODE RD6. 8ES-B2
(KV-H1450A/M1451A/M1450D/M1451D/M1450B/ | D501 -—«8-719-302-43 DIODE ELIZ
414512/M1450K/M1451K)
1-409-429-11 TRAP, CERAMIC (KV-M1450U/M14510) D600 8-719-991-33 DIODE 1891337-77
1-409-430-11 TRAP, CERAMIC (KV-M1450B/M1451B) D601 = 8-719-046-77 DIODE EN1-V1
D602 8-719-312-61 DIODE EU-12
CF102 1-409-327-00 TRAP, CERAMIC (6.5 MHz) D603 8-719-046-78 DIODE EG-12-V1
(KV-M1450K/M1451K) D604 8-719-312-61 DIODE EU-1z
CF103 -1-567-100-00 FILTER, CERAMIC (RV-M1450U/N14510)
1-760-106-11 FILTER, CERAMIC D605 = 8-719-312-61 DIODE EU-12
(KV-M1450A/M1451A/M1450B/M1451B/M1450D/ | D606 -—»«-8-719-979-85 DIODE EGP20G
M1451D/M1450E/M14512/M1450K/M1451K) D607 «=» 8-719-302-43 DIODE ELIZ
D608 -—»«-8-719-980-78 DIODE ERA83-006
CF104 © 1-567-101-11 FILTER, CERAMIC (KV-M1450K/M1451K) D610 —»«-8-719-025-88 DIODE GRU4JL-6088
CF105 —-1-760-154-11 TRAP, CERAMIC (KV-M1450B/M1451B)
D611 «8 -719-991-33 DIODE 1991337-77
SWF101 1-579-120-11 FILTER, SURFACE WAVE D701 8-719-991-33 DIODE 18S133T-77
(KV-M1450A/M1452A/M1450D/M1451D/M1450E/ | D702 8-719-991-33 DIODE 18$133T-77
414512) D703 8-719-991-33 DIODE 1$$133T-77
1-579-273-11 FILTER, SURFACE WAVE (KV-M1450B/M1451B) | D704 8-719-991-33 DIODE 1$$133T-77
1-579-414-11 FILTER, SURFACE WAVE (KV-M1450K/M1451K)
1-760-711-11 FILTER, SURFACE WAVE (RV-M1450U/M1451U) | D705 8-719-991-33 DIODE 18$133T-77
D706 «==» 8-719-991-33 DIODE 1$81337-77
SWF102 1-760-722-11 FILTER, SURFACE WAVE (KV-M1450B/M1451B) | D707 8-719-991-33 DIODE 18S1339-77
D708 «== 8-719-991-33 DIODE 1$81337-77
< CONNECTOR > D709 == 8-719-991-33 DIODE 18S1331-77
CNOO1 *1-568-880-51 PIN, CONNECTOR 5P D716 8-719-991-33 DIODE 1881337-77
CN201 *1-564-506-11 PLUG, CONNECTOR 3P D717 8-719-054-81 DIODE 1$82927-77
Sh
ebssg0-
seed
|
CTOR
HiTEEELLHE2
«|
vis
8-719-991-33
DIODE
188133?-77
Be ti a a na Pa 1 || D719 = 8-719-054-81 DIODE 19S292T-77
9:
78!
Mesdd-786-aa)
aay
ae
ellis
|
pra0
8-719-991-33
DIODE
18S133T-77
CN801 *1-580-798-11 CONNECTOR PIN (DY) 6P D721 ©—-8-719-054-81 DIODE 1992927-77
CN804 *1-568-879-11 PIN, CONNECTOR 4P D802 8-719-302-43 DIODE ELIZ
D804 8-719-028-72 DIODE RGPO2-17EL-6433
D806 8-719-302-43 DIODE ELIZ
