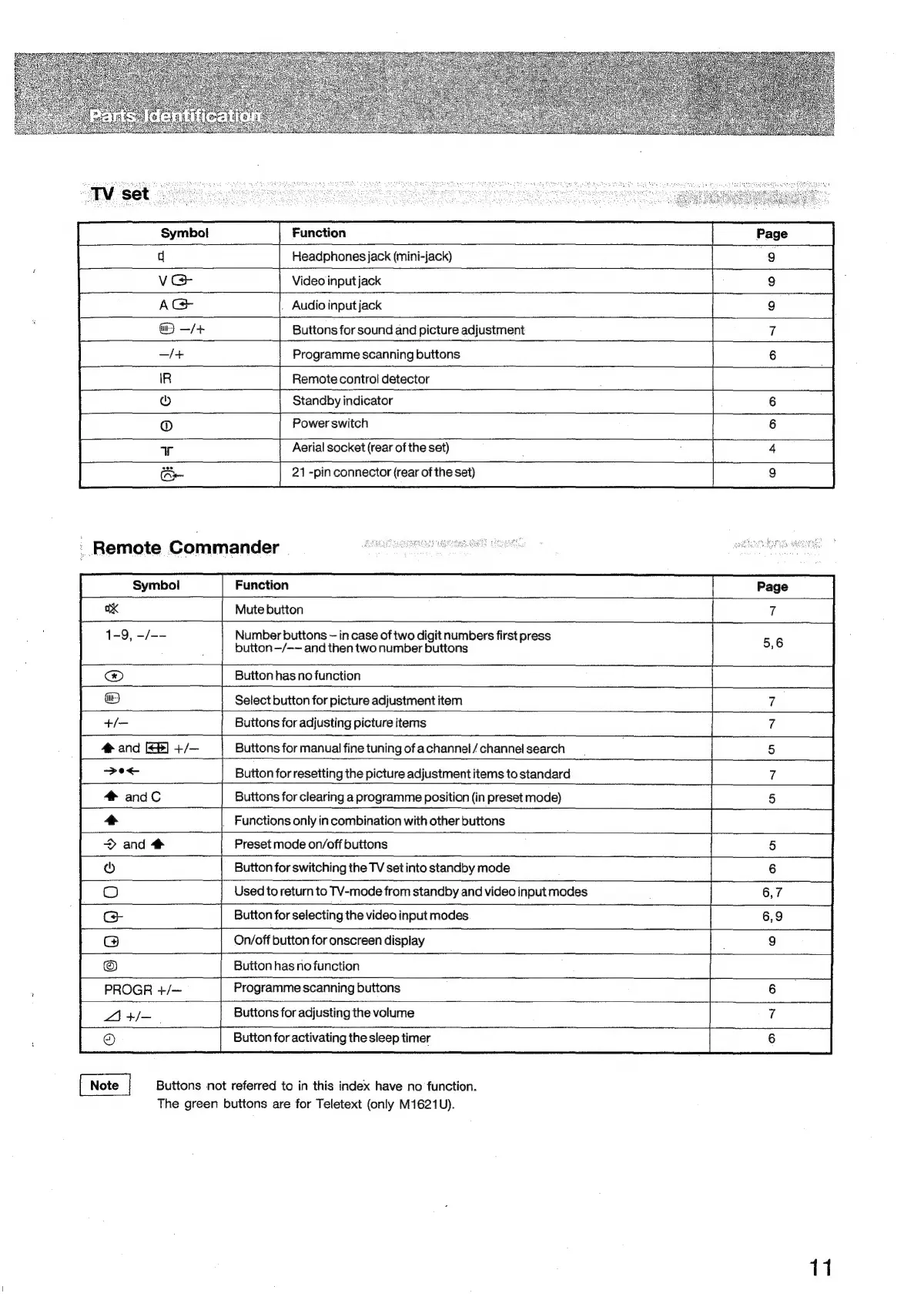

Function
Headphones jack (mini-jack)
Video input jack
. Audio input jack
Buttons for sound and picture adjustment
Programme scanning buttons
Remote control detector
Standby indicator
Power switch
Aerial socket (rear of the set)
21 -pin connector (rear of the set)
Number buttons ~ in case of two digit numbers first press
button —/-—~ and then two number buttons
a Button has no function We aes ll
Select button for picture adjustment item 7
Buttons for adjusting picture items
4@ and (eb) +/- Buttons for manual fine tuning of a channel / channel search
Button for resetting the picture adjustment items to standard
Buttons for clearing a programme position (in preset mode)
Functions only in combination with other buttons
Preset mode on/off buttons
Button for switching the TV set into standby mode
Used to return to TV-mode from standby and video input modes
—~}.
Button for selecting the video input modes
On/off button for onscreen display
Button has no function
PROGR +/— Programme scanning buttons
A 4+/— Buttons for adjusting the volume
Button for activating the sleep timer
Buttons not referred to in this index have no function.
The green buttons are for Teletext (only M1621U).
