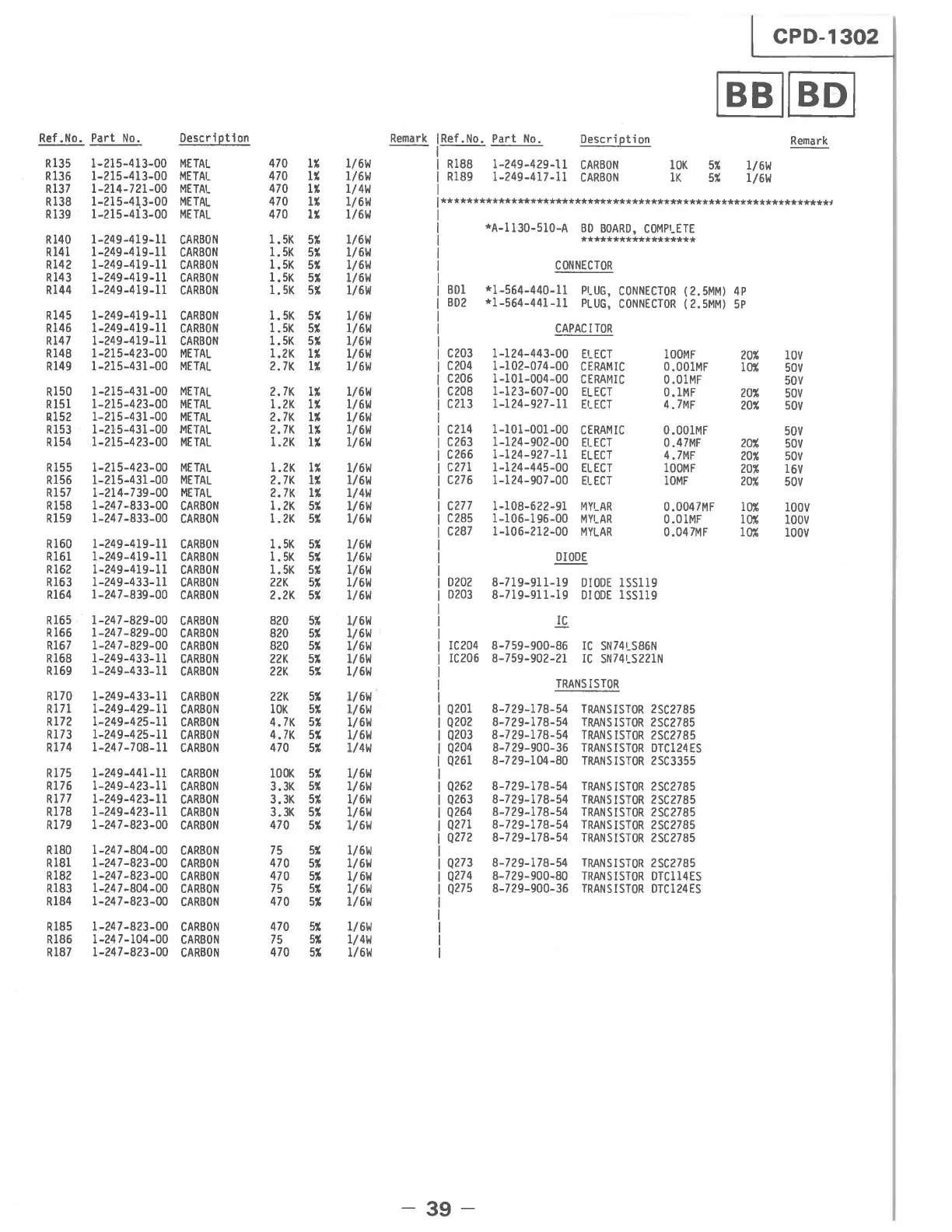

Sony Trinitron Multiscan CPD-1302 - Page 25

CPD-1302
IBBIIBDI
Ref .No. Part No.
Description
Remark IRef.No. Part No.
--1--
Description
Remark
R135
1-215-413-00
METAL 470 1% 1/6W
1 R188
1-249-429-11 CARBON
10K
5%
1/6W
R136
1-215-413-00 METAL
470 1% 1/6W
1 R189
1-249-417-11 CARBON
1K
5%
1/6W
R137
1-214-721-00 METAL
470
1%
1/4W
1
R138
1-215-413-00
METAL 470 1%
1/6W
****************************************************** *******~
R139 1-215-4i3-00 METAL
470
1%
1/6W
*A-1130-510-A
BD BOARD, COMPLETE
R140 1-249-419-11
CARBON
1.5K 5% l/6W
******************
R141
1-249-419-11 CARBON 1.5K 5% 1/6W
R142
1-249-419-11
CARBON
1.5K 5% 1/6W
CONNECTOR
R143
1-249-419-11
CARBON
1.5K 5% 1/6W
R144
1-249-419-11
CARBON
1. 5K 5% 1/6W
BD1
*1-564-440-11
P'_UG, CONNECTOR
(2.5MM) 4P
BD2
*1-564-441-11
PLUG, CONNECTOR ( 2.5MM)
5P
R145
1-249-419-11
CARBON
1. 5K 5% 1/6W
R146
1-249-419-11
CARBON 1.5K
5% 1/6W CAPACITOR
R147 1-249-419-11 CARBON 1.5K 5% 1/6W
R148
1-215-423-00 METAL 1.2K 1% l/6W
C203
1-124-443-00
ELECT
100MF
20% 10V
R149 1-215-431-00 METAL 2.7K 1% 1/6W
C204
1-102-074-00
CERAMIC
O.OOlMF
10%
50V
C206
1-101-004-00
CERAMIC
O.OlMF
50V
R150
1-215-431-00 METAL 2.7K 1% l/6W
C208
1-123-607-00
ELECT O.lMF
20%
50V
R151
1-215-423-00 METAL 1.2K 1% 1/6W
C213
1-124-927-11
ELECT
4.7MF
20%
50V
R152 1-215-431-00 METAL 2.7K 1% 1/6W
R153 1-215-431-00 METAL 2.7K
1% 1/6W
C214
1-10 1-001-00 CERAMIC
O.OOlMF
50V
R154 1-215-423-00 METAL 1.2K
1% 1/6W
C263
1-124-902-00
ELECT
0.47MF
20%
50V
C266
1-124-927-11
ELECT 4.7MF
20% 50V
R155 1-215-423-00 METAL 1.2K 1%
l/6W
e271
1-124-445-00
ELECT
100MF
20%
16V
R156
1-215-431-00 METAL 2.7K 1% l/6W
C276
1-124-907-00
ELECT 10MF
20%
50V
R157
1-214-739-00 METAL 2.7K 1% 1/4W
R158
1-247-833-00
CARBON
1.2K 5% 1/6W
C277
1-108-622-91 MYLAR
0.0047MF
10%
100V
R159
1-247-833-00 CARBON 1.2K 5% 1/6W
C285
1-106-196-00
MYLAR O.OlMF
10%
100V
C287
1-106-212-00 MYLAR
0.047MF
10%
100V
R160
1-249-419-11
CARBON
1.5K 5% l/6W
R161 1-249-419-11 CARBON
1. 5K 5% l/6W
DIODE
R162
1-249-419-11
CARBON
1.5K 5% 1/6W
R163
1-249-433-11 CARBON 22K
5%
1/6W 0202
8-719-911-19 DIODE 155119
R164 1-247-839-00 CARBON
2.2K 5% 1/6W
0203
8-719-911-19 DIODE 155119
R165
1-247-829-00 CARBON 820
5% l/6W
IC
R166
1-247-829-00 CARBON
820 5% 1/6W
R167
1-247-829-00 CARBON 820 5% 1/6W
IC204
8-759-900-86 IC SN74LS86N
R168
1-249-433-11 CARBON
22K 5% 1/6W
IC206
8-759-902-21 IC SN74LS221N
R169
1-249 -43 3-11 CARBON
22K 5% 1/6W
TRANSISTOR
R170
1-249-433-11
CARBON
22K 5% 1/6W
Rl71
1-249-429-11 CARBON 10K 5%
1/6W
Q201
8-729-178-54 TRANSISTOR 2SC2785
R172
1-249-425-11 CARBON
4.7K
5%
1/6W
Q202
8-729-178-54 TRANSISTOR 2SC2785
R173
1-249-425-11
CARBON 4.7K
5% 1/6W
Q203
8-729-178-54
TRANSISTOR 2SC2785
R174
1-247-708-11
CARBON
470
5% 1 /4W
Q204
8-729-900-36
TRANSISTOR DTC124ES
Q261
8-729-104-80 TRANSISTOR 2SC3355
R175
1-249-441-11 CARBON lOOK 5% 1/6W
R176
1-249-423-11 CARBON
3.3K
5% 1/6W Q262
8-729-178-54 TRANSISTOR 2SC2785
Rl77
1-249-423-11 CARBON 3.3K 5% 1/6W Q263
8-729-178-54 TRANSISTOR 2SC2785
R178
1-249-423-11 CARBON 3.3K 5% l/6W
Q264
8-729-178-54 TRANSISTOR 2SC2785
R179
1-247-823-00
CARBON
470
5% 1 /6W
Q271 8-729-178-54
TRANSISTOR 2SC2785
Q272
8-729-178-54 TRANSISTOR 2SC2785
R180
1-247 -804 -00 CARBON 75 5% 1/6W
R181
1-247-823-00
CARBON
470
5%
1/6W
Q273
8-729-178-54 TRANSISTOR 2SC2785
R182
1-247-823-00 CARBON 470
5% 1/6W
Q274
8-729-900-80 TRANSISTOR DTC114ES
R183
1-247-804-00 CARBON 75 5%
1/6W
Q275
8-729-900-36
TRANSISTOR DTC124ES
R184
1-247-823-00 CARBON 470
5%
1/6W
R185
1-247-823-00 CARBON
470 5% l/6W
R186
1-247-104-00 CARBON
75 5% 1/4W
R187
1-247-823-00 CARBON
470
5%
1/6W
- 39-
