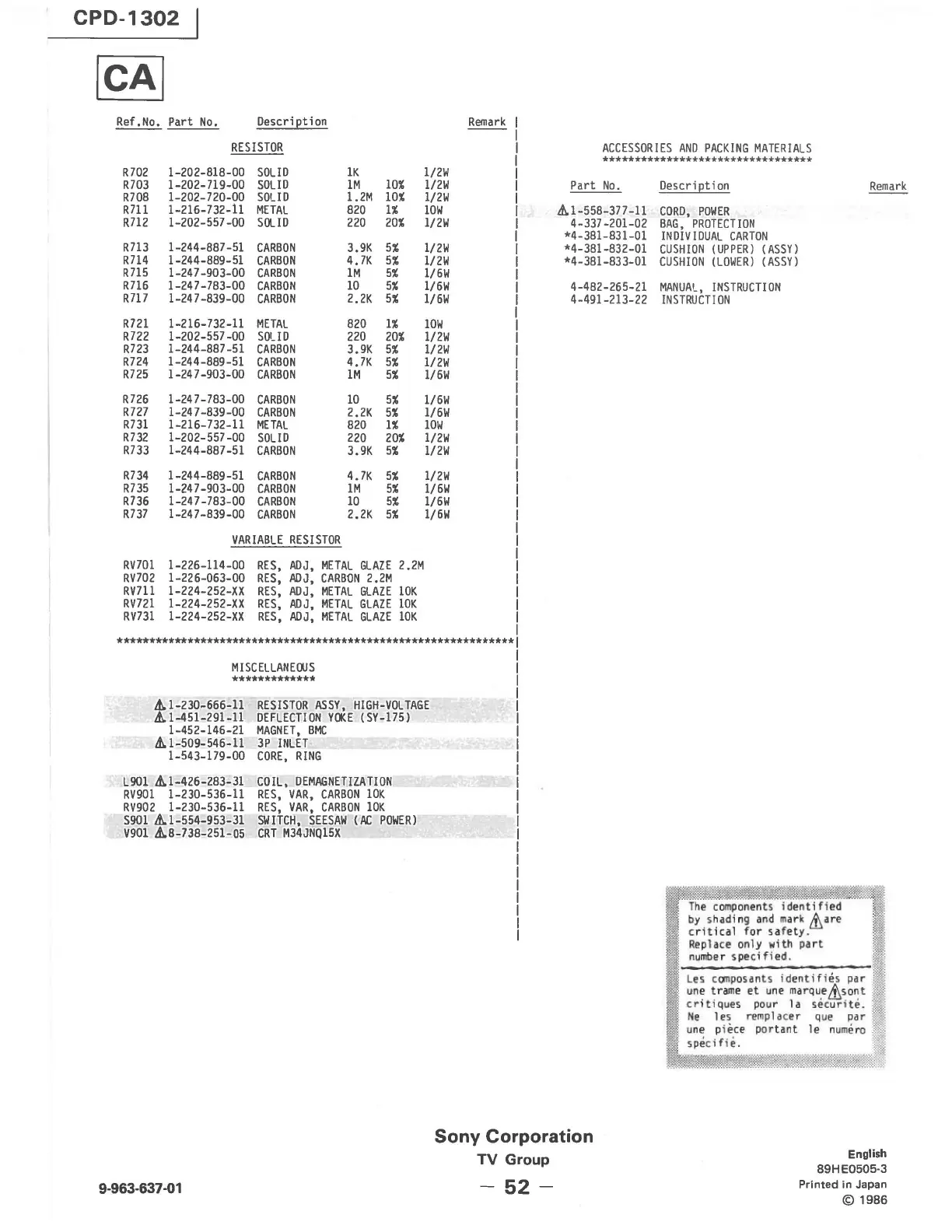

CPD-1302
ICA
I
Ref. No. Part No.
Descrietion Remark
RESISTOR
R702
1-202-818-00 SOLID
1K l/2W
R703
1-202-719-00
SOLID 1M
10%
1/2W
R708
1-202-720-00
SOLID 102M 10%
1/2W
R711
1-216-732-11
METAL 820 1%
lOW
R712 1-202-557-00 SOLID 220 20% 1/2W
R713
1-244-887-51 CAR80N
3.9K 5% 1/2W
R714
1-244-889-51 CAR80N
4.7K
5% 1/2W
R715
1-247-903-00
CARBON 1M 5%
1/6W
R716
1-247-783-00
CARBON 10
5% 1/6W
R717
1-247-839-00 CARBON 2.2K 5%
1/6W
R721
1-216-732-11
METAL 820
1%
lOW
R722
1-202-557-00
SOLID 220
20% 1/2W
R723 1-244-887-51 CARBON
3.9K 5% 1/2W
R724 1-244-889-51 CARBON 4.7K
5% 1/2W
R725
1-247-903-00 CARBON 1M
5% 1/6W
R726
1-247-783-00 CARBON 10
5% 1/6W
R727
1-247-839-00 CARBON 2.2K
5%
1/6W
R731
1-216-732-11 METAL 820
1%
lOW
R732
1-202-557 -00
SOLID
220
20%
1/2W
R733
1-244-887-51 CARBON 3.9K 5% 1/2W
R734
1-244-889-51 CARBON 4.7K
5%
1/2W
R735
1-247-903-00 CARBON
1M
5% 1/6W
R736
1-247-783-00 CARBON 10 5% 1/6W
R737
1-247-839-00
CARBON 2.2K 5% 1/6W
VARIABLE RESISTOR
RV701
1-226-114-00 RES, ADJ, METAL GLAZE 2.2M
RV702
1-226-063-00 RES, ADJ,
CARBON 2.2M
RV711
1-224-252-XX RES, ADJ, METAL GLAZE 10K
RV721
1-224-252-XX
RES, ADJ, METAL GLAZE 10K
RV731
1-224-252-XX RES, ADJ, METAL GLAZE 10K
**************************************************************
MISCELLANEOUS
*************
~1-230-666-11 RESISTOR ASSY, HIGH-VOLTAGE
~1-451-291-11 DEFLECTION YOKE (SY-175)
1-452-146-21 MAGNET, BMC
~1-509-546-11 3P INLET
1-543-179-00 CORE, RING
L901 ~1-426-283-31 COIL, DEMAGNETIZATION
RV901 1-230-536-11 RES, VAR, CARBON 10K
RV902 1-230-536-11 RES, VAR, CARBON 10K
S901 ~1-554-953-31 SWITCH, SEESAW (AC POWER)
V901 ~8-738-251-05 CRT M34JNQ15X
ACCESSORIES AND PACKING MATERIALS
*********************************
Part No.
Descrietion
~1-558-377-11 CORD, POWER
4-337-201-02 BAG, PROTECTION
*4-381-831-01 INDIVIDUAL CARTON
*4-381-832-01 CUSHION (UPPER) (ASSY)
*4-381-833-01 CUSHION (LOWER) (ASSY)
4-482-265-21 MANUAL, INSTRUCTION
4-491-213-22 INSTRUCTION
The components identified
Remark
by shading and mark &are ' ,
c ritical for safety . "
Replace onl~ ~ith part I
~:~::~:::~:~e:~ent i f i ~s ~r I"':
une trame et une marque&sont :
cri t iques pour 1a sec ur i te . • "
Ne les remp lac er que par ,:;
une piece portant Ie nume ro 'fill
. spe c ,~ (i e. , "':',~::::;~a11
Sony Corporation
TV Group
English
89HE0505-3
Printed in Japan
© 1986
9-963-637 -01
- 52-
