SUPERIMPOSING A PICTURE FROM A MICROCOM-
PUTER OVER A PICTURE FROM A VIDEO EQUIP-
MENT OR MIXING THESE TWO PICTURES
Using the Sony SMI-7073 superimposer, a picture from a
microcomputer can be superimposed on this monitor’s
screen over a picture from video equipment.
When the SMC-70 microcomputer is used, superimposition
of pictures from a video disc player and from the SMC-70 is
possible. When the SMC-70G microcomputer is used,
superimposition of pictures from the SMC-70G and video
equipment in addition to a video disc player, such as a video
camera or a VTR, is possible.
LINE A AUDIO IN
AUDIO!
ouT
"
aia ||
rs (@ vinec]| a 8
orrla l
on
Pa}
IN
{
AUDIO’
t
our
LINE 8
Lei)
9)
oN
la 759 EXT SYNC
OFF

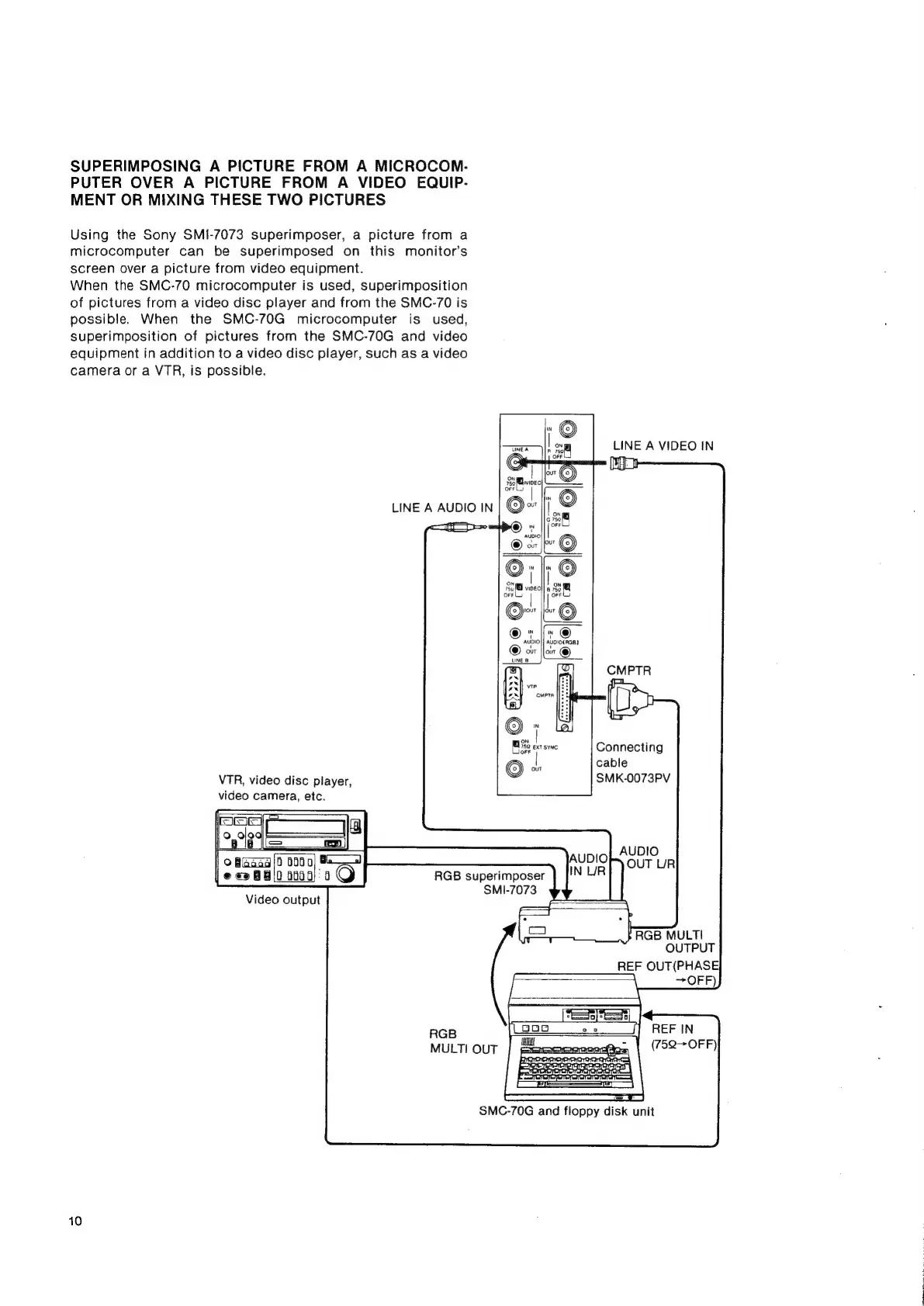

Connecting
cable
SMK-0073PV
VTR, video disc player,
video camera, etc.
bla = {i=
0 Biaaad'0 0000
© © B80 6659):
Video output
RGB superimposer
SMI-7073
RGB MULTI
OUTPUT
REF OUT(PHASE
RGB
MULTI OUT
SMC-70G and fioppy disk unit
