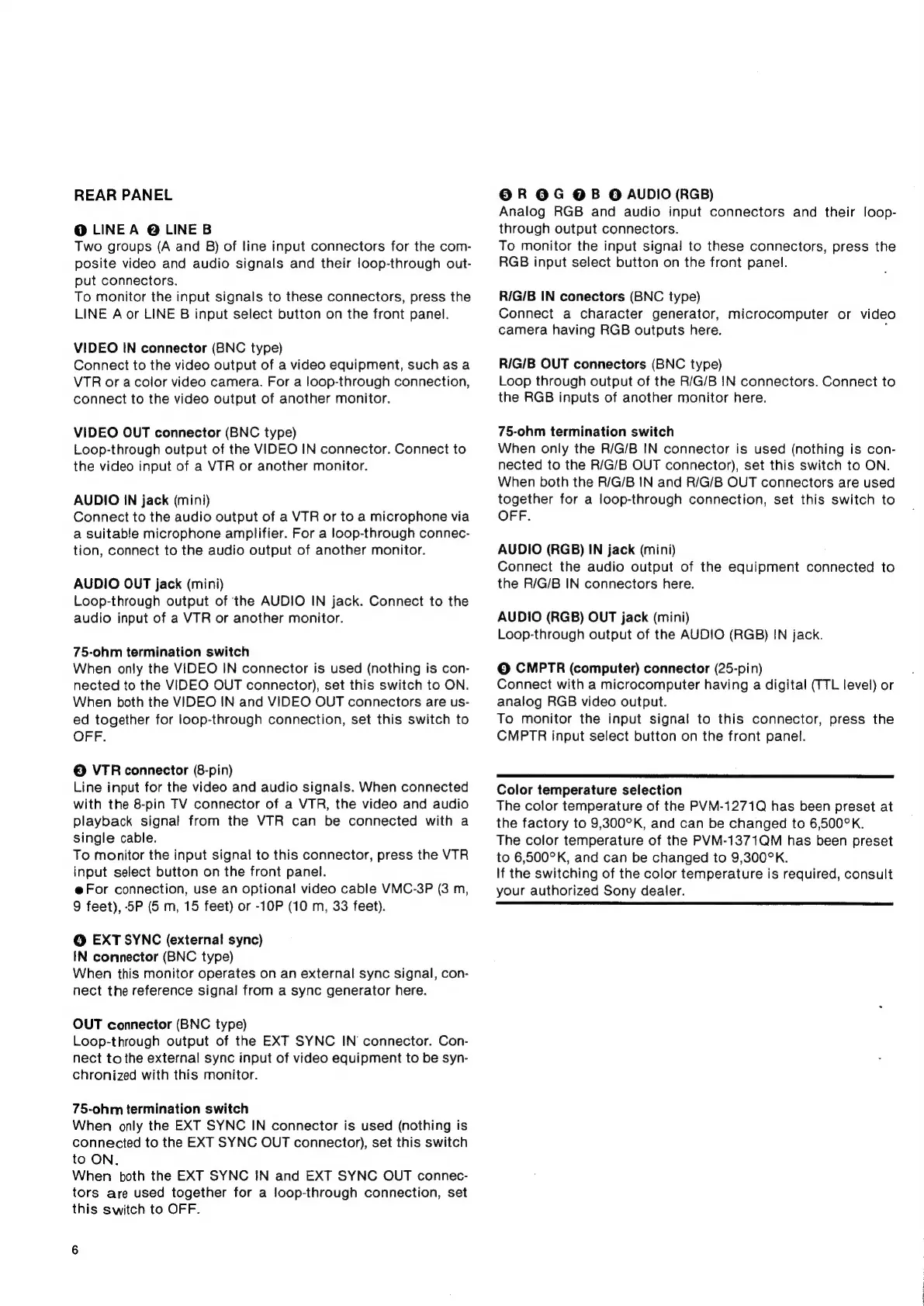

REAR
PANEL
@
LINEA
@LINEB
Two
groups
(A
and
B)
of
line
input
connectors
for
the
com-
posite
video
and
audio
signals
and
their
loop-through
out-
put
connectors.
To
monitor
the
input
signals
to
these
connectors,
press
the
LINE
A
or
LINE
B
input
select
button
on
the
front
panel.
VIDEO
IN
connector
(BNC
type)
Connect
to
the
video
output
of
a
video
equipment,
such
as
a
VTR
or
a
color
video
camera.
For
a
loop-through
connection,
connect
to
the
video
output
of
another
monitor.
VIDEO
OUT
connector
(BNC
type)
Loop-through
output
of
the
VIDEO
IN
connector.
Connect
to
the
video
input
of
a
VTR
or
another
monitor.
AUDIO
IN
jack
(mini)
Connect
to
the
audio
output
of
a
VTR
or
to
a
microphone
via
a
suitable
microphone
amplifier.
For
a
loop-through
connec-
tion,
connect
to
the
audio
output
of
another
monitor.
AUDIO
OUT
jack
(mini)
Loop-through
output
of
‘the
AUDIO
IN
jack.
Connect
to
the
audio
input
of
a
VTR
or
another
monitor.
75-ohm
termination
switch
When
only
the
VIDEO
IN
connector
is
used
(nothing
is
con-
nected
to
the
VIDEO
OUT
connector),
set
this
switch
to
ON.
When
both
the
VIDEO
IN
and
VIDEO
OUT
connectors
are
us-
ed
together
for
loop-through
connection,
set
this
switch
to
OFF.
©
VTR
connector
(8-pin)
Line
input
for
the
video
and
audio
signals.
When
connected
with
the
8-pin
TV
connector
of
a
VTR,
the
video
and
audio
playback
signal
from
the
VTR
can
be
connected
with
a
single
cable.
To
monitor
the
input
signal
to
this
connector,
press
the
VTR
input
select
button
on
the
front
panel.
eFor
connection,
use
an
optional
video
cable
VMC-3P
(3
m,
9
feet),
5P
(6
m,
15
feet)
or
-10P
(10
m,
33
feet).
©
EXT
SYNC
(external
sync)
IN
connector
(BNC
type)
When
this
monitor
operates
on
an
external
sync
signal,
con-
nect
the
reference
signal
from
a
sync
generator
here.
OUT
connector
(BNC
type)
Loop-through
output
of
the
EXT
SYNC
IN
connector.
Con-
nect
to
the
external
sync
input
of
video
equipment
to
be
syn-
chronized
with
this
monitor.
75-ohm
termination
switch
When
only
the
EXT
SYNC
IN
connector
is
used
(nothing
is
connected
to
the
EXT
SYNC
OUT
connector),
set
this
switch
to
ON.
When
both
the
EXT
SYNC
IN
and
EXT
SYNC
OUT
connec-
tors
are
used
together
for
a
loop-through
connection,
set
this
switch
to
OFF.
@®R
OG
OB
O
AUDIO
(RGB)
Analog
RGB
and
audio
input
connectors
and
their
loop-
through
output
connectors.
To
monitor
the
input
signal
to
these
connectors,
press
the
RGB
input
select
button
on
the
front
panel.
R/G/B
IN
conectors
(BNC
type)
Connect
a
character
generator,
microcomputer
or
video
camera
having
RGB
outputs
here.
.
R/G/B
OUT
connectors
(BNC
type)
Loop
through
output
of
the
R/G/B
IN
connectors.
Connect
to
the
RGB
inputs
of
another
monitor
here.
75-ohm
termination
switch
When
only
the
R/G/B
IN
connector
is
used
(nothing
is
con-
nected
to
the
R/G/B
OUT
connector),
set
this
switch
to
ON.
When
both
the
R/G/B
IN
and
R/G/B
OUT
connectors
are
used
together
for
a
loop-through
connection,
set
this
switch
to
OFF.
AUDIO
(RGB)
IN
jack
(mini)
Connect
the
audio
output
of
the
equipment
connected
to
the
R/G/B
IN
connectors
here.
AUDIO
(RGB)
OUT
jack
(mini)
Loop-through
output
of
the
AUDIO
(RGB)
IN
jack.
©
CMPTR
(computer)
connector
(25-pin)
Connect
with
a
microcomputer
having
a
digital
(TTL
level)
or
analog
RGB
video
output.
To
monitor
the
input
signal
to
this
connector,
press
the
CMPTR
input
select
button
on
the
front
panel.
Color
temperature
selection
The
color
temperature
of
the
PVM-1271Q
has
been
preset
at
the
factory
to
9,300°K,
and
can
be
changed
to
6,500°K.
The
color
temperature
of
the
PVM-1371QM
has
been
preset
to
6,500°K,
and
can
be
changed
to
9,300°K.
If
the
switching
of
the
color
temperature
is
required,
consult
your
authorized
Sony
dealer.
