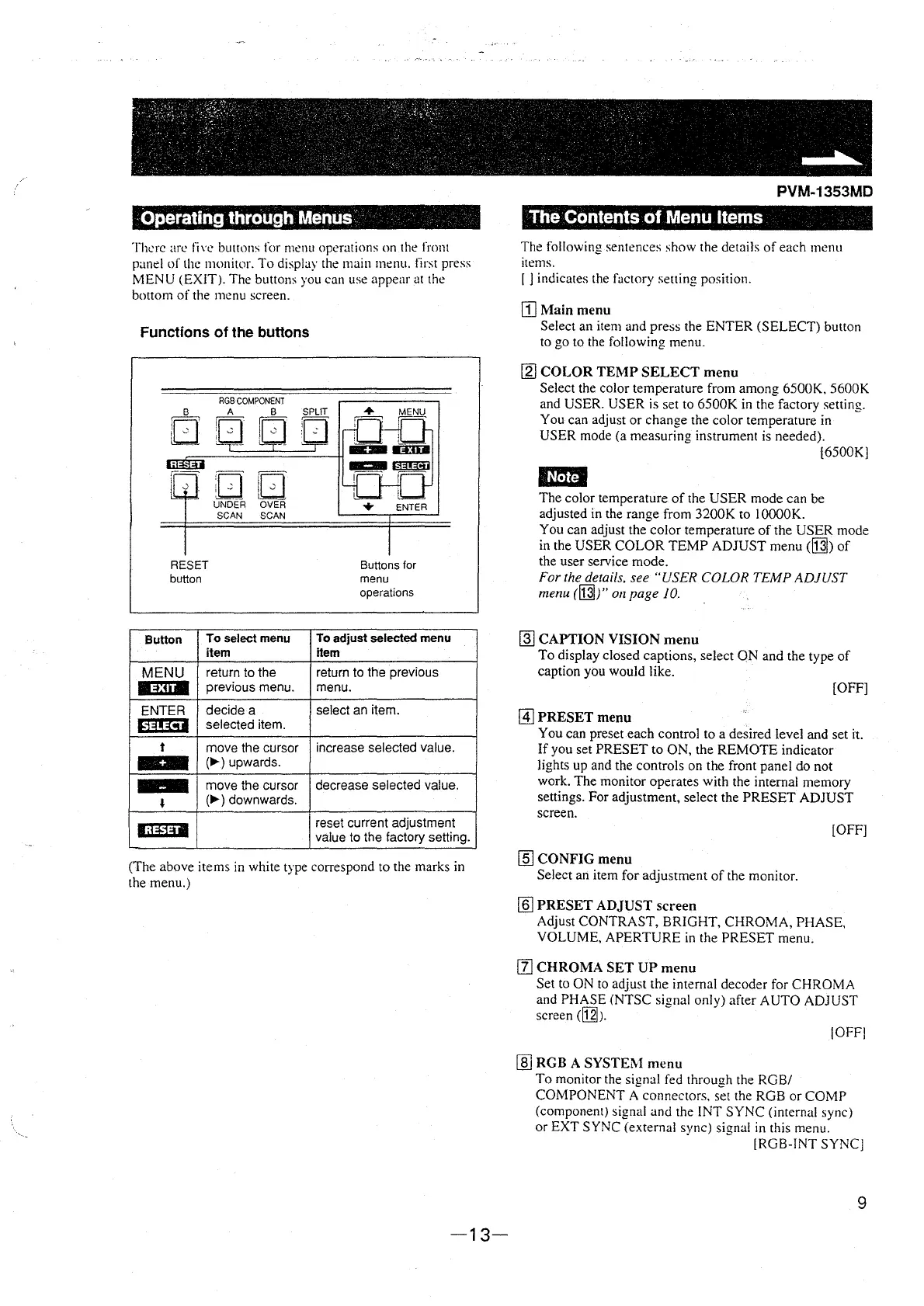

· Operating through Menus·
There are fin: buttons for menu operations on the front
panel of the monitor. To display the main menu. first press
MENU (EXIT). The buttons you can use appear at the
bottom of the menu screen.
Functions of the buttons
RGB COMPONENT
B A B SPLIT
nu GD
lLJ L_7___ =r--;_
DD
UNDER OVER
SCAN SCAN
RESET
button
Button
To select menu
item
MENU
return to the
11~:1111
previous menu.
ENTER
decide a
l1~!!~1
selected item.
t
move the cursor
(..,._) upwards.
move the cursor
•
(..,._) downwards .
liiil~I
Buttons for
menu
operations
To adjust selected menu
Item
return to the previous
menu.
select an item.
increase selected value.
decrease selected value.
reset current adjustment
value to the factory setting.
(The above items in white type correspond to the marks in
the menu.)
-13-
PVM-1353MD
The Contents of Menu Items
The following sentences show the details of each menu
items.
r J indicates the factory setting position.
[]Main menu
Select an item and press the ENTER (SELECT) button
to go to the following menu.
[g:j COLOR TEMP SELECT menu
Select the color temperature from among 6500K, 5600K
and USER. USER is set to 6500K in the factory setting.
You can adjust or change the color temperature in
USER mode (a measuring instrument is needed).
[6500K]
IMUI
The color temperature of the USER mode can be
adjusted in the range from
3200K to I OOOOK.
You can adjust the color temperature of the USER mode
in the USER COLOR TEMP ADJUST menu
(M) of
the user service mode.
For the details, see "USER COLOR TEMP ADJUST
menu (M)" on page 10.
~
CAPTION VISION menu
To display closed captions, select ON and the type of
caption you would like.
[OFF]
@] PRESET menu
You can preset each control to a desired level and set it.
If you set PRESET to ON, the REMOTE indicator
lights up and the controls on the front panel do not
work. The monitor operates with the internal memory
settings. For adjustment, select the PRESET ADJUST
screen.
[OFF]
[§] CONFIG menu
Select an item for adjustment of the monitor.
[§] PRESET ADJUST screen
Adjust CONTRAST, BRIGHT, CHROMA, PHASE,
VOLUME, APERTURE in the PRESET menu.
[I] CHROMA SET UP menu
Set to ON to adjust the internal decoder for CHROMA
and PHASE (NTSC signal only) after AUTO ADJUST
screen
([j]J.
!OFFJ
ffi] RGB A SYSTEl\I menu
To monitor the signal fed through the RGB/
COMPONENT A connectors. set the RGB or COMP
(component) signal and the INT SYNC (internal sync)
or EXT SYNC (external sync) signal in this menu.
[RGB-lNT SYNC]
9
