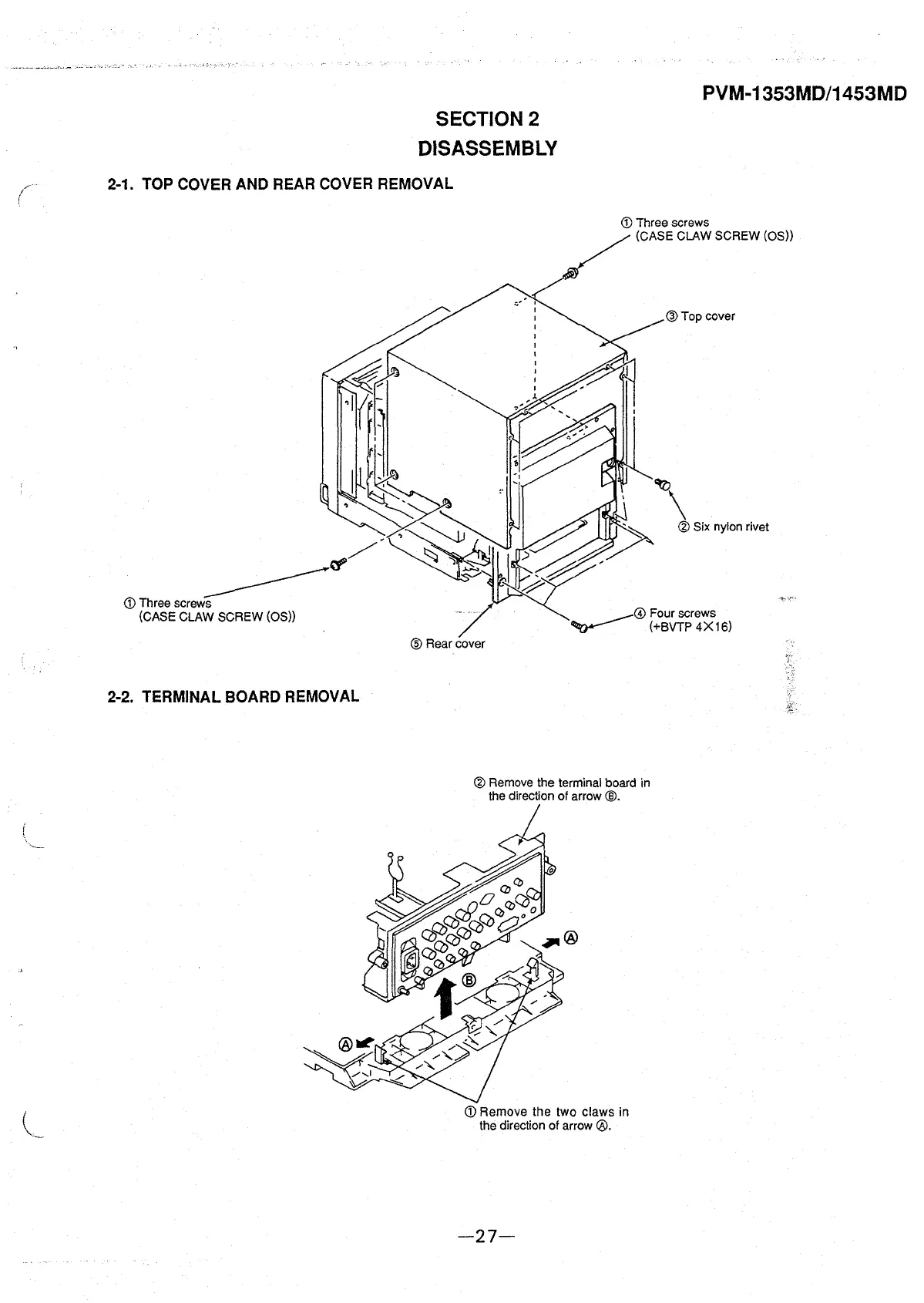

SECTION 2
DISASSEMBLY
PVM-1353MD/1453MD
2-1. TOP COVER AND REAR COVER REMOVAL
2-2. TERMINAL BOARD REMOVAL
CD Three screws
(CASE CLAW SCREW (OS))
® Remove the terminal board in
the direction of arrow
®·
CD Remove the two claws in
the direction of arrow
®·
-27-
@Top cover
® Six nylon rivet
