Sony Trinitron PVM-1353 - Exploded Views; Chassis

NOTE:
• Items with no part number and no des-
cription are not stocked because they
are seldom required for routine service.
• The construction parts of an assembled
part are indicated with a collation
number in the remark column.
• Items marked "
* " are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.

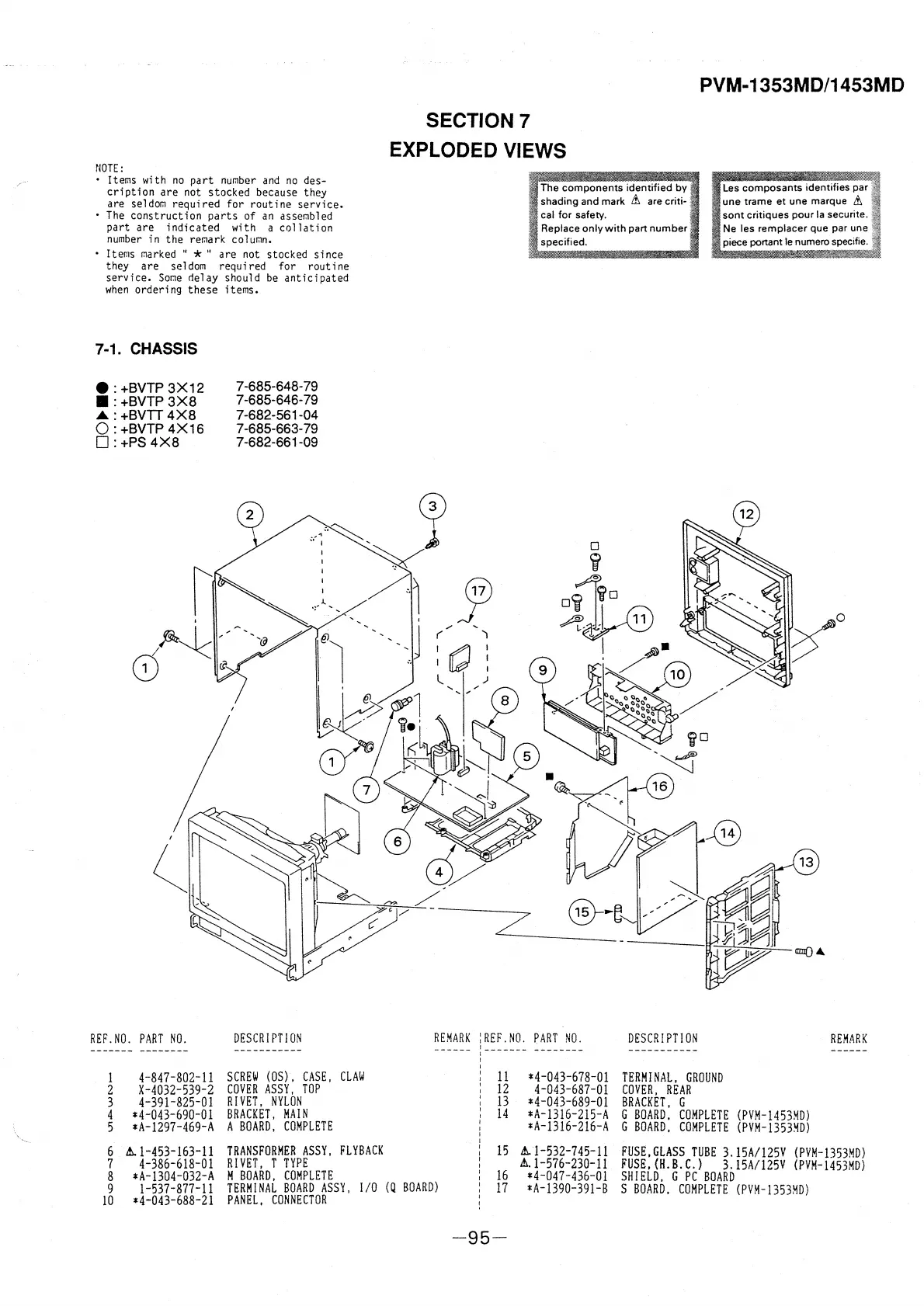

7-1. CHASSIS
e: +BVTP 3X12
• : +BVTP 3X8
_... :+BVTI4X8
0: +BVTP 4X16
D :+PS4X8
REF.NO. PART NO.
1
4-847-802-11
2
X-4032-539-2
3 4-391-825-01
4
*4-043-690-01
5
*A-1297-469-A
6
.t.. 1-453-163-11
7 4-386-618-01
8
*A-1304-032-A
7-685-648· 79
7-685-646· 79
7-682-561-04
7-685-663-79
7-682-661-09
DESCRIPTION
SCREW (OS), CASE,
COVER ASSY, TOP
RI VET, NYLON
BRACKET, MAIN
A BOARD, COMPLETE
CLAW
TRANSFORMER ASSY, FLYBACK
RIVET, T TYPE
M BOARD, COMPLETE
PVM-1353MD/1453MD
SECTION 7
EXPLODED VIEWS
The components identified by
shading and mark
& are criti·
cal for safety.
Replace only with part number
specified.
Les composants identifies par
une trame et une marque &
sont critiques pour la securite.
Ne les remplacer que par une
piece
portant le numero specifie.
z
REMARK REF.NO. PART NO.
DES CR I PT I ON
REMARK
11
*4-043-678-01 TERMINAL, GROUND
12
4-043-687-01 COVER, REAR
13
*4-043-689-01
BRACKET, G
14
*A· 1316-215-A
G BOARD, COMPLETE (PVM-1453MD)
*A-1316-216-A
G BOARD, COMPLETE (PVM-!353MD)
15
.t..1-532-7 45-11
FUSE.GLASS TUBE 3.15A/125V (PVM-1353MD)
it.. 1-576-230-11
FUSE, (H.B.C.} 3.15A/125V (PVM-1453MD)
16
*4-047-436-01
9
1-537-877-11
TERMINAL BOARD ASSY,
1/0
(Q BOARD)
17
*A-1390-391-B
SHIELD, G PC BOARD
S BOARD. COMPLETE (PVM-1353MD)
10
*4-043-688-21
PANEL, CONNECTOR
