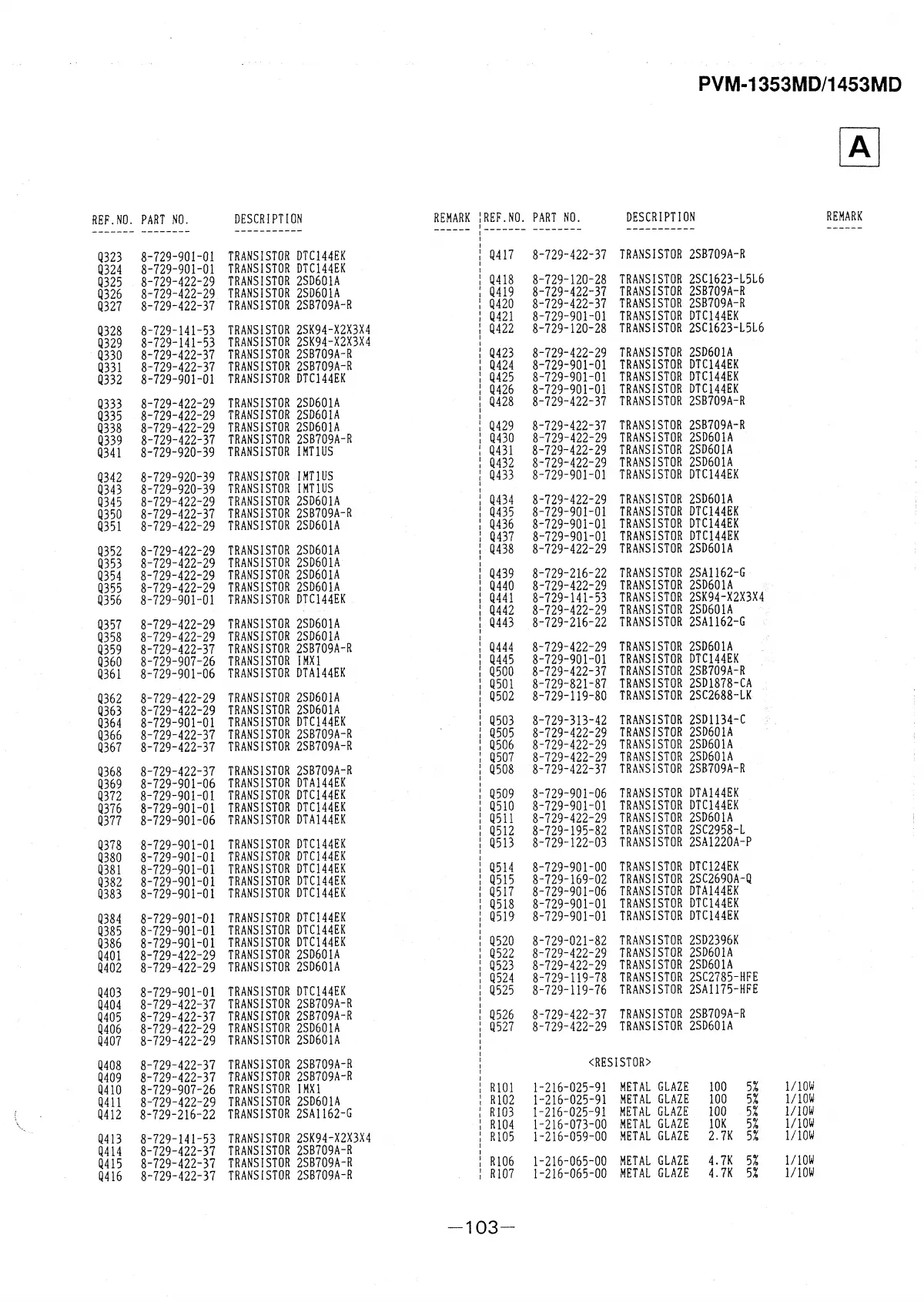

PVM-1353MD/1453MD
~
REF.NO. PART NO.
DES CR I PT I ON
REMARK
REF.NO. PART ND.
DESCRIPTION
REMARK
------- --------
-----------
------- --------
________ .... __
Q323
8-729-901-01
TRANSISTOR DTC144EK
Q417 8-729-422-37
TRANSISTOR 2SB709A-R
Q324
8-729-901-01
TRANSISTOR DTC144EK
Q325
8-729-422-29
TRANSISTOR 2SD601A
Q418
8-729-120-28
TRANSISTOR 2SC1623-L5L6
Q326
8-729-422-29
TRANSISTOR 2SD601A
Q419
8-729-422-37
TRANSISTOR 2SB709A-R
Q327
8-729-422-37
TRANSISTOR 2SB709A-R
Q420 8-729-422-37
TRANSISTOR 2SB709A-R
Q421
8-729-901-01
TRANSISTOR DTC144EK
Q328
8-729-141-53
TRANSISTOR 2SK94-X2X3X4
Q422
8-729-120-28
TRANSISTOR 2SC1623-L5L6
Q329
8-729-141-53
TRANSISTOR 2SK94-X2X3X4
Q330
8-729-422-37
TRANSISTOR 2SB7D9A-R
Q423
8-729-422-29
TRANSISTOR 2SD6D1A
Q331
8-729-422-37
TRANSISTOR 2SB709A-R
Q424 8-729-901-01
TRANSISTOR DTC144EK
Q332
8-729-901-01
TRANSISTOR DTC144EK
Q425 8-729-901-01
TRANSISTOR DTC144EK
Q426
8-729-901-01
TRANSISTOR DTC144EK
Q333
8-729-422-29
TRANSISTOR 2SD601A
Q428 8-729-422-37
TRANSISTOR 2SB709A-R
Q335
8-729-422-29
TRANSISTOR 2SD601A
Q338
8-729-422-29
TRANSISTOR 2SD601A
Q429
8-729-422-37
TRANSISTOR 2SB709A-R
Q339
8-729-422-37
TRANSISTOR 2SB709A-R
Q430
8-729-422-29
TRANSISTOR 2SD601A
Q341
8-729-920-39
TRANSISTOR IMTlUS
Q431 8-729-422-29
TRANSISTOR 2SD601A
Q432
8-729-422-29
TRANSISTOR 2SD601A
Q342 8-729-920-39
TRANSISTOR IMTlUS
Q433 8-729-901-01
TRANSISTOR DTC144EK
Q343
8-729-920-39
TRANSISTOR IMTlUS
Q345
8-729-422-29
TRANSISTOR 2SD601A
Q434
8-729-422-29
TRANSISTOR 2SD601A
Q350
8-729-422-37
TRANSISTOR 2SB709A-R
Q435
8-729-901-01
TRANSISTOR DTC144EK
Q351
8-729-422-29
TRANSISTOR 2SD601A
Q436
8-729-901-01
TRANSISTOR DTC144EK
Q437
8-729-901-01
TRANSISTOR DTC144EK
Q352
8-729-422-29
TRANSISTOR 2SD601A
Q438
8-729-422-29
TRANSISTOR 2SD601A
Q353
8-729-422-29
TRANSISTOR 2SD601A
Q354
8-729-422-29
TRANSISTOR 2SD601A
Q439 8-729-216-22
TRANSISTOR 2SA1162-G
Q355
8-729-422-29
TRANSISTOR 2SD601A
Q440 8-729-422-29
TRANSISTOR 2SD601A
Q356
8-729-901-01
TRANSISTOR DTC144EK
Q441 8-729-141-53
TRANSISTOR 2SK94-X2X3X4
Q442
8-729-422-29
TRANSISTOR 2SD601A
Q357
8-729-422-29
TRANSISTOR 2SD601A
Q443
8-729-216-22
TRANSISTOR 2SA1162-G
Q358
8-729-422-29
TRANSISTOR 2SD601A
Q359
8-729-422-37
TRANSISTOR 2SB7D9A-R
Q444 8-729-422-29
TRANSISTOR 2SD601A
Q360
8-729-907-26
TRANSISTOR I MX 1
Q445 8-729-901-01
TRANSISTOR DTC144EK
Q361
8-729-901-06
TRANSISTOR DTA144EK
Q500
8-729-422-37
TRANSISTOR 2SB709A-R
Q501
8-729-821-87
TRANSISTOR 2SD1878-CA
Q362
8-729-422-29
TRANSISTOR 2SD601A
Q502
8-729-119-80
TRANSISTOR 2SC2688-LK
Q363
8-729-422-29
TRANSISTOR 2SD601A
Q364
8-729-901-01
TRANSISTOR DTC144EK
Q503
8-729-313-42
TRANSISTOR 2SD1134-C
Q366
8-729-422-37
TRANSISTOR 2SB709A-R
Q505
8-729-422-29
TRANSISTOR 2SD601A
Q367 8-729-422-37
TRANSISTOR 2SB709A-R
Q506 8-729-422-29
TRANSISTOR 2SD601A
Q507 8-729-422-29
TRANSISTOR 2SD601A
Q368
8-729-422-37
TRANSISTOR 2SB709A-R
Q508 8-729-422-37
TRANSISTOR 2SB709A-R
Q369
8-729-901-06
TRANSISTOR DTA144EK
Q372
8-729-901-01
TRANSISTOR DTC144EK
Q509
8-729-901-06
TRANSISTOR DTA144EK
Q376
8-729-901-01
TRANSISTOR DTC144EK
Q510
8-729-901-01
TRANSISTOR DTC144EK
Q377 8-729-901-06
TRANSISTOR DTA144EK
Q511
8-729-422-29
TRANSISTOR 2S0601A
Q512 8-729-195-82
TRANSISTOR 2SC2958-L
Q378
8-729-901-01
TRANSISTOR DTC144EK
Q513
8-729-122-03
TRANSISTOR 2SA1220A-P
Q380
8-729-901-01
TRANSISTOR DTC144EK
Q381
8-729-901-01
TRANSISTOR DTC144EK
Q514
8-729-901-00
TRANSISTOR DTC124EK
Q382
8-729-901-01
TRANSISTOR DTC144EK
Q515
8-729-169-02
TRANSISTOR 2SC2690A-Q
Q383
8-729-901-01
TRANSISTOR DTC144EK
Q517 8-729-901-06
TRANSISTOR DTA144EK
Q518
8-729-901-01
TRANSISTOR DTC144EK
Q384
8-729-901-01
TRANSISTOR DTC144EK
Q51 'f 8-729-901-01
TRANSISTOR DTC144EK
Q385
8-729-901-01
TRANSISTOR DTC144EK
Q386
8-729-901-01
TRANSISTOR DTC144EK
Q520 8-729-021-82
TRANSISTOR 2SD2396K
Q401
8-729-422-29
TRANSISTOR 2SD601A
Q522
8-729-422-29
TRANSISTOR 2SD601A
Q402 8-729-422-29
TRANSISTOR 2SD601A
Q523
8-729-422-29
TRANSISTOR 2SD601A
Q524 8-729-119-78
TRANSISTOR 2SC2785-HFE
Q403
8-729-901-01
TRANSISTOR DTC144EK
Q525
8-729-119-76
TRANSISTOR 2SA1175-HFE
Q404
8-729-422-37
TRANSISTOR 2SB709A-R
Q405
8-729-422-37
TRANSISTOR 2SB709A-R
Q526 8-729-422-37
TRANSISTOR 2SB709A-R
Q406
8-729-422-29
TRANSISTOR 2SD601A
Q527 8-729-422-29
TRANSISTOR 2SD601A
Q407
8-729-422-29
TRANSISTOR 2SD601A
Q408
8-729-422-37
TRANSISTOR 2SB709A-R
<RESISTOR>
Q409
8-729-422-37
TRANSISTOR 2SB709A-R
Q410 8-729-907-26
TRANSISTOR IMXl
RIO!
1-216-025-91
METAL GLAZE
100 5%
1/lOW
Q411
8-729-422-29
TRANSISTOR 2SD601A
Rl02
1-216-025-91
MET AL GLAZE
100 5%
1/lDW
Q412 8-729-216-22
TRANSISTOR 2SA1162-G
R103
1-216-025-91
METAL GLAZE
100 5%
1/lOW
Rl04
1-216-073-00
METAL GLAZE
lOK
5%
1/lOW
Q413 8-729-141-53
TRANSISTOR 2SK94-X2X3X4
R105
1-216-059-00
METAL GLAZE
2.7K
5%
1/lOW
Q414
8-729-422-37
TRANSISTOR 2SB709A-R
Q415
8-729-422-37
TRANSISTOR 2SB709A-R
R106
1-216-065-00
METAL GLAZE 4.7K
5%
1/!0W
Q416
8-729-422-37
TRANSISTOR 2SB7D9A-R
R107
!-216-065-00
METAL GLAZE
4.7K
5%
1/lOW
