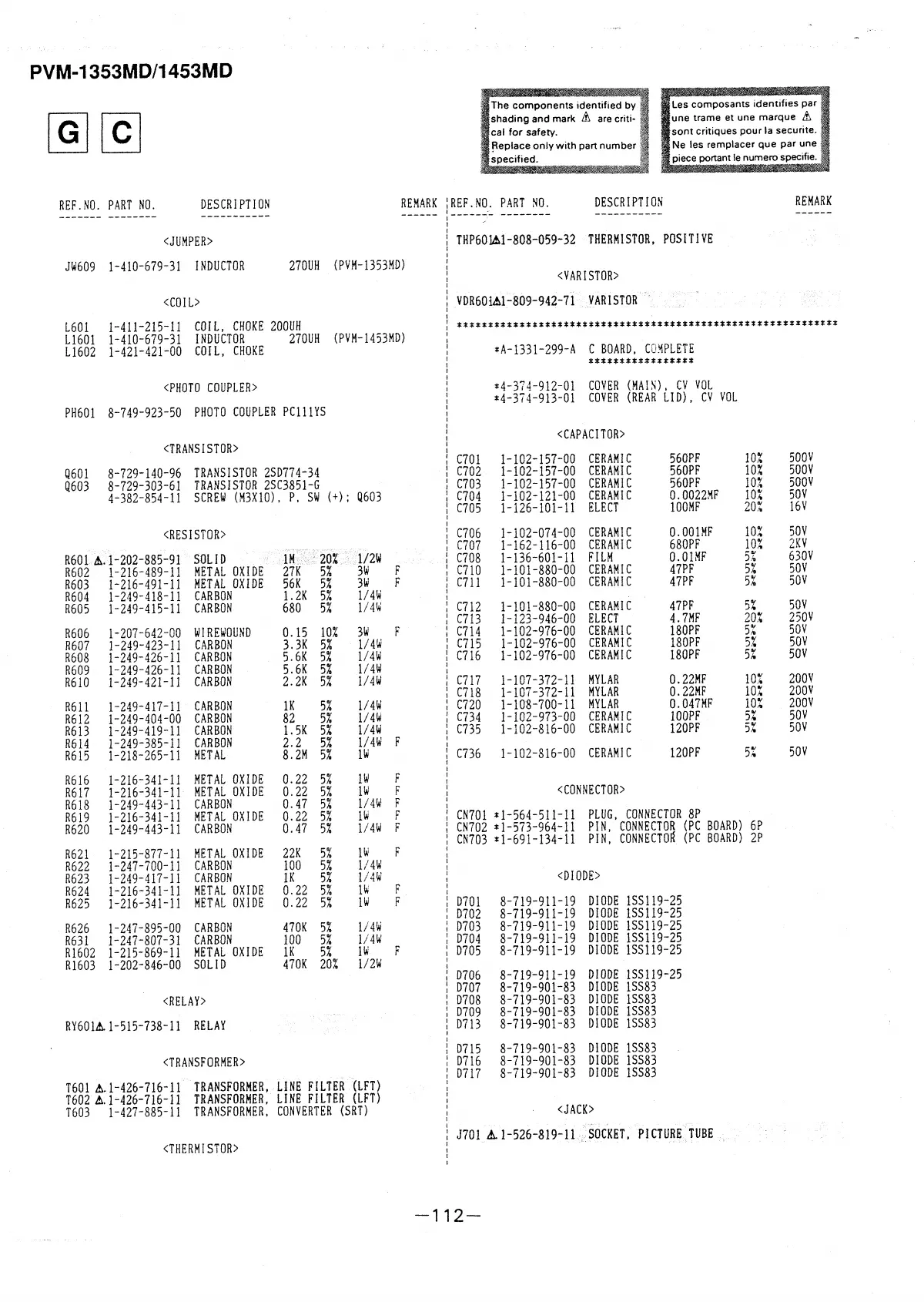

PVM-1353MD/1453MD
The components identified by
shading and mark
fr. are criti·
cal for safety.
!\eplace only with part number
specified.
Les composants identifies par
une trame et une marque
fr.
sont critiques pour la securite.
Ne les remplacer que par une
piece portant le numero specifie.
REF.NO. PART NO.
DESCRIPTION
REMARK REF.NO. PART NO.
DES CR I PT I ON
REMARK
<JUMPER>
JW609 1-410-679-31 INDUCTOR
270UH (PVM-1353MD)
<COIL>
L601
!-411-215-ll
COIL, CHOKE 200UH
L160!
1-410-679-31
INDUCTOR
270UH
(PVM-1453MD)
L1602
!-421-421-00
CO! L, CHOKE
<PHOTO COUPLER>
PH601 8-749-923-50
PHOTO COUPLER PCll!YS
<TRANSISTOR>
Q601 8-729-140-96
TRANSISTOR 2SD774-34
Q603
8-729-303-61
TRANSISTOR 2SC3851-G
4-382-854-11
SCREW (M3Xl0), P, SW (+); Q603
<RESISTOR>
R60l
t:...1-202-885-91
SOLID
1i?~<io%.
,<112w
R602
1-216-489-11
METAL OXIDE 27K
5%
3W
F
R603
1-216-491-11
METAL OXIDE 56K
5%
3W
F
R604
1-249-418-11
CARBON 1.2K
5%
1/4\t/
R605 1-249-415-11
CARBON 680 5%
1/4W
R606
!-207-642-00
WI REWOUND 0.15 10%
3W
F
R607
1-249-423-11
CARBON
3.3K
5%
l/4W
R608 1-249-426-11
CARBON
5.6K
5%
1/4\t/
R609 1-249-426-11
CARBON 5.6K
5%
1/4W
R610 1-249-421-11
CARBON 2.2K
5%
l/4W
R611
1-249-417-11
CARBON IK
5%
l/4W
R612 !-249-404-00
CARBON
82
5%
l/4W
R613 I -249-419-11
CARBON
1. 5K
5%
l/4W
R614
1-249-385-11
CARBON 2.2
5%
l/4W
F
R615 1-218-265-11
METAL
8.2M
5%
IW
R616 l-216-341-11
METAL OXIDE
0.22
5%
lW
F
R617 1-216-341-11
METAL OXIDE 0.22
5%
lW
F
R618
!-249-443-11
CARBON
0.47
5%
l/4W
F
R619 !-216-341-11
METAL OXIDE 0.22
5%
lW
F
R620
1-249-443-11
CARBON 0.47
5%
1/4W
F
R621
l-215-877-11
METAL OXIDE
22K
5%
lW
F
R622
1-247-700-11
CARBON 100
5%
l/4W
R623
1-249-417-11
CARBON lK
5%
l/4\t/
R624 1-216-341-ll
METAL OXIDE 0.22
5%
lW
F
R625 l-216-341-11
METAL OXIDE
0.22
5%
IW
F
R626 1-247-895-00
CARBON
470K
5%
1/4\t/
R631
l-247-807-31
CARBON 100
5%
l/4W
R1602 !-215-869-11
METAL OXIDE
lK
5%
lW
F
Rl603
1-202-846-00
SOLID 470K
20%
l/2W
<RELAY>
RY601t:... 1-515-738-1 I
RELAY
<TRANSFORMER>
T601
t:...1-426-716-11
TRANSFORMER, LINE FILTER (LFT)
T602
t:...1-426-716-11
TRANSFORMER, LINE FILTER (LFT)
T603
1-427-885-11
TRANSFORMER, CONVERTER (SRT)
<THERMISTOR>
THP60Jt:.1-808-059-32 THERMISTOR, POSITIVE
<VARISTOR>
.VDR60l.t:.l-809-942-7i . .VARISTOR '.
*************************************************************
*A-1331-299-A
C BOARD, CO~PLETE
*****************
*4-374-912-01
COVER
(MAIS), CV VOL
*4-374-913-01
COVER (REAR LID), CV VOL
<CAPACITOR>
C701
1-102-157-00
CERAMIC 560PF 10%
500V
C702
l-102-157-00
CERAMIC
560PF
!OZ
500V
C703
1-102-157-00
CERAMIC
560PF
10%
500V
C704
1-102-121-00
CERAMIC
O.OOWIF !OZ
50V
C705
1-126-101-11
ELECT
lOOMF
20%
16V
C706 !-102-074-00
CERAMIC
O.OOlMF
10%
50V
C707
1-162-116-00
CERAMIC 680PF
10%
2KV
C708
1-136-601-11
FILM
O.O!MF
5t
630V
C710
l-101-880-00
CERAMIC 47PF
5%
50V
C711 l-101-880-00
CERAMIC
47PF
5%
50V
C712
1-101-880-00
CERAMIC
47PF
5%
50V
C713
l-123-946-00
ELECT
4.7MF 2oz
250V
C714
1-102-976-00
CERAMIC 180PF
5%
50V
C715
1-102-976-00
CERAMIC 180PF
5%
50V
C716
1-102-976-00
CERAMIC 180PF
5%
50V
C717 1-107-372-11
MYLAR
0.22MF
10%
200V
C718
1-107-372-11
MYLAR
0.22MF 10%
200V
C720 1-108-700-11
MYLAR
0.047MF
10%
200V
C734
1-102-973-00
CERAMIC
100PF
5%
50V
C735
!-102-816-00
CERAMIC 120PF
5%
50V
C736 l-102-816-00
CERAMIC
120PF
5%
50V
<CONNECTOR>
CN701
*1-564-511-11
PLUG, CONNECTOR SP
CN702
*1-573-964-11
PIN, CONNECTOR (PC BOARD) 6P
CN703
*1-691-134-11
PIN, CONNECTOR (PC BOARD) 2P
<DIODE>
D701
8-719-911-19
DIODE !SS119-25
D702
8-719-911-19
DIODE !SS119-25
D703
8-719-911-19
DIODE 1SS119-25
D704
8-719-911-19
DIODE 1SS119-25
D705 8-719-911-19
DIODE 1SS119-25
0706
8-119~911-19
DIODE 1SS119-25
D707 8-719-901-83
DIODE 1SS83
0708
8-719-901-83
DIODE 1SS83
D709
8-719-901-83
D !ODE 1SS83
D713
8-719-901-83
DIODE 1SS83
D715
8-719-901-83
DIODE 1SS83
D716 8-719-901-83
DIODE !SS83
D717 8-719-901-83
DIODE 1SS83
<JACK>
c,'"
PICTURE.TUBE
J70 l .:td-526-819-1 L,'. SOCKET,
-112-
