Sony UWP-V1 - Portable Diversity Tuner (URX-P2) Details; Diversity Tuner Module (URX-M2) Details

70
Specifications
Portable diversity tuner (URX-
P2)
Antenna
1/4
λ wave length wire
Squelch level
15 dBµ
Audio output level
–58 dBm
Audio output connector
3.5 mm dia. mini jack
Headphones output level
5 mW (16 ohms)
Display
Channel, frequency, audio level,
RF level, accumulated use time,
monitor level
Power requirements
3.0 V DC (two LR6/AA size
alkaline batteries)
Battery life
Approx. 6 hours (measured with
two Sony LR6/AA size alkaline
batteries at 25 °C (77°F))
Reference deviation
±5 kHz (at 1 kHz modulation)
Frequency response
40 Hz to 18 kHz
Dimensions
63 × 104.5 × 22 mm (2
1
/
2
× 4
1
/
8
×
7
/
8
inches) (w/h/d) (excluding
the antennas)
Mass Approx. 205 g (7.2 oz) including
batteries
Diversity tuner module (URX-
M2)
Squelch level
25 dBµ
Display
Channel, frequency
Reference deviation
±5 kHz (at 1 kHz modulation)
Frequency response
50 Hz to 18 kHz
Dimensions
57 × 26 × 121 mm (2
1
/
4
× 1
1
/
16
×
4
7
/
8
inches) (w/h/d)
Mass Approx. 150 g (5 oz)

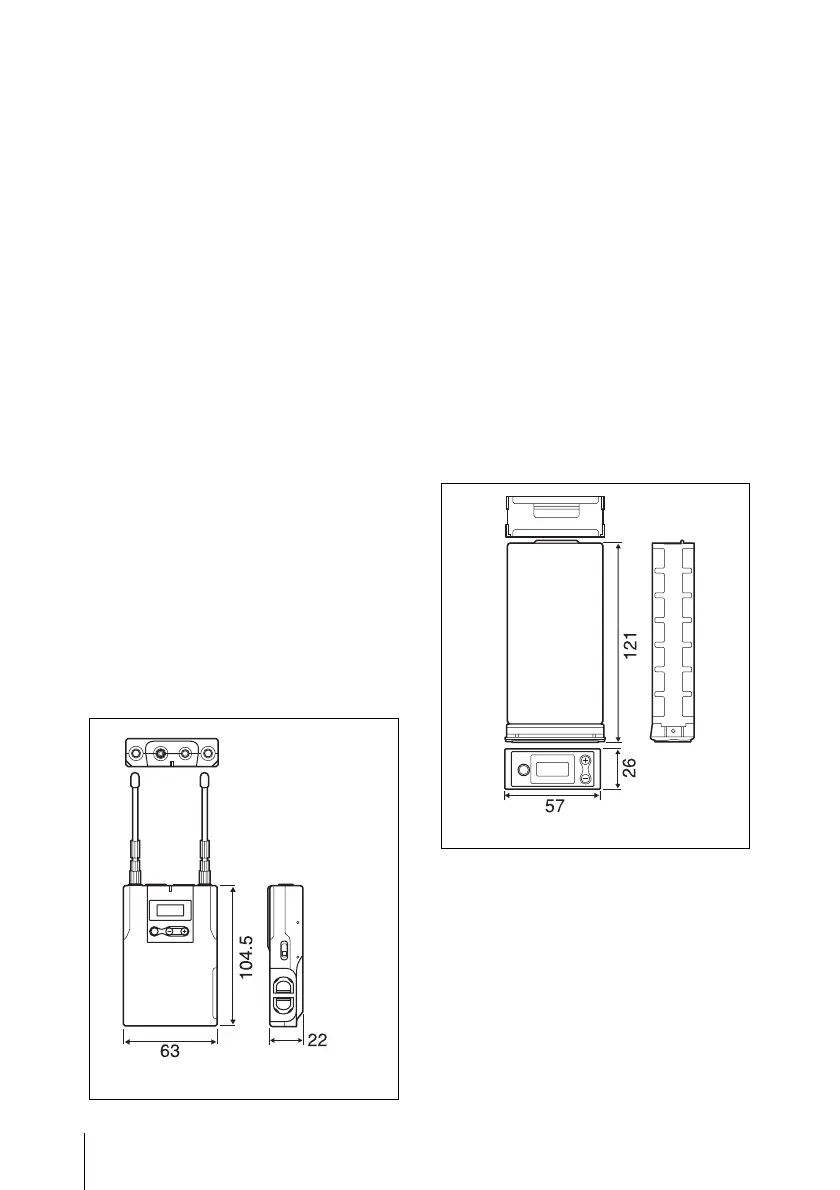

Unit: mm
Unit: mm
