Specifications
Other
Some of the items may not be available in some
areas. For details, please consult your nearest
Sony office.
1) VPS-50C may not be available in some areas.
For details, please consult your nearest Sony
office.

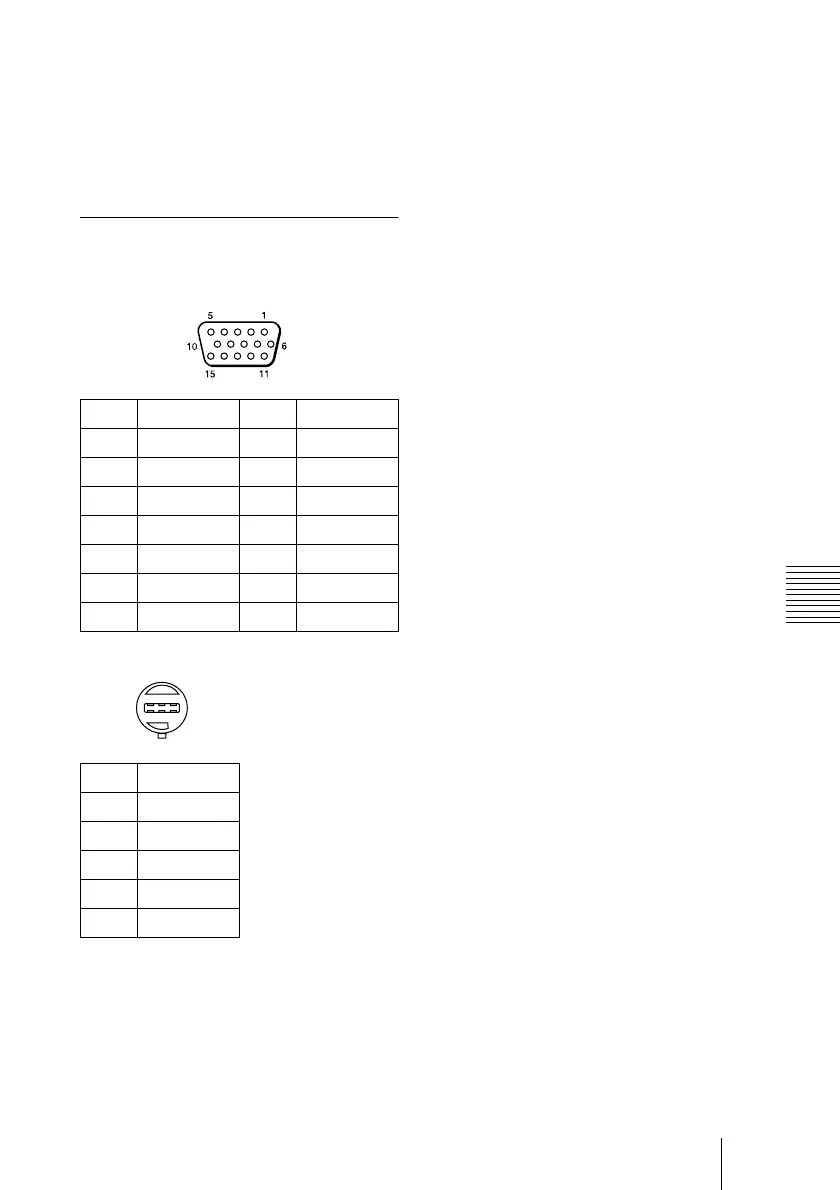

Pin assignment
INPUT A connector (HD D-sub 15-pin,
female)
MOUSE connector (6-pin, female)
1R/R-Y 9N.C.
2 G/Y 10 GND
3 B/B-Y 11 GND
4GND 12N.C.
5 GND 13 HD/C.Sync
6GND (R)14VD
7GND (G)15N.C.
8GND (B)
1DATA
2N.C.
3GND
4+5V
5CLK
6N.C.
123
456
