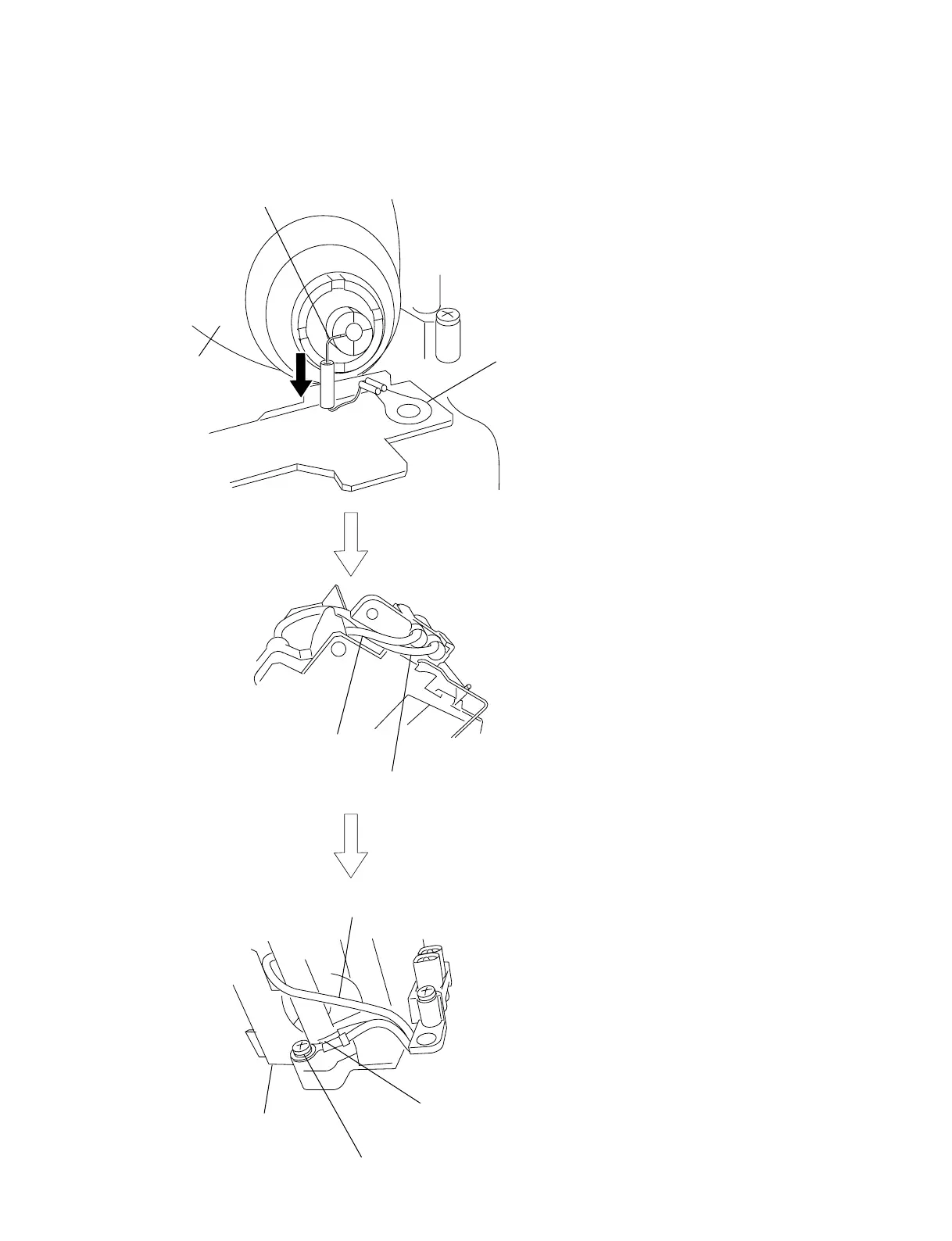

1-3-21. How to Route the Lamp Lead and the Harness
Lamp
Draw out the lamp lead straight
down from the slit of the base.
Route the terminal behind.
Long harness
Long harness
Louver
When installing the louver, be sure to draw
out the terminal from the opening of the louver.
Secure the lamp lead and the harness (short) together.
Short harness
