1-15 (E)
VPL-EX100

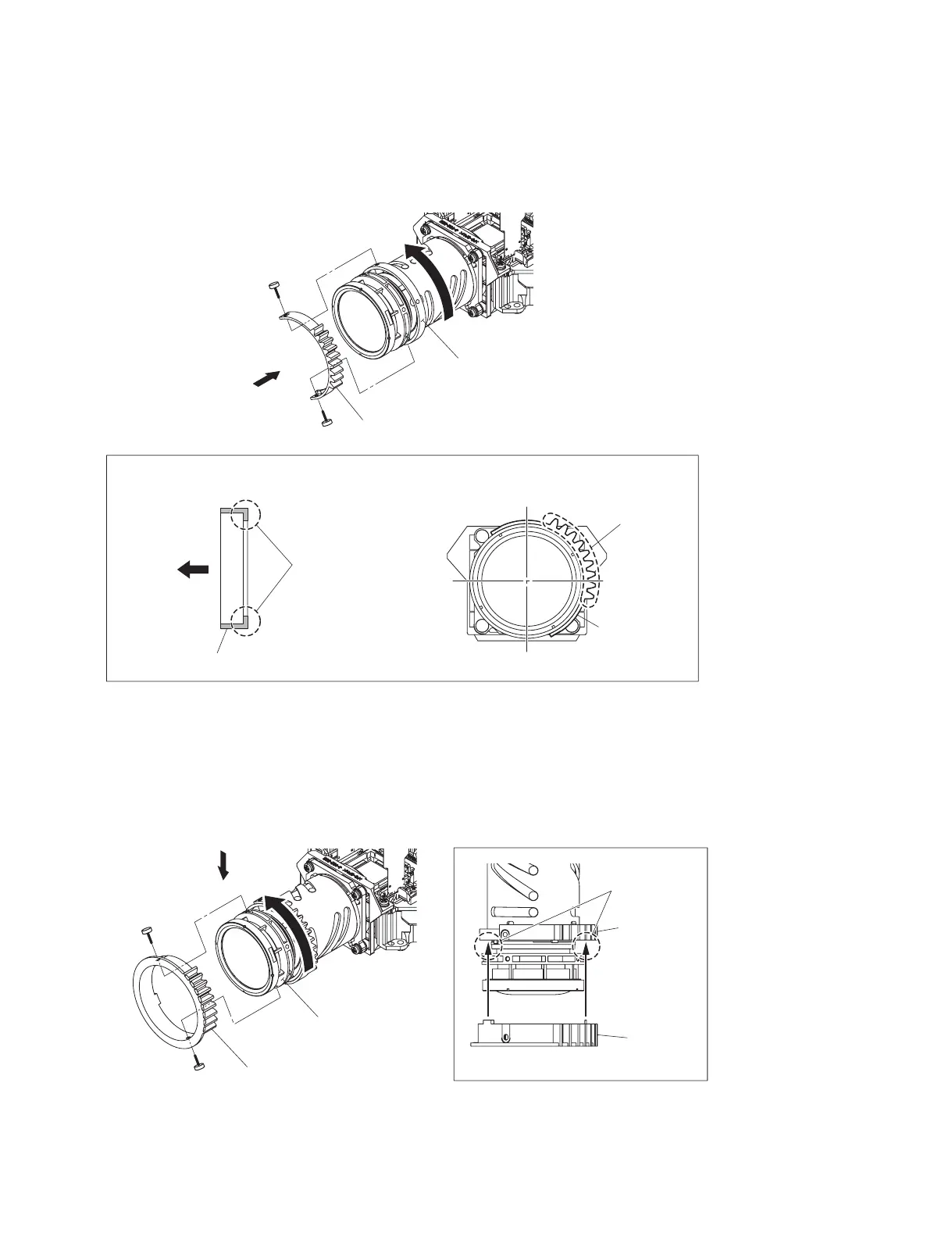

Installing the zoom ring and focus ring
1. Rotate the zoom lens in the counterclockwise direction to the end.
2. Attach the zoom ring using the two screws.
3. Rotate the focus lens in the counterclockwise direction to the end.
4. Attach the focus ring to reach for the zoom ring.
5. Fix the focus ring using the two screws.
Zoom lens
Gear
portion
Zoom ring
Attach the gear portion of the zoom ring
in the direction as the figure.
Arrow A view
Zoom ring
Front side
of unit
Attach with the frame
side facing backward.
P2 x 5
P2 x 5
A
Zoom ring
Arrow B view
P2 x 5
P2 x 5
Zoom ring
Attach to reach
for the zoom ring.
Focus lens
Focus ring
Focus ring
B
To Next Page
