Sony VPL-S900E - 2-2. DISASSEMBLY; Cabinet and Front Panel Removal; Scan Converter and GA;U Boards Removal

2-2
VPL-S900E, VPL-S900M, VPL-S900U

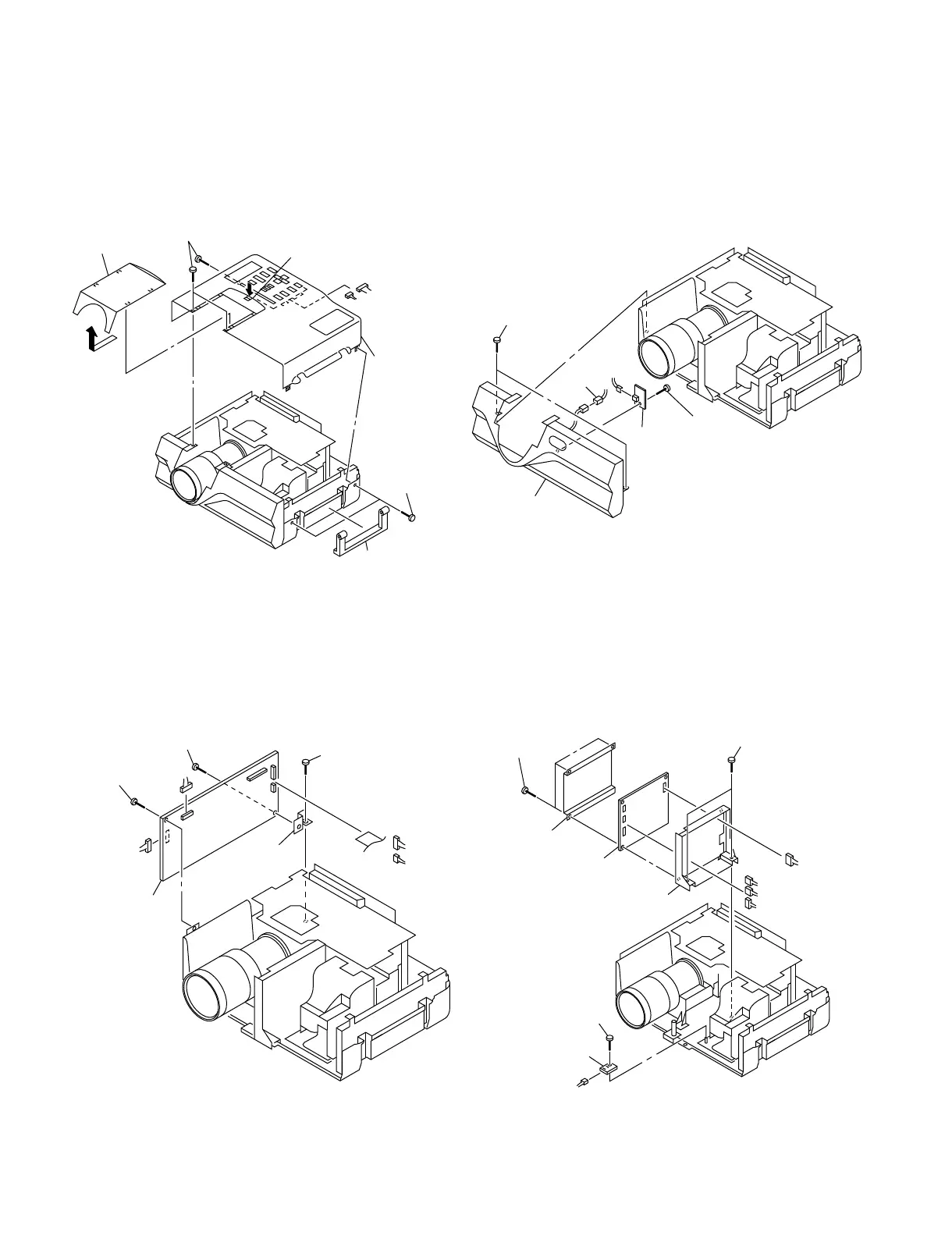

2-2. DISASSEMBLY
2-2-1. Cabinet Assy Removal 2-2-2. Front Panel Assy and NF Board Removal
2-2-3. Scan Converter Unit Removal 2-2-4. GA and U Boards Removal
4 Two screws
(+B 3 × 8)
6 Handle
5 Cabinet assy
1 Claw
CN6001
CN6002
3 Three screws
(+B 3 × 8)
2 Lens cover (TP)
1 Two screws
(+PSW 3 × 8)
2 Front panel assy
4 NF board
3 Screw
(+PTPWH 3 × 10)
CN4001
3pin
2 Screw
(+PSW 3 × 8)
4 Screw
(+PSW 3 × 8)
1 Screw
(+PSW 3 × 8)
5 BB bracket
3 Scan converter
unit (BB board)
CN3001
CN3004
CN3005
CN3003
CN3002
7 U board
CN4101
CN8002
CN8001
CN8003
CN8004
6 Screw
(+PSW 3 × 8)
1 Two screws
(+PSW 3 × 8)
3 Three screws
(+BVTP 3 × 8)
4 GA cover
5 GA board
2 GA holder
