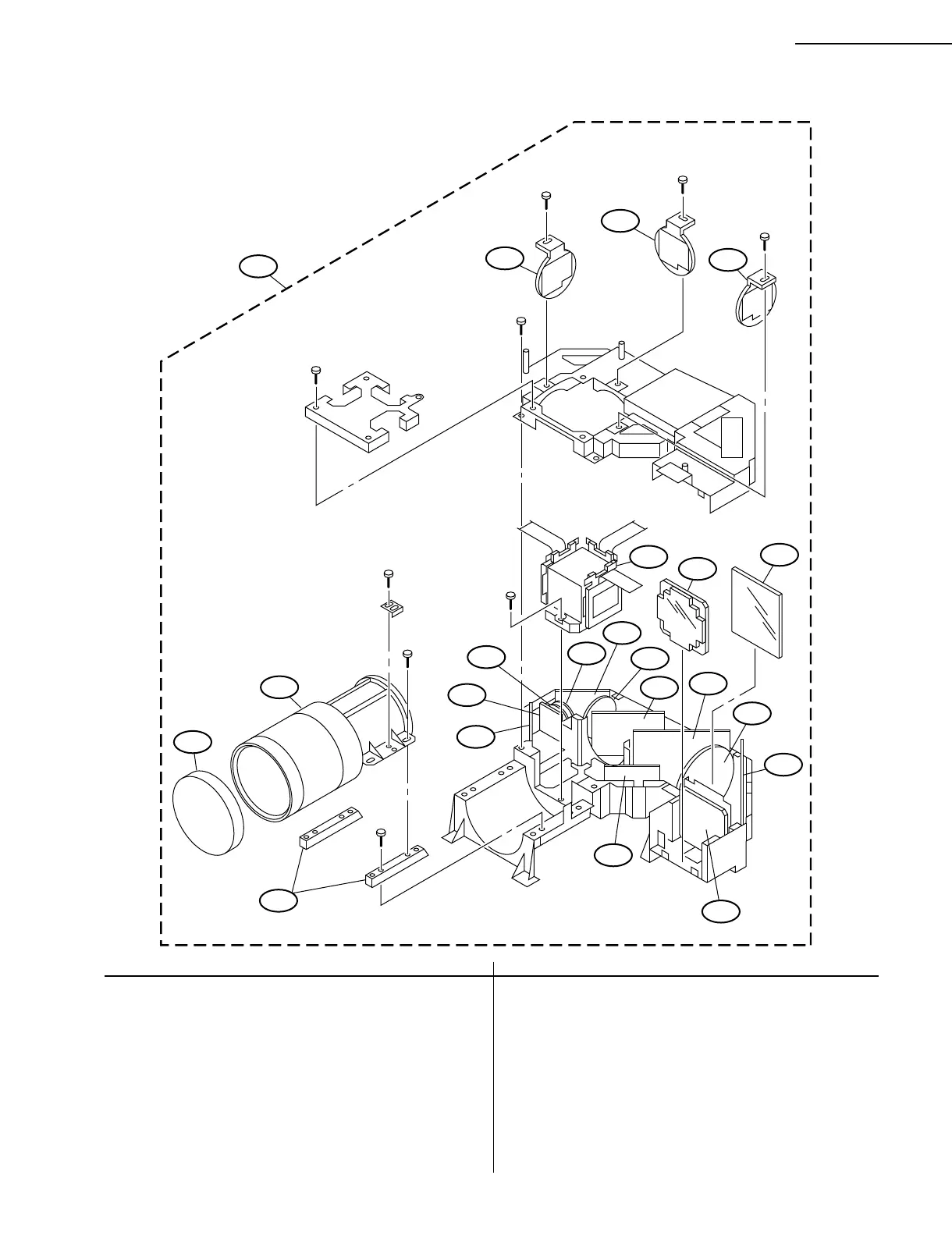

Sony VPL-S900E - 5-4. OPTICAL UNIT BLOCK; Exploded View of Optical Unit; Optical Unit Parts List

5-5
VPL-S900E, VPL-S900M, VPL-S900U
Rf.NO. PART NO. DESCRIPTION REMARKRf.NO. PART NO. DESCRIPTION REMARK
5-4. OPTICAL UNIT BLOCK
OPTICAL UNIT
151
152
153
154
155
156
157
158
159
160
161
161
162
163
164
165
166
167
168
169
170
171
151 1-758-290-11 OPTICAL UNIT 152-171
152 9-880-349-01 POLARIZATION PLATE (R)/
CONDENSER LENS
153 9-880-347-01 POLARIZATION PLATE (G)/
CONDENSER LENS
154 9-882-678-01 POLARIZATION PLATE (B)/
CONDENSER LENS
155 9-880-346-01 PS CONVERTER
156 9-880-344-01 FLYEYE LENS A
157 A-1501-465-A PRISM BLOCK ASSY
158 9-880-355-01 SPACER, COMPLETE
159 9-882-677-01 PROJECTION LENS
160 9-880-361-01 LENS CAP
161 *9-880-353-01 MIRROR B
162 *9-880-360-01 FILTER, RED
163 *9-880-359-01 LENS C, RELAY
164 *9-880-358-01 LENS B, RELAY
165 *9-880-357-01 LENS A, RELAY
166 *9-880-351-01 DICHROIC MIRROR (G)
167 *9-880-350-01 DICHROIC MIRROR (B)
168 *9-880-356-01 MAIN CONDENSER LENS
169 *9-880-352-01 MIRROR A
170 *9-880-345-01 FLYEYE LENS B
171 *9-880-354-01 MIRROR C
