Sony VPL-S900E - 5-1. CABINET BLOCK; Cabinet Block Parts List

5-2
VPL-S900E, VPL-S900M, VPL-S900U
1 * X-4035-461-1 HOOD ASSY 2
2 * 4-063-685-01 FOOT
3 1-504-847-11 SPEAKER (2.8CM)
4 1-505-282-11 SPEAKER (057F006)
5 4-063-624-01 BUTTON, CONTROL
6 * A-1375-172-A H BOARD, COMPLETE
7 * 4-063-632-11 COVER (TP), LENS
8 * X-4036-437-2 PANEL ASSY, FRONT 9.10
9 * 4-063-676-01 WINDOW (FR), RM
10 * 4-063-653-11 COVER (BT), LENS
11 * 1-668-126-11 NF BOARD
12 * 4-063-640-01 DUCT (EX)
13 * 4-063-995-01 NET, FAN
14 1-763-070-11 FAN, DC
15 * X-4035-458-1 LAMP COVER ASSY 16
16 * 3-715-526-01 WASHER (M3)
17 4-396-203-01 SCREW (+B M3X12), PREVENTION
18 * 4-063-641-11 HANDLE
19 4-382-854-01 SCREW (M3X8), P, SW (+)
20 * X-4035-430-1 COVER ASSY, FRONT
21 * 4-065-573-01 GUARD (LMP), LIGHTING
Rf.NO. PART NO. DESCRIPTION REMARKRf.NO. PART NO. DESCRIPTION REMARK

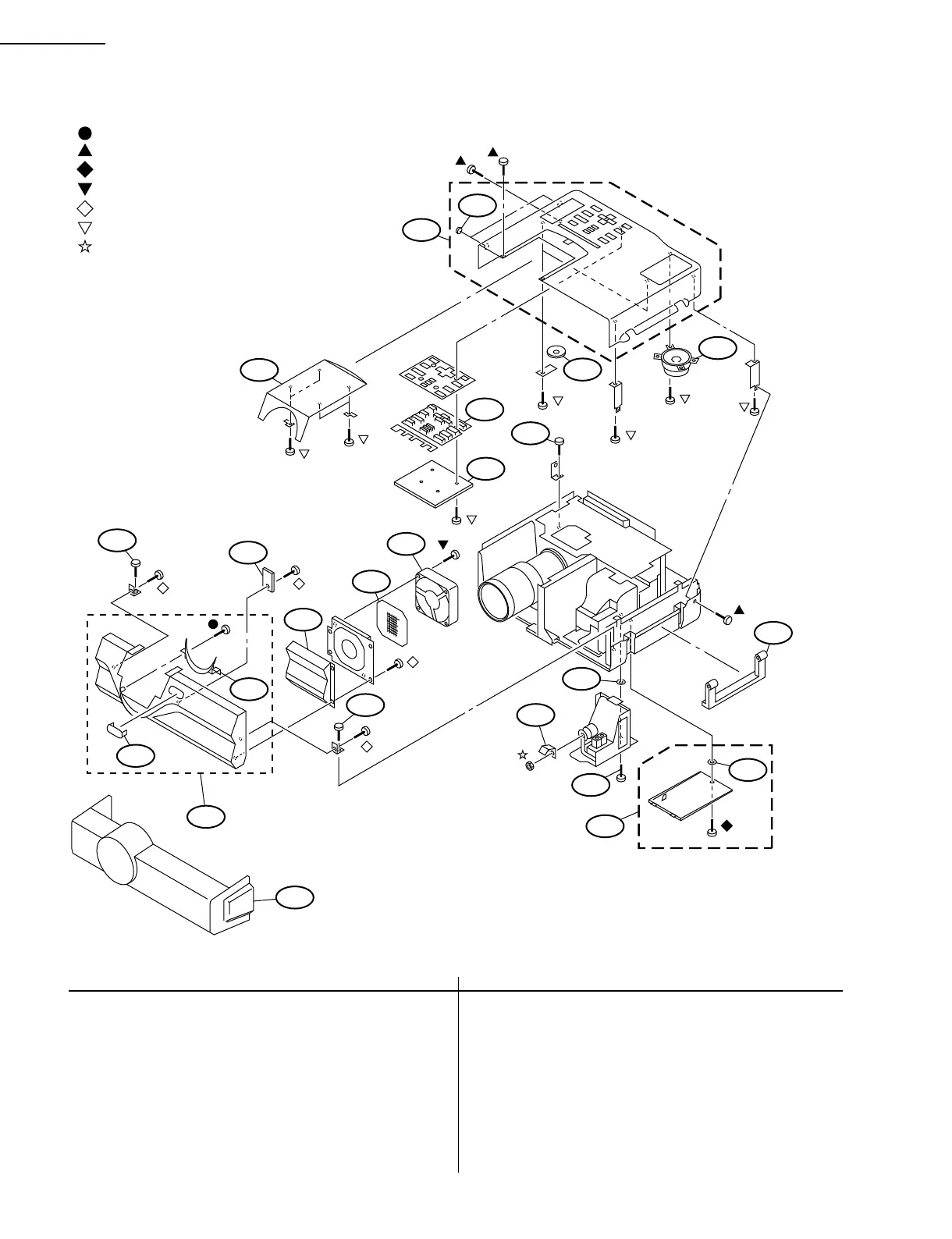

5-1. CABINET BLOCK
CABINET
: 7-685-646-79 +BVTP3x8
: 7-682-548-09 +B3x8
: 7-682-549-09 +B3x10
: 7-685-167-19 +P4x35
: 7-685-903-31 +PTPWH3x10
: 7-685-144-11 +P3x5
: 7-684-024-04 N4
1
2
3
4
5
6
7
8
9
10
20
21
11
12
13
14
15
16
16
17
18
19
19
19
