Sony VPL-S900E - 2-2. DISASSEMBLY; Power Supply Block and F Board Removal; Connector Panel and Associated Boards Removal

2-3
VPL-S900E, VPL-S900M, VPL-S900U

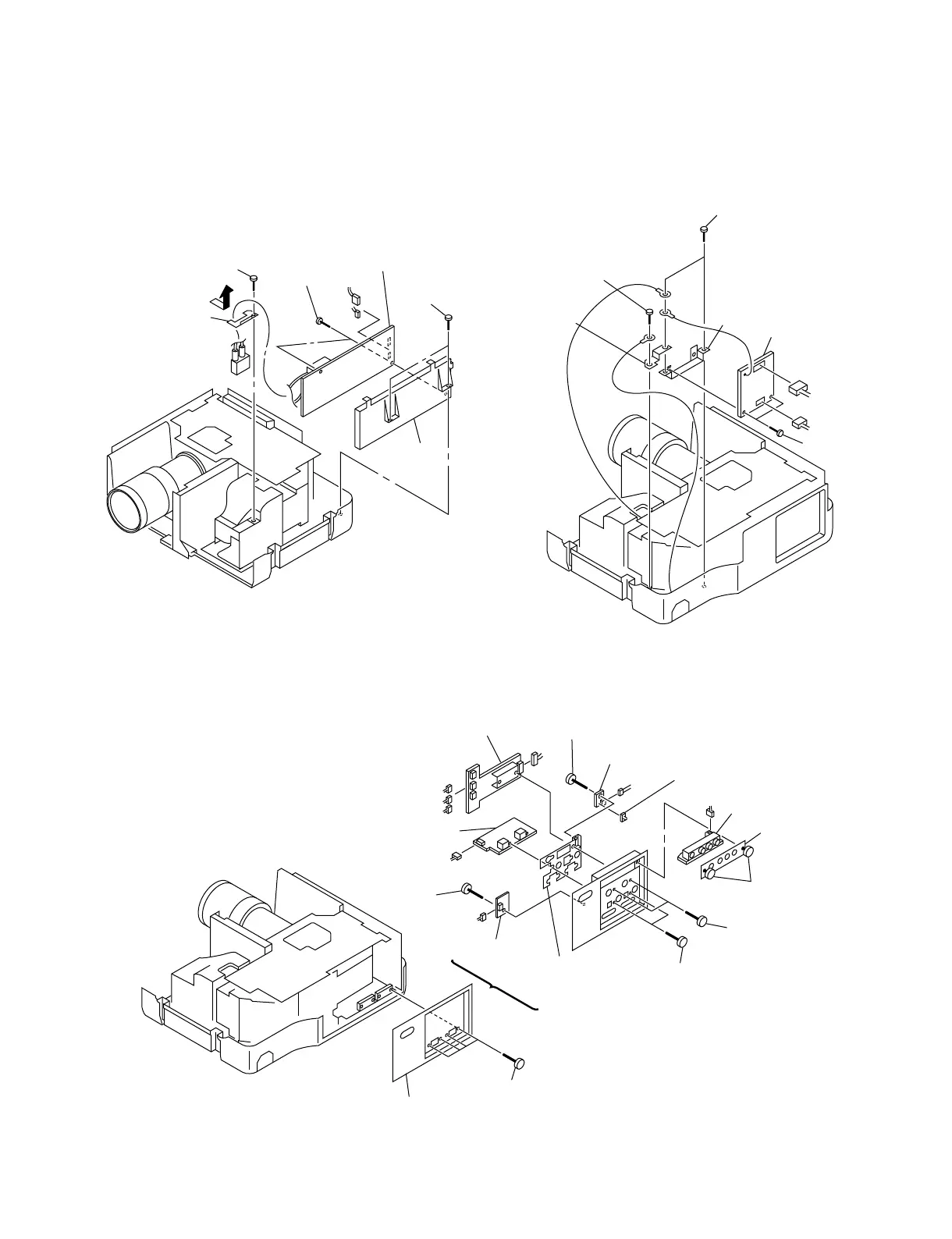

2-2-5. Power Supply Block Removal 2-2-6. F Board Removal
2-2-7. Connector Panel Assy, QA, QB, QC, QD and NR Boards Removal
1 Four screws
2 Connector panel assy
8 Two screws
(+B 3 × 8)
3 Two screws
(+B 3 × 8)
!¡ Two screws
(+B 3 × 8)
!£ QB board
[S900M/S900U]
6 QD board
4 QA board
9 QC board
!∞ NR board
0 D-SUB holder
!™ QB panel
7 Switch cover
CN1501
CN1801
CN1004
CN1003
CN1001
CN1002
CN1601
CN4801
5 Screw
(+PSW 3 × 8)
!¢ Screw
(+BVTP 3 × 8)
• Remove the power supply block. (Refer to 2-2-5.)
2 Two screws
(+PSW 3 × 8)
5 Two screws
(+PSW 3 × 8)
CN9002
CN9001
4 F holder
3 Ground
Plate
6 F board
1 Screw
(+PSW 4 × 8)
1 Screw
(+BVTP 3 × 8)
2 Connector
holder (LH)
5 Two screws
(+BVTP 3 × 8)
3 Two screws
(+PSW 3 × 8)
4 GC holder
6 Power supply block
CB1
CB2
