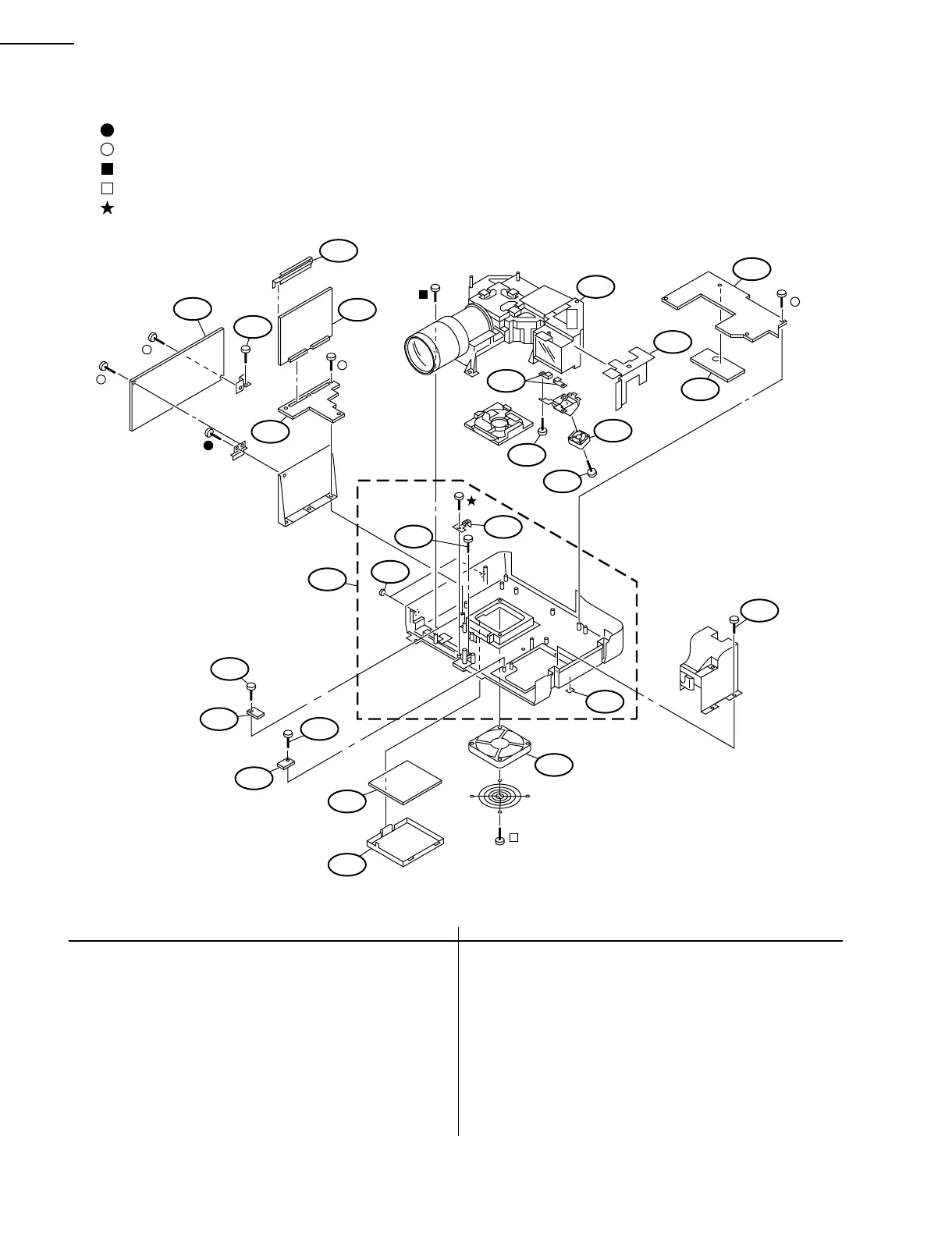

Sony VPL-S900E - 5-3. BASE BLOCK; Exploded View of Projector Base; Base Block Parts List

5-4
VPL-S900E, VPL-S900M, VPL-S900U
Rf.NO. PART NO. DESCRIPTION REMARKRf.NO. PART NO. DESCRIPTION REMARK
5-3. BASE BLOCK
BASE
: 7-685-646-79 +BVTP3x8
: 7-682-948-01 +PSW3x8
: 7-682-663-09 +PSW4x12
: 7-682-667-09 +PSW4x25
: 7-682-647-09 +PS3x6
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
120
121
118
117
122
119
119
119
119
119
101 1-475-689-61 CONVERTER UNIT, SCAN (BB)
102 * 4-063-633-01 HOLDER (TP), GB
103 * A-1316-434-A GB BOARD, COMPLETE
104 * A-1316-369-B GBA BOARD, COMPLETE
105 1-758-290-11 OPTICAL UNIT 152-171
106 * 4-064-095-01 GUARD (A), LIGHTING
107 4-064-094-01 NUT, SPRING
108 1-763-101-11 FAN, DC
109 4-382-854-21 SCREW (M3X14), P, SW (+)
110 * A-1135-988-A BA BOARD, COMPLETE
111 * X-4036-436-2 BASE ASSY 112-115
112 4-063-994-01 MACHNE SCREW (+PWH M3X8)
113 * 4-063-685-01 FOOT
114 * 4-064-059-01 BRACKET, GBA
115 * 4-064-163-01 CUSHION, HANDLE
116 * A-1135-987-A BAA BOARD, COMPLETE
117 4-063-639-01 COVER, FILTER (S900M/S900U)
117 4-063-639-11 COVER, FILTER (S900E)
118 4-063-684-01 FILTER
119 4-382-854-01 SCREW (M3X8), P, SW (+)
120 * 1-668-124-11 V BOARD
121 * 1-668-125-12 U BOARD
122 1-763-069-11 FAN, DC
