Making Fine Adjustments to the Horizontal
Picture Position
Tools you need to get started
Phillips screwdriver: 110 mm (4
3
/
8
inches) or longer
Flat-head screwdriver: 110 mm (4
3
/
8
inches) or longer
For details on how to make fine adjustments of the horizontal picture position, consult with qualified
personnel. When the lens is scratched, there is a charge for repair.
Also, do not look into the lens while you are adjusting the picture position.
You can adjust the lens position right or left by about 1 mm from the center of the lens.

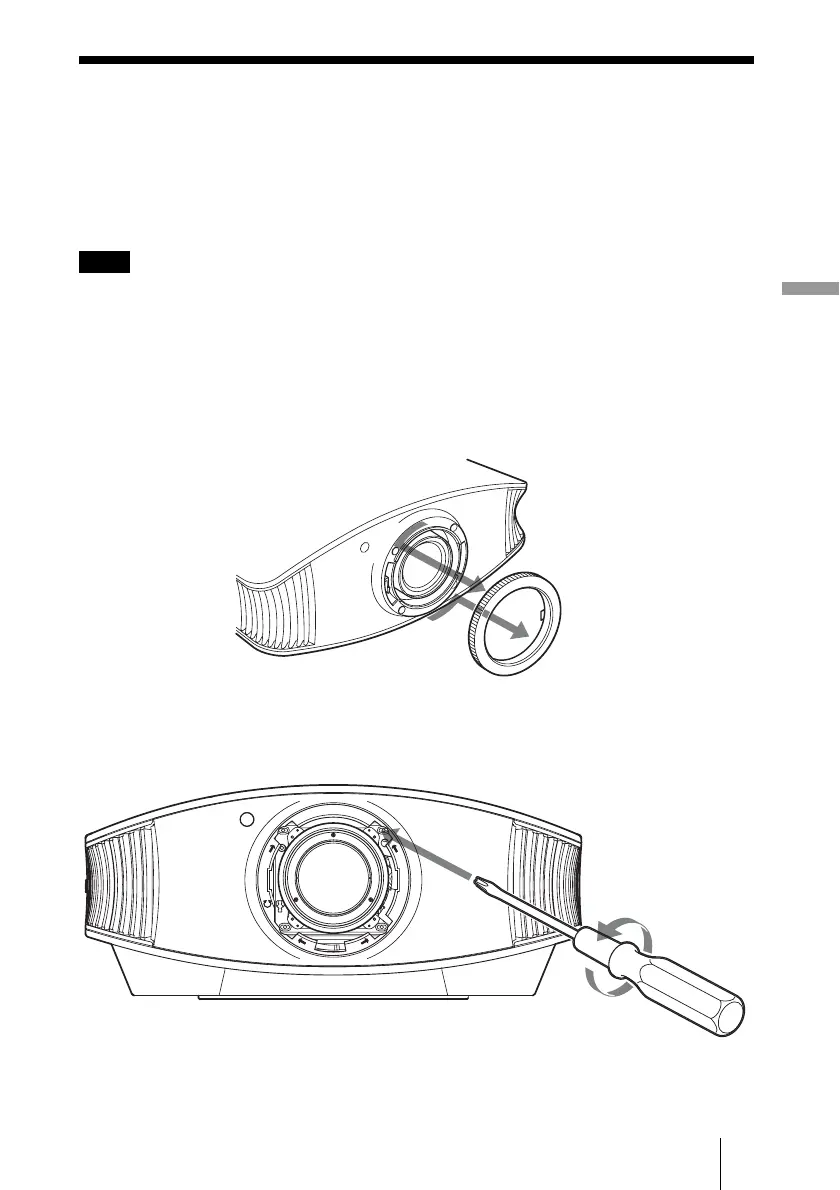

1 Remove the ring (washer) attached around the lens by turning it
counterclockwise.
2 Loosen the four screws located at the position indicated with an arrow
by turning them counterclockwise with a Philips screwdriver.
Note
