Sony WM-EX527 - MOTOR (CAPSTAN;REEL) (M901)

WM-EX527
10

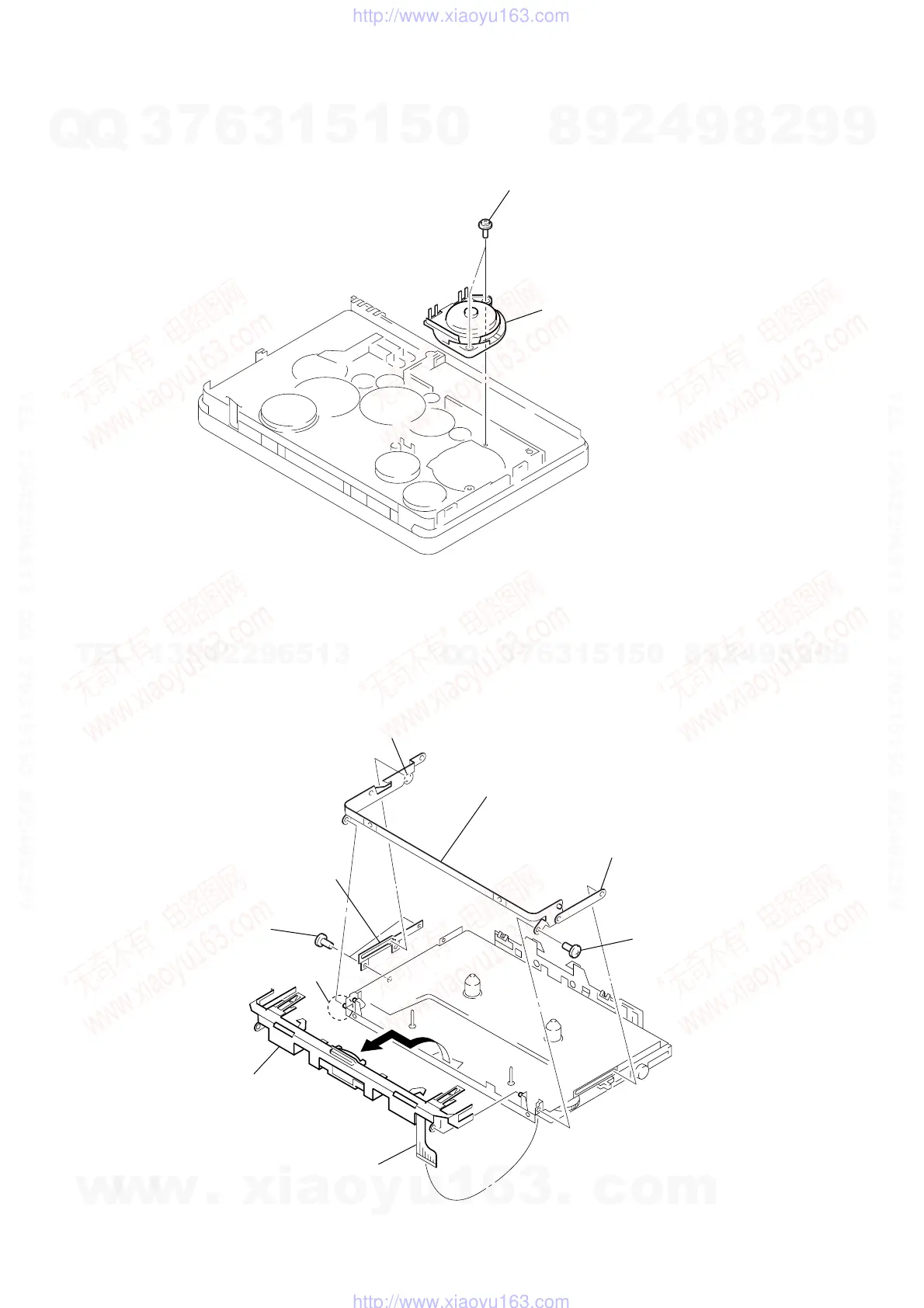

3-8. MOTOR (CAPSTAN/REEL) (M901)
3-9. HOLDER (FS) SECTION
1 two screws
(M1.4)
2 motor (capstan/reel
)
(M901)
1 two screws
(IB lock)
2 boss
3 lock lever (B)
(/M)
7 bracket (cassette) assy (/M)
5 lock lever (S) (/M)
4 screw (M1.4
)
6 boss
9 Remove the holder (FS) section
to direction of the arrow.
8 Remove six solders
of flexible board.
