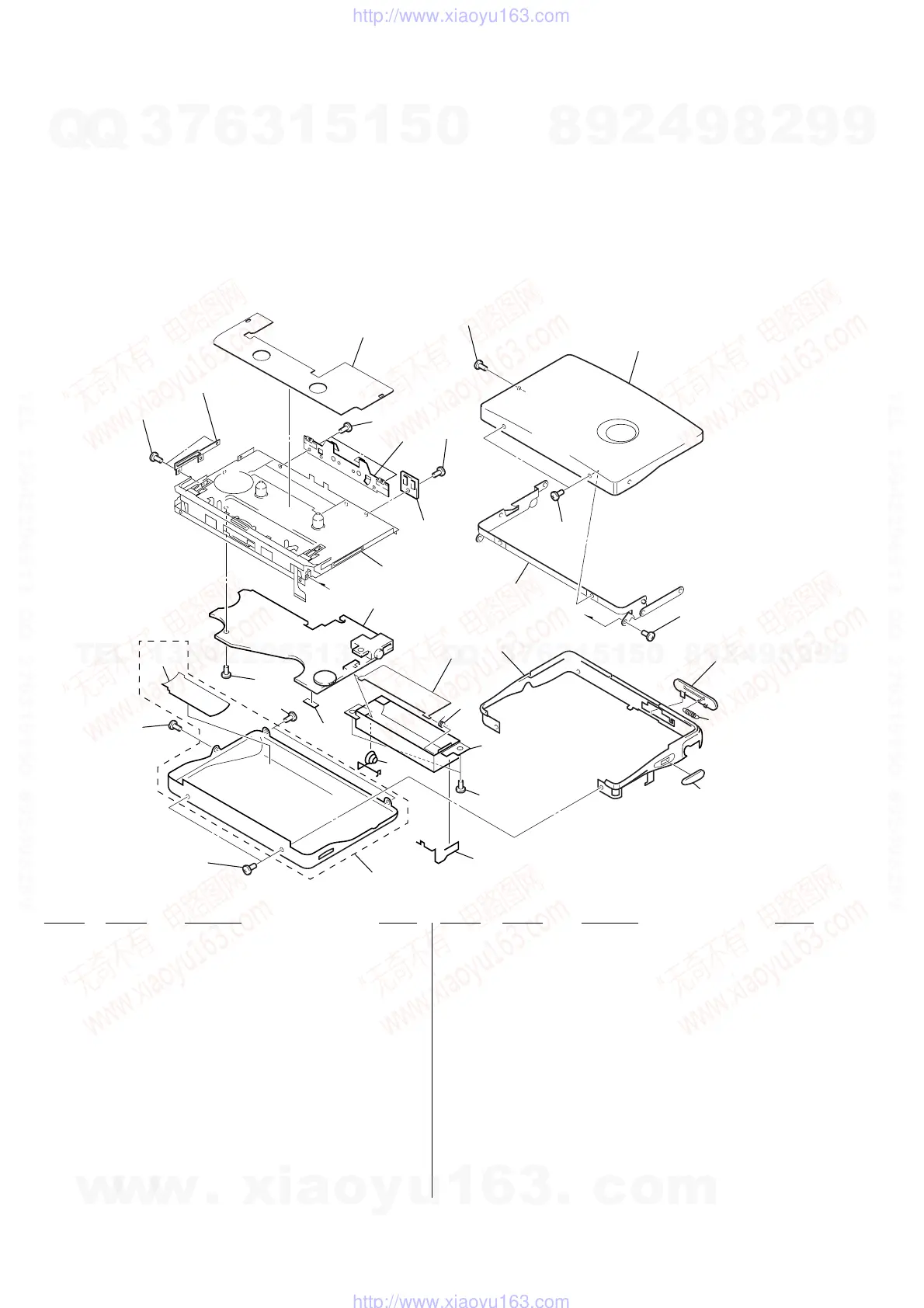

7-1. CASE SECTION
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories are given in the last of the elec-
trical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 A-3329-792-A CASE BLOCK ASSY (SILVER)
1 A-3329-793-A CASE BLOCK ASSY (BLUE)
2 3-225-873-29 SCREW (M1.4)
3 3-042-001-04 HOLDER, BATTERY
4 3-042-003-01 SPRING
5 3-042-002-01 LID, BATTERY CASE
6 3-345-648-95 SCREW (M1.4), TOOTHED LOCK
* 8 A-3021-287-A MAIN BOARD, COMPLETE
9 3-939-590-05 SCREW (IB LOCK)
10 3-038-054-01 LEVER (B) (/M), LOCK
11 3-375-114-81 SCREW
12 X-3377-717-2 BRACKET ASSY (/M)
14 3-237-997-21 COVER, MD
15 3-225-996-09 SCREW (M1.4) (EG), PRECISION PAN
16 X-3383-061-1 LID ASSY, CASSETTE (S) (SILVER)
16 X-3383-062-1 LID ASSY, CASSETTE (L) (BLUE)
17 X-3377-719-1 BRACKET (CASSETTE) ASSY (/M)
18 3-365-630-41 SCREW (M1.4)
19 3-042-006-41 ORNAMENT, REEL (for SILVER)
19 3-042-006-51 ORNAMENT, REEL (for BLUE)
20 3-042-007-41 KNOB (OPEN) (for SILVER)
20 3-042-007-51 KNOB (OPEN) (for BLUE)
21 3-042-008-01 SPRING, TENSION
22 3-042-009-41 KNOB (HOLD) (for SILVER)
22 3-042-009-51 KNOB (HOLD) (for BLUE)
23 3-042-004-01 TERMINAL (+), BATTERY
24 3-042-005-01 TERMINAL (-), BATTERY
25 3-224-837-01 SHEET (ATS)
26 3-044-951-01 SHEET (A)
S901 1-771-888-11 SWITCH, LEAF (TAPE DETECT, ATS)
