19
WM-EX527

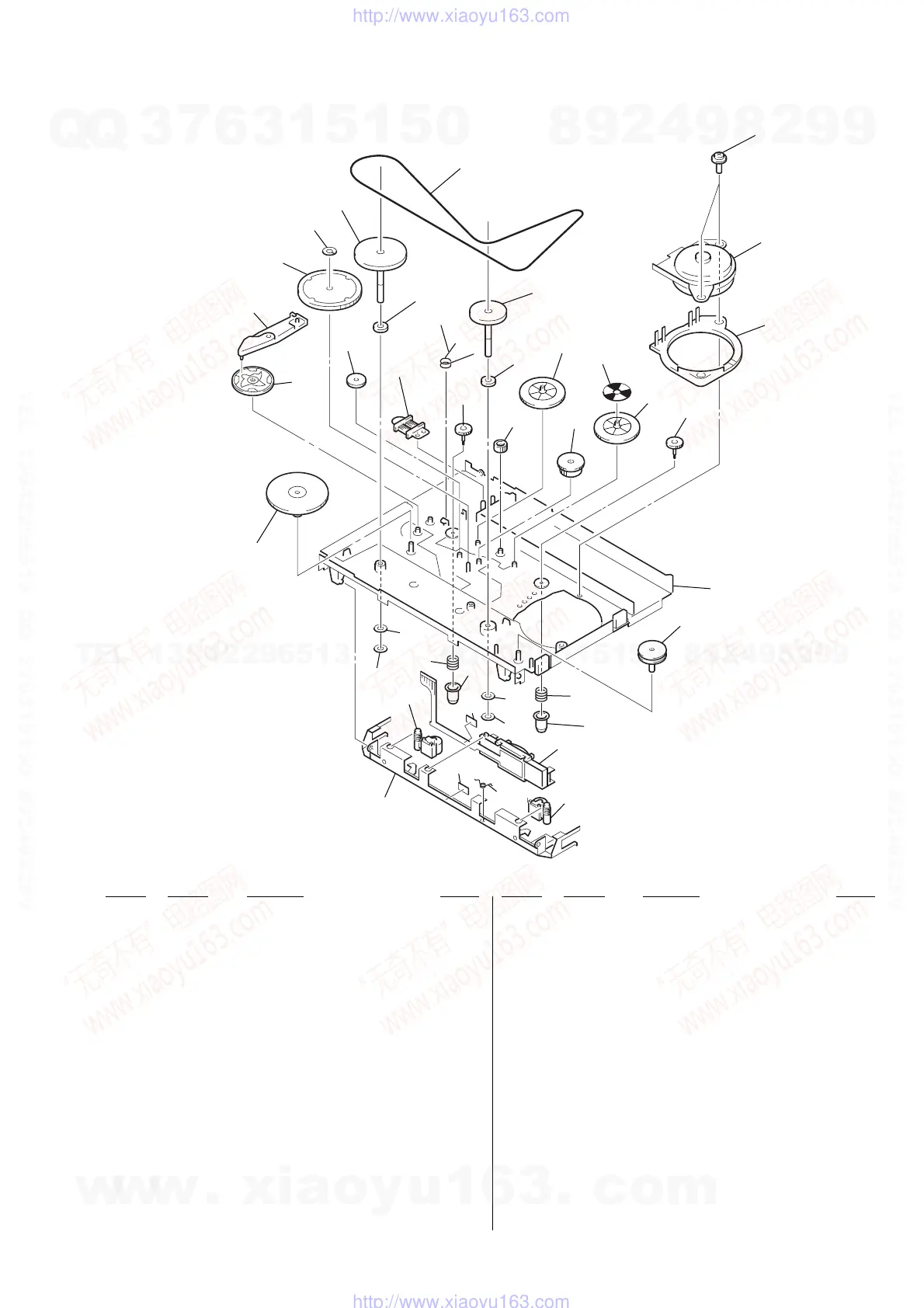

7-2. MECHANISM DECK SECTION
(MT-WMEX505-162)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 X-3378-354-5 HOLDER (FS) ASSY
102 X-3377-363-1 LEVER (R) ASSY, PINCH
103 3-046-789-01 SPRING (HDA)
104 X-3377-362-1 LEVER (N) ASSY, PINCH
105 3-029-275-01 WASHER (STOPPER N)
106 3-029-278-01 WASHER
107 3-029-276-02 WASHER (STOPPER R)
108 3-029-289-01 WASHER
109 X-3376-813-1 CLUTCH ASSY (F)
110 3-932-724-21 WASHER
111 3-040-897-04 SPRING (TGA), TORSION
112 3-386-694-01 WASHER
113 3-029-306-21 FLYWHEEL (N), INSERT
114 3-388-079-01 BELT
115 3-029-268-21 FLYWHEEL (R), INSERT
116 3-007-428-01 WASHER (R)
117 3-029-765-01 SCREW (M1.4), TOOTHED LOCK
118 3-029-274-11 RETAINER (F2), MOTOR
119 3-007-433-01 SHEET (N), REFLECTION
120 X-3378-107-3 CHASSIS (FB) ASSY
121 3-010-274-02 TABLE, REEL
122 3-010-954-01 SPRING (BT), COMPRESSION
123 3-029-282-01 GEAR (Y)
124 3-029-285-02 GEAR, CAM
125 3-029-284-03 LEVER, TRIGGER
126 3-029-281-01 GEAR, IDLER (B)
127 3-010-273-02 GEAR (REEL)
128 3-029-273-01 GEAR (FR)
129 3-029-283-02 GEAR, IDLER (A)
130 3-029-286-01 GEAR (NR)
131 3-029-288-01 PULLEY, REVERSE
132 3-033-757-01 SHEET (H)
HP901 1-500-639-21 HEAD, MAGNETIC (PLAYBACK)
M901 1-763-166-14 MOTOR (CAPSTAN/REEL) (WITH PULLEY)
PM901 1-454-674-41 SOLENOID, PLUNGER
113
PM901
HP901
M901
110
109
112
111
116
115
117
118
119
106
120
105
108
107
104
101
103
102
114
121
121
132
132
122
122
123
124
125
126
127
127
128
129
129
130
131
