Sony WM-EX527 User Manual

4
WM-EX527

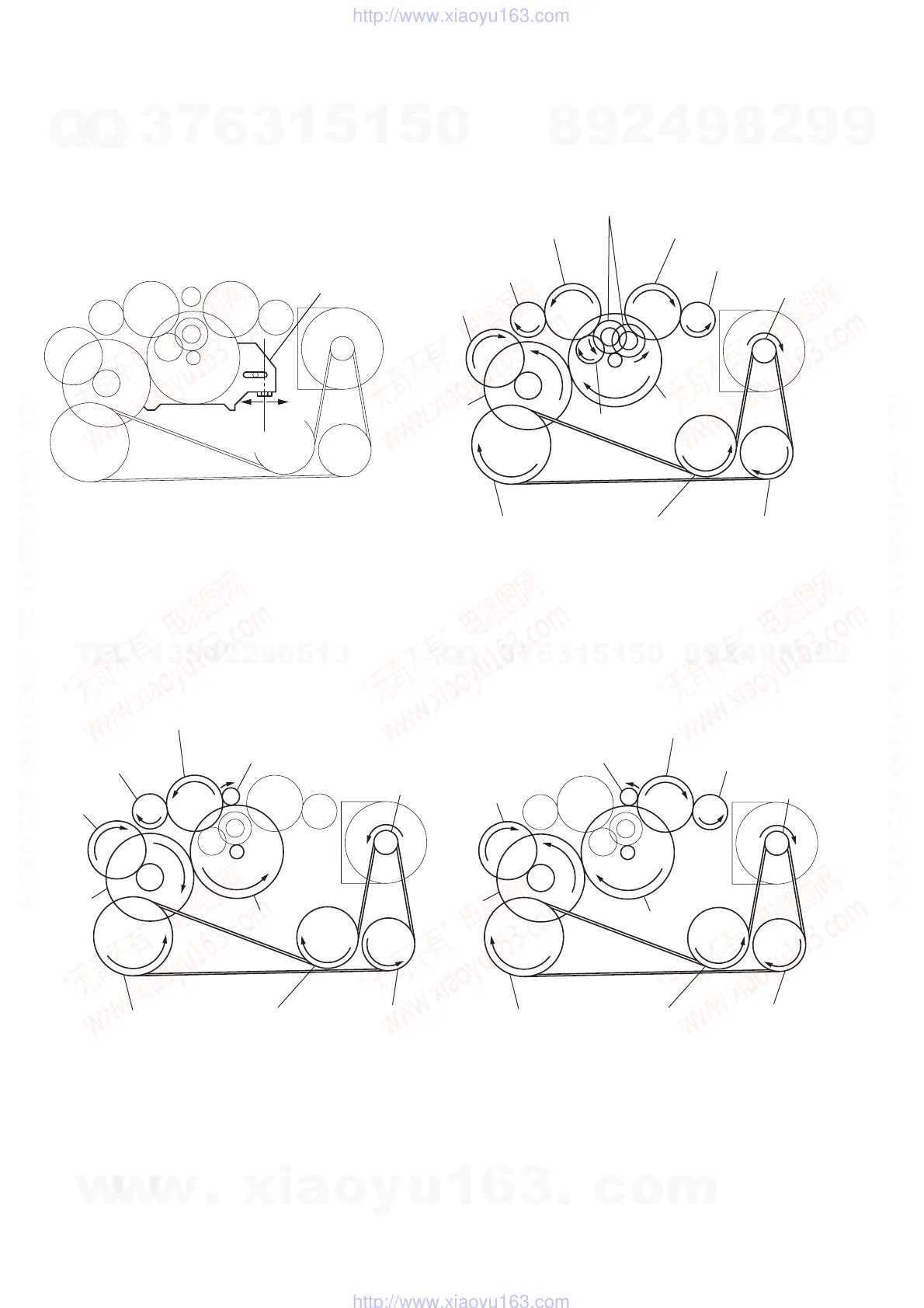

SLIDER (NRA) Rotation system
Rotation system during PLAY
Rotation system during FF Rotation system during REW
slider (NRA)
side F
side R
center
insert flywheel (N)
insert flywheel (R)
reverse pulley
clutch assy (F)
g
ear (Y)
cam gear
gear (REEL)
(T side)
motor pulley
idler (A) gear (T side)
gear (FR)
(FF: left side)
insert flywheel (N)
insert flywheel (R)
reverse pulley
clutch assy (F)
gear (Y)
cam gear
gear (REEL) (T side)
motor pulle
y
idler (A) gear (T side)
gear (NR)
(FWD: left side
REW: right side)
idler (B) gear
idler (A) gear (S side)
gear (REEL) (S side)
insert flywheel (N)
insert flywheel (R)
reverse pulley
clutch assy (F)
gear (Y)
cam gear
motor pulley
gear (FR)
(REW: right side)
idler (A) gear (S side)
gear (REEL) (S side)
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Sony WM-EX527 Specifications

General

Brand	Sony
Model	WM-EX527
Category	Cassette Player
Language	English
