19
WM-EX621
NOTE:
-XX, -X mean standardized parts, so they may
have some differences from the original one.
Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
SECTION 7
EXPLODED VIEWS
When indicating parts by reference number,
please include the board name.
Abbreviation
FR : French model
EE : East European model
CH : Chinese model
HK : Hong Kong model
KR : Korean model
JE : Tourist model
The mechanical parts with no reference number
in the exploded views are not supplied.
Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . (RED)
Parts of Color Cabinet’s Color

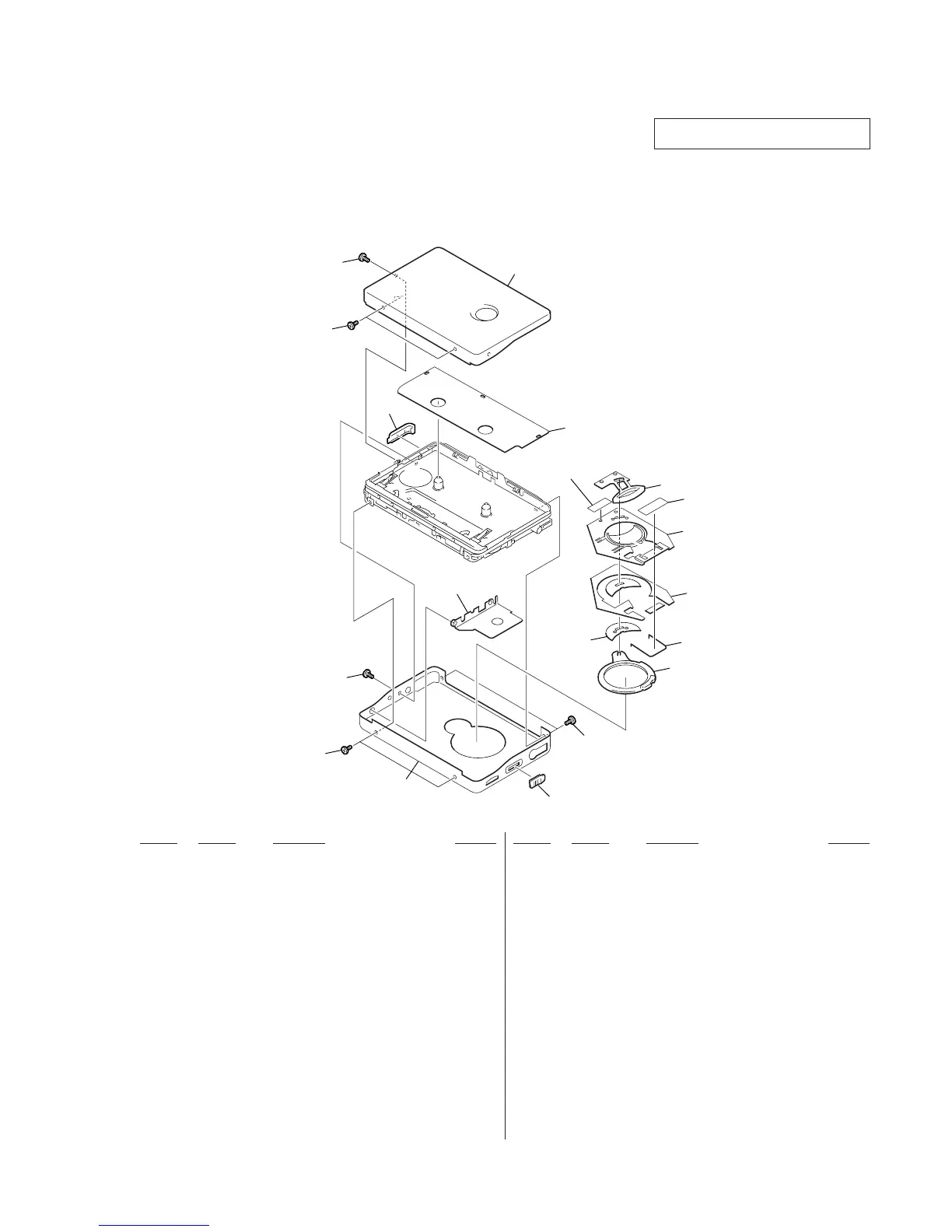

7-1. CABINET BLOCK
3
3
1
3
11
7
9
8
10
12
6
5
4
2
15
13
14
17
16
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 3-029-230-01 KNOB (HOLD)
2 3-233-763-01 CASE (SILVER)
2 3-233-763-11 CASE (BLUE)
2 3-233-763-21 CASE (ORANGE)
3 3-225-996-11 SCREW (M1.4)(EG),PRECISION PAN
4 3-233-978-01 PLATE, ORNAMENTAL
5 3-233-976-01 BUTTON (REW.FF)
6 3-233-979-01 SPRING, CLICK
7 3-234-098-01 BASE (SILVER)
7 3-234-098-11 BASE (BLUE)
7 3-234-098-21 BASE (ORANGE)
8 3-233-977-01 SHEET (BUTTON), ADHESIVE
9 3-233-975-01 BUTTON (PLAY)
10 3-234-092-01 BUTTON (STOP)
11 3-233-980-01 LID, BATTERY CASE (SILVER)
11 3-233-980-11 LID, BATTERY CASE (BLUE)
11 3-233-980-21 LID, BATTERY CASE (ORANGE)
12 3-234-140-01 COVER, MD (JEW)
12 3-234-140-11 COVER, MD (AEP,EE,FR,UK)
12 3-234-140-21 COVER, MD (CH,HK,KR)
13 3-225-996-09 SCREW (M1.4)(EG),PRECISION PAN
14 3-704-197-11 SCREW (P1.4X2.0)
15 X-3380-988-1 CASSETTE ASSY, LID (SILVER)
(AEP,CH,EE,FR,HK,JEW,UK)
15 X-3380-989-1 CASSETTE ASSY, LID (ORANGE)
(AEP,CH,EE,FR,HK,JEW,UK)
15 X-3380-990-1 CASSETTE ASSY, LID (BLUE)
(AEP,CH,EE,FR,HK,JEW,UK)
15 X-3381-250-1 CASSETTE ASSY, LID (SILVER) (KR)
15 X-3381-251-1 CASSETTE ASSY, LID (ORANGE) (KR)
15 X-3381-252-1 CASSETTE ASSY, LID (BLUE) (KR)
16 3-233-977-01 SHEET (BUTTON), ADHESIVE
17 3-939-581-01 CUSHION
