Sony WM-EX621 - Mechanism Component Disassembly

WM-EX621
8

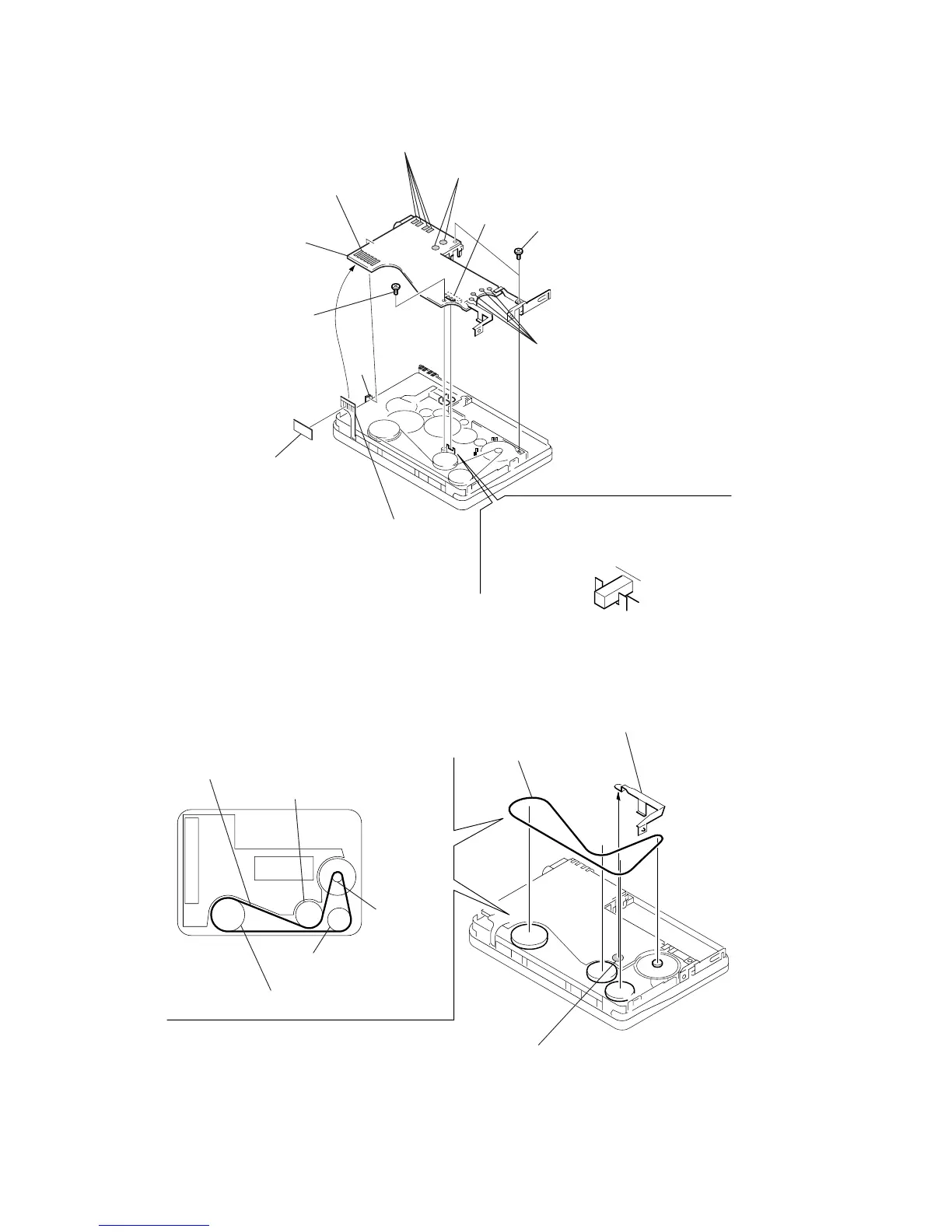

3-2. MAIN BOARD
3-3. BELT (F4)
SLIDER
Note : When assembling the MAIN board,
align the slider with the position of S701.
5 Remove soldering (four points)
from motor.
4 Remove soldering (two points)
from plunger solenoid.
2 Remove soldering (six points)
from the head flexible boards.
8 MAIN board
Note : Be careful of the claw.
7 Screw
(M1.4)
Claw
Head flexible board
1 Shielded sheet
3 Remove soldering (four points)
from the leaf switch.
S701
6 Two screws
(M1.4)
3 Belt (F4)
Motor
Pulley
Insert Flywheel
(R)
Insert Frywheel (N)
Pulley (Reverse)
2 Terminal board
(Battery
# )
1 Remove soldering from
the battery terminal board.
Belt (F4)
