WM-EX621
7
SECTION 3
DISASSEMBLY

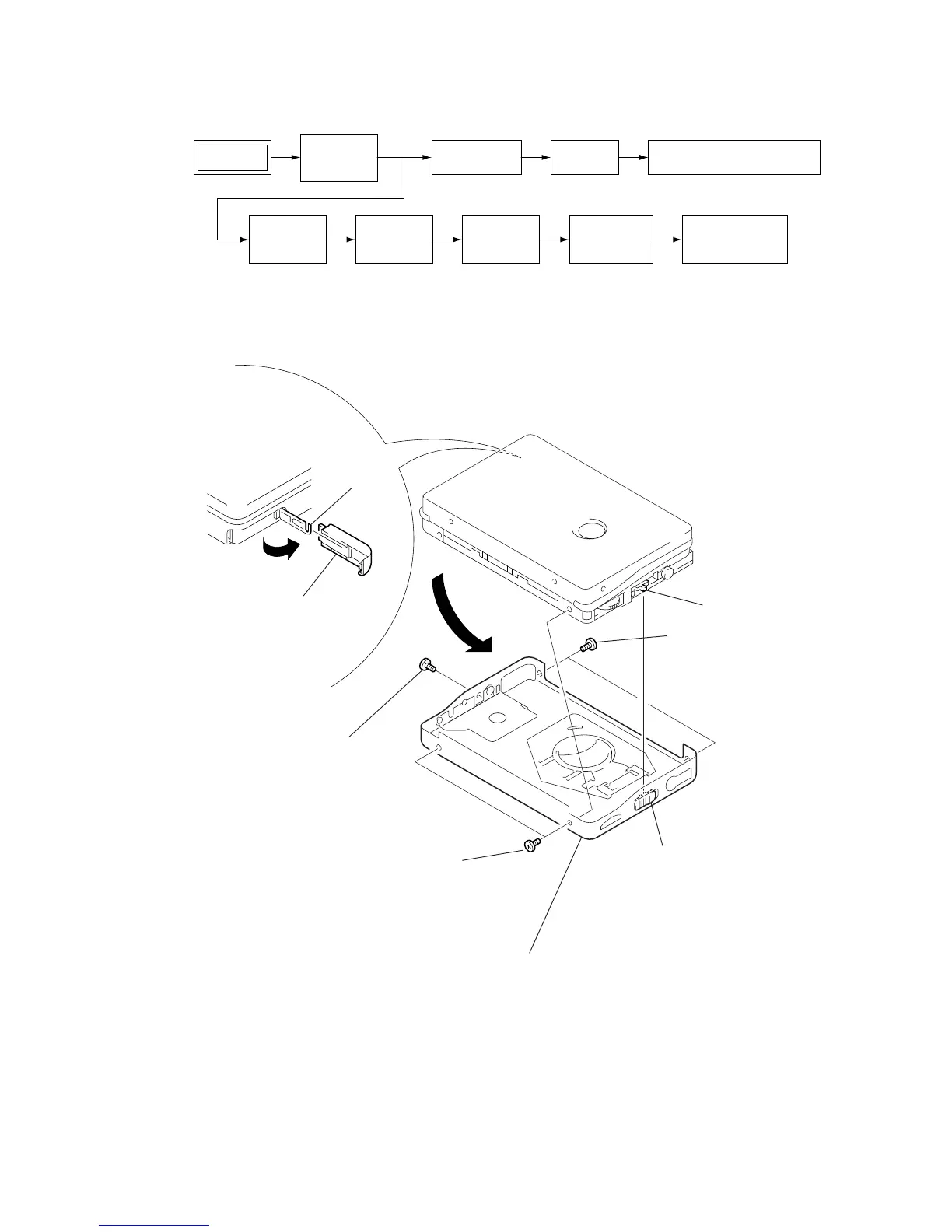

Note : Follow the disassembly procedure as shown in the flow chart below.
3-1. CASE SUB ASSY
Note : Follow the disassembly procedure in the numerical order given.
1 Lid,battery case
2 Screw
(M1.4
× 2.5)
3 Two screws
(M1.4
× 2.5)
4 Two screws
(M1.4
× 2.5)
5 Remove the case sub assy
in the direction of the arrow.
Claw
S707
Knob (HOLD)
Note : When assembling the case
sub assy,align the Knob (HOLD
)
with the position of S707.
Case sub
assy
Lid assy,
cassette
Ornament,
reel
Belt (F4)
Holder (FS)
assy
MAIN board
Head, magnetic
(HP901)
Lever (N)/(R)
assy, pinch
Motor (Capstan/Reel) (M901)
Set
