20
WM-EX621

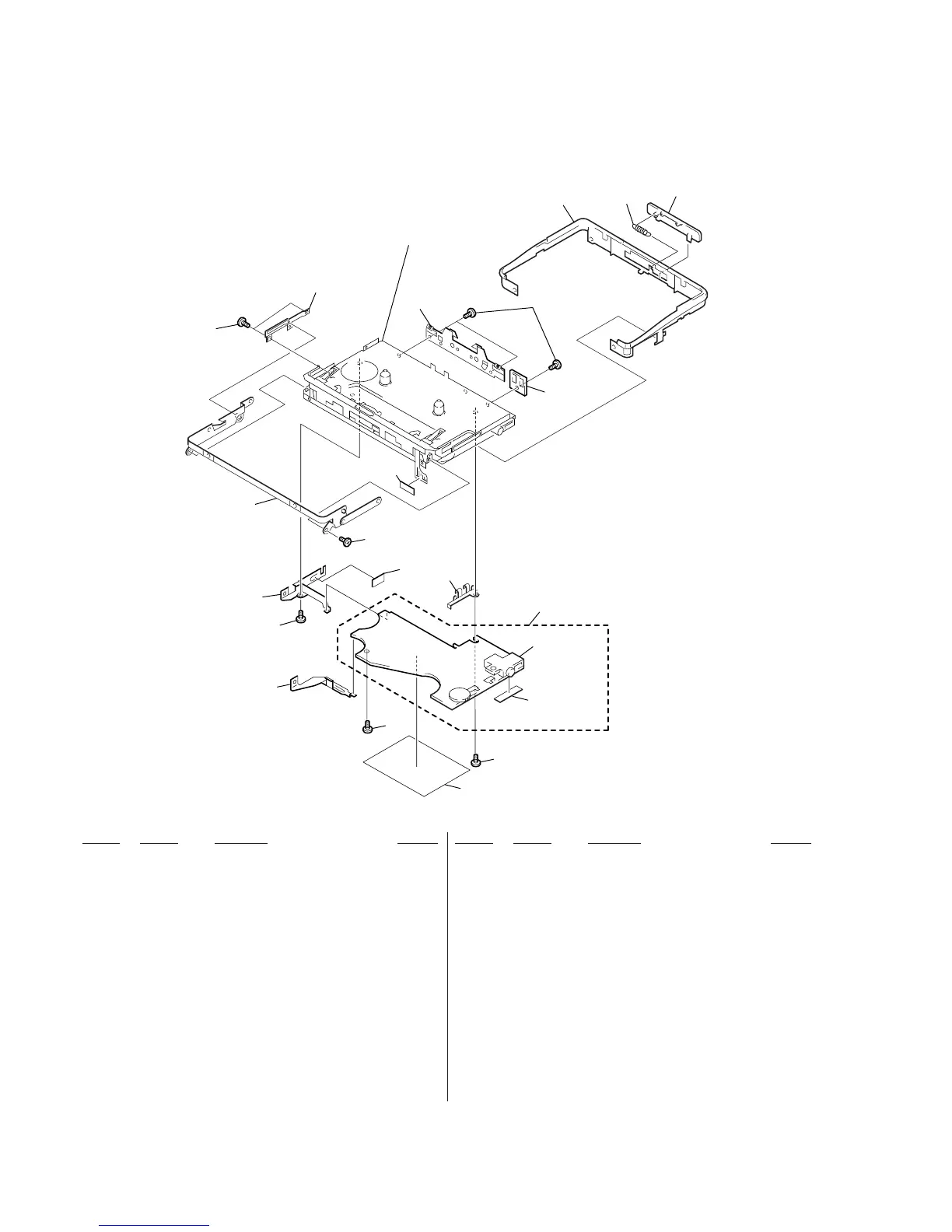

7-2. MAIN BOARD BLOCK
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51 3-375-114-41 SCREW
* 52 A-3021-537-A MAIN PC BOARD ASSY
(AEP,CH,EE,HK,JEW,KR,UK)
* 52 A-3021-538-A MAIN PC BOARD ASSY (FR)
53 3-038-056-01 TERMINAL BOARD (MINUS)
54 3-031-460-01 SHEET (BT)
55 3-029-213-01 TERMINAL BOARD, BATTERY
56 X-3377-726-1 TERMINAL BOARD ASSY
57 3-365-630-41 SCREW (M1.4)
58 X-3377-719-1 BRACKET (CASSETTE) ASSY
59 3-309-595-11 SHEET, INSULATING, PACK
60 3-939-590-05 SCREW (IB LOCK)
61 3-038-054-01 LEVER (B), LOCK
62 3-389-523-02 SCREW (IB LOCK)
63 3-223-827-31 ORNAMENT,REEL (SILVER)
63 3-223-827-41 ORNAMENT,REEL (BLUE)
63 3-223-827-51 ORNAMENT,REEL (ORANGE)
64 3-029-220-11 SPRING, TENSION
65 3-222-732-21 KNOB (OPEN) (SILVER)
65 3-222-732-31 KNOB (OPEN) (BLUE)
65 3-222-732-41 KNOB (OPEN) (ORANGE)
66 X-3377-717-1 BRACKET ASSY
67 3-345-648-71 SCREW (M1.4), TOOTHED LOCK
68 3-023-323-01 PAPER (A), SHIELD
69 3-238-028-01 SHEET,PWB
S901 1-762-553-11 SWITCH, LEAF (TAPE DETECT/ATS)
55
51
56
57
59
58
53
60
61
63
66
65
64
52
68
62
54
51
67
S901
not
supplied
MT-WMEX610-162
69
To Next Page
